11BGP0910D048 – MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN

Q: What coil voltage does this contactor require?

The contactor operates with a 48V DC coil.

Q: What current rating does the contactor support?

The contactor supports an IEC AC-3 operating current of 9A and is suitable for motors up to approximately 4 kW at 400V AC.

Q: Does this contactor include auxiliary contacts?

Yes, the Lovato 11BGP0910D048 includes one built-in normally open auxiliary contact.

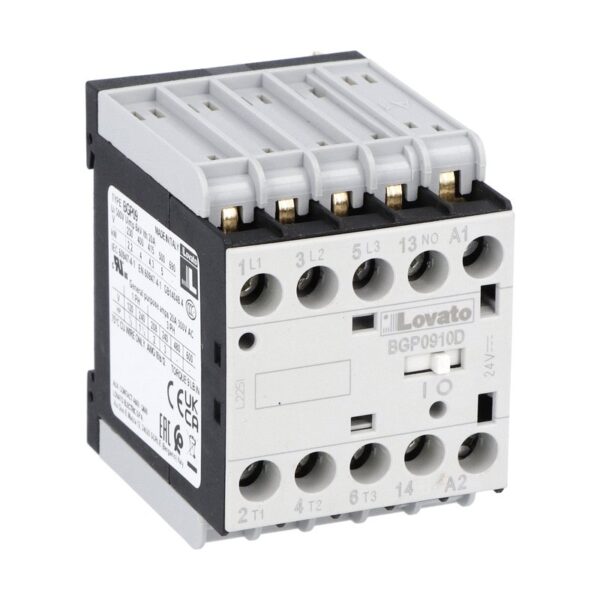

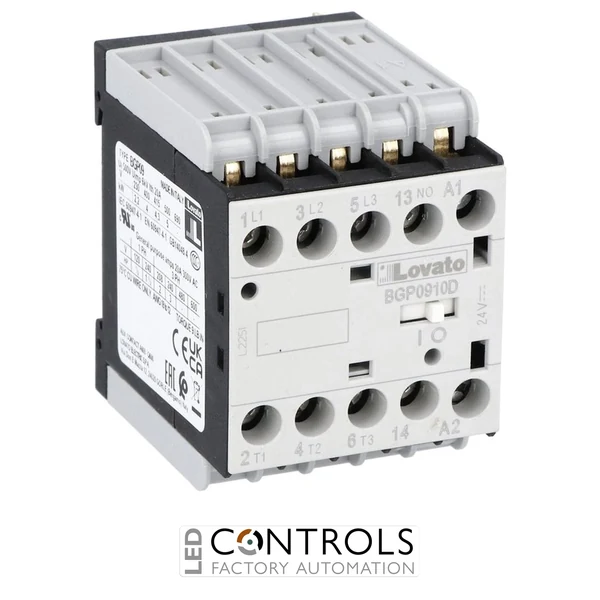

Lovato 11BGP0910D048 three-pole miniature contactor with 48 V DC coil, 9 A AC3 operational current and integrated 1NO auxiliary contact for industrial motor control and automation systems.

SKU: 11BGP0910D048Alt SKU: BGP0910D048MPN: 11BGP0910D048

List Price £71.73 ex VAT

Your Price (ex VAT)

£71.73

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £71.73

Trade pricing is personalised to your account

Manufacturer Lead Time

£71.73

Why Choose the Lovato 11BGP0910D048 Mini Contactor?

The Lovato 11BGP0910D048 is a compact and reliable three-pole mini contactor designed for efficient switching and control of motors and electrical loads in industrial automation, machinery and electrical control systems. As part of the Lovato BG series contactors, it provides dependable switching performance with a compact design suitable for modern industrial applications.

This contactor features a 48V DC coil, three main power contacts and one normally open auxiliary contact. The rear PCB solder pin connection, compact construction and flexible mounting options make it suitable for OEM machinery, automation systems and industrial control panels requiring reliable DC coil operation.

With an IEC AC-3 operating current rating of 9A and a motor switching capability of approximately 4 kW at 400V AC, the Lovato 11BGP0910D048 is ideal for controlling small motors, pumps, fans, conveyors and industrial equipment where dependable switching performance is required.

Key Advantages

Compact three-pole mini contactor for industrial switching applications.
48V DC coil voltage suitable for automation control circuits.
9A AC-3 operating current rating for motor control applications.
Integrated 1NO auxiliary contact for control and signalling functions.
Rear PCB solder pin connection for compact panel integration.
DIN rail and screw mounting compatibility for flexible installation.

Key Features

Lovato BG series mini contactor.
Three main power poles.
48V DC operating coil.
9A IEC AC-3 rated current at 400V AC.
20A IEC AC-1 thermal current rating.
One built-in normally open auxiliary contact.
Rear PCB solder pin terminal connection.
Suitable for DIN rail 35 mm and screw mounting.

Reliable Switching for Industrial Control Systems

Mini contactors such as the Lovato 11BGP0910D048 provide dependable switching control for motors and electrical loads in industrial environments. They allow automation systems to safely manage equipment operation while maintaining a compact electrical panel footprint.

The Lovato BG series is designed for machine builders, OEM manufacturers and electrical engineers requiring compact switching devices with reliable performance, easy installation and compatibility with modern automation systems.

Typical Applications

Industrial motor control panels.
Automation machinery and OEM equipment.
Pumps and ventilation systems.
Small conveyors and material handling equipment.
Machine tools and production systems.
Industrial electrical switching applications.

Technical Specifications

Coil Voltage Range	42–48 V
Power	4 kW
Current	9 A
Voltage	48 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Miniature contactor
Number of poles	3
Main contact configuration	3NO
Auxiliary contact configuration	1NO
Rated operational current AC3	9 A
IEC thermal current AC1	20 A
Motor power at 400 V AC	4.0 kW
UL/CSA horsepower rating at 480 V	5 HP
Coil type	DC coil
Rated coil voltage	48 V DC
Rated insulation voltage	690 V
Mounting type	Screw / DIN rail 35 mm
Terminal type	Rear PCB solder pin
Operating temperature	-50 °C to +70 °C
Width	approx. 44 mm
Height	approx. 58 mm
Depth	approx. 57 mm
Weight	approx. 240 g
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
EAN	8013975145159
Poles	3-pole
Coil / Supply Voltage	48 V DC
Device Type	Mini contactor
Auxiliary Contacts	1NO
Coil Type	DC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BGP0910D048 used for?

The Lovato 11BGP0910D048 is a three-pole mini contactor used for switching and controlling motors and electrical loads in industrial automation systems.

What coil voltage does this contactor require?

The contactor operates with a 48V DC coil.

What current rating does the contactor support?

The contactor supports an IEC AC-3 operating current of 9A and is suitable for motors up to approximately 4 kW at 400V AC.

Does this contactor include auxiliary contacts?

Yes, the Lovato 11BGP0910D048 includes one built-in normally open auxiliary contact.

Where can this mini contactor be installed?

This contactor is designed for installation in electrical panels, automation cabinets and industrial control systems using DIN rail or screw mounting.

Trusted for Industrial Automation Applications

Lovato BG series contactors are widely used in industrial control systems to provide reliable switching, compact installation and dependable motor management solutions for automation engineers and machine builders.

Coil Voltage Range	42–48 V
Power	4 kW
Current	9 A
Voltage	48 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Miniature contactor
Number of poles	3
Main contact configuration	3NO
Auxiliary contact configuration	1NO
Rated operational current AC3	9 A
IEC thermal current AC1	20 A
Motor power at 400 V AC	4.0 kW
UL/CSA horsepower rating at 480 V	5 HP
Coil type	DC coil
Rated coil voltage	48 V DC
Rated insulation voltage	690 V
Mounting type	Screw / DIN rail 35 mm
Terminal type	Rear PCB solder pin
Operating temperature	-50 °C to +70 °C
Width	approx. 44 mm
Height	approx. 58 mm
Depth	approx. 57 mm
Weight	approx. 240 g
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
EAN	8013975145159
Poles	3-pole
Coil / Supply Voltage	48 V DC
Device Type	Mini contactor
Auxiliary Contacts	1NO
Coil Type	DC
Current AC-1	20 A
