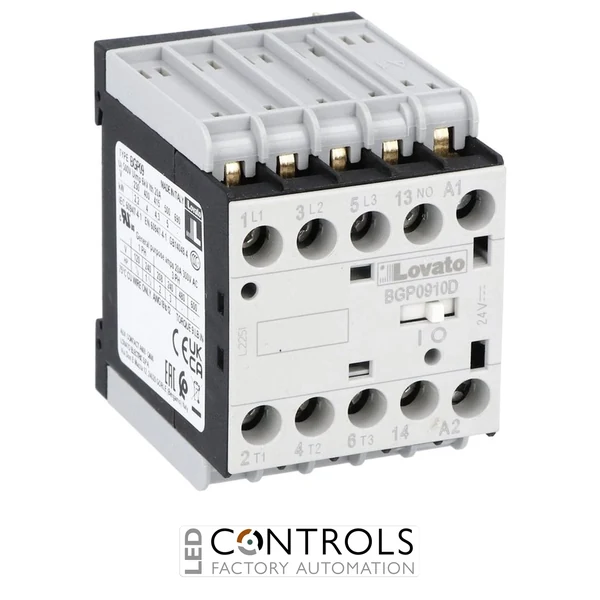

11BGP0910D125 – MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN

Q: What coil voltage does this contactor use?

This contactor uses a 125V DC coil for operation in compatible industrial control circuits.

Q: What current rating does the Lovato 11BGP0910D125 support?

The contactor provides an IEC AC-3 operating current rating of 9A at 400V and an AC-1 thermal current rating of 20A.

Q: Does this contactor include auxiliary contacts?

Yes, the Lovato 11BGP0910D125 includes an integrated 1NO auxiliary contact for control and signalling applications.

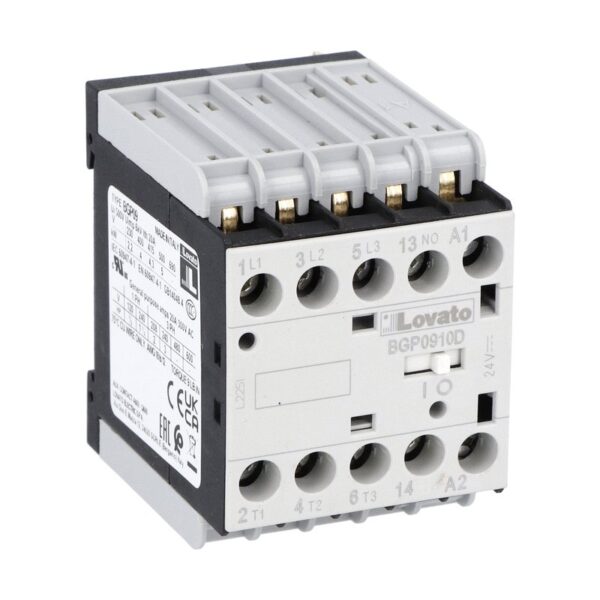

Lovato 11BGP0910D125 three-pole miniature contactor with 125 V DC coil, 9 A AC3 operational current and integrated 1NO auxiliary contact for industrial motor control and automation systems.

SKU: 11BGP0910D125Alt SKU: BGP0910D125MPN: 11BGP0910D125

List Price £71.73 ex VAT

Your Price (ex VAT)

£71.73

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £71.73

Trade pricing is personalised to your account

Manufacturer Lead Time

£71.73

Why Choose the Lovato 11BGP0910D125 Contactor?

The Lovato 11BGP0910D125 is a compact and reliable three-pole industrial contactor designed for switching and controlling motors and electrical loads in industrial automation, machinery and control panel applications. As part of the Lovato BGP series contactors, it provides dependable electromagnetic switching performance, long operating life and easy integration into modern electrical systems.

This contactor features a 125V DC coil, a 9A AC-3 rated operating current and an integrated 1NO auxiliary contact. It is designed for efficient motor control applications where compact dimensions, reliable switching and flexible installation options are required.

With its rear PCB solder pin connection, compact minicontactor format and compatibility with screw or 35mm DIN rail mounting, the Lovato 11BGP0910D125 is suitable for OEM machinery, automation cabinets and industrial control systems requiring dependable contactor technology.

Key Advantages

Compact three-pole contactor for industrial switching applications.
125V DC coil voltage for industrial automation control circuits.
9A AC-3 rated current at 400V suitable for motor switching duties.
Integrated 1NO auxiliary contact for signalling and control feedback.
Rear PCB solder pin connection for compact equipment designs.
Reliable electrical performance with long mechanical and operational life.

Key Features

Lovato BGP series industrial minicontactor.
Three main poles for three-phase load switching.
125V DC electromagnetic coil.
9A IEC AC-3 operating current at 400V.
20A IEC AC-1 thermal current rating.
Built-in 1 normally open auxiliary contact.
Rear PCB solder pin termination.
Screw and 35mm DIN rail mounting capability.
Suitable for industrial motor starters and automation equipment.

Reliable Switching for Industrial Control Systems

Industrial contactors such as the Lovato 11BGP0910D125 provide efficient control of electrical circuits by using an electromagnetic coil to operate power contacts. This enables reliable switching of motors, machines and automation equipment.

The Lovato BGP series combines compact dimensions with robust switching capability, making it suitable for machine builders, panel manufacturers and industrial automation engineers who require dependable components for motor control and electrical distribution systems.

Typical Applications

Industrial motor starters and control panels.
OEM machinery and automation equipment.
Conveyor and material handling systems.
Pumps, fans and mechanical drive applications.
Manufacturing and processing machinery.
Electrical cabinets and industrial automation systems.

Technical Specifications

Coil Voltage Range	100–130 V
Power	4 kW
Current	9 A
Voltage	125 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Miniature contactor
Number of poles	3
Main contact configuration	3NO
Auxiliary contact configuration	1NO
Rated operational current AC3	9 A
IEC thermal current AC1	20 A
Motor power at 400 V AC	4.0 kW
UL/CSA horsepower rating at 480 V	5 HP
Coil type	DC coil
Rated coil voltage	125 V DC
Rated insulation voltage	690 V
Mounting type	Screw / DIN rail 35 mm
Terminal type	Rear PCB solder pin
Operating temperature	-50 °C to +70 °C
Width	approx. 44 mm
Height	approx. 58 mm
Depth	approx. 57 mm
Weight	approx. 240 g
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
EAN	8013975145180
Poles	3-pole
Coil / Supply Voltage	125 V DC
Device Type	Mini contactor
Auxiliary Contacts	1NO
Coil Type	DC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BGP0910D125 used for?

The Lovato 11BGP0910D125 is a three-pole contactor used for switching motors and industrial electrical loads in automation and control systems.

What coil voltage does this contactor use?

This contactor uses a 125V DC coil for operation in compatible industrial control circuits.

What current rating does the Lovato 11BGP0910D125 support?

The contactor provides an IEC AC-3 operating current rating of 9A at 400V and an AC-1 thermal current rating of 20A.

Does this contactor include auxiliary contacts?

Yes, the Lovato 11BGP0910D125 includes an integrated 1NO auxiliary contact for control and signalling applications.

How is the contactor installed?

The contactor supports screw mounting and 35mm DIN rail mounting options, with rear PCB solder pin connections.

Trusted by Industrial Automation Professionals

Lovato contactors are widely used in industrial automation, machinery and electrical control applications where reliable switching performance, compact design and long service life are essential.

Coil Voltage Range	100–130 V
Power	4 kW
Current	9 A
Voltage	125 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Miniature contactor
Number of poles	3
Main contact configuration	3NO
Auxiliary contact configuration	1NO
Rated operational current AC3	9 A
IEC thermal current AC1	20 A
Motor power at 400 V AC	4.0 kW
UL/CSA horsepower rating at 480 V	5 HP
Coil type	DC coil
Rated coil voltage	125 V DC
Rated insulation voltage	690 V
Mounting type	Screw / DIN rail 35 mm
Terminal type	Rear PCB solder pin
Operating temperature	-50 °C to +70 °C
Width	approx. 44 mm
Height	approx. 58 mm
Depth	approx. 57 mm
Weight	approx. 240 g
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
EAN	8013975145180
Poles	3-pole
Coil / Supply Voltage	125 V DC
Device Type	Mini contactor
Auxiliary Contacts	1NO
Coil Type	DC
Current AC-1	20 A
