11BGP09T4A048 – MINICONTACTOR 4P NO 20A AC1 REAR PIN

Q: What coil voltage does this contactor require?

The contactor operates using a 48V AC 50/60Hz control coil.

Q: How many poles does the contactor have?

This model features four normally open (4NO) main poles.

Q: What motor size can it control?

It is rated for motors up to approximately 4kW at 400V AC-3.

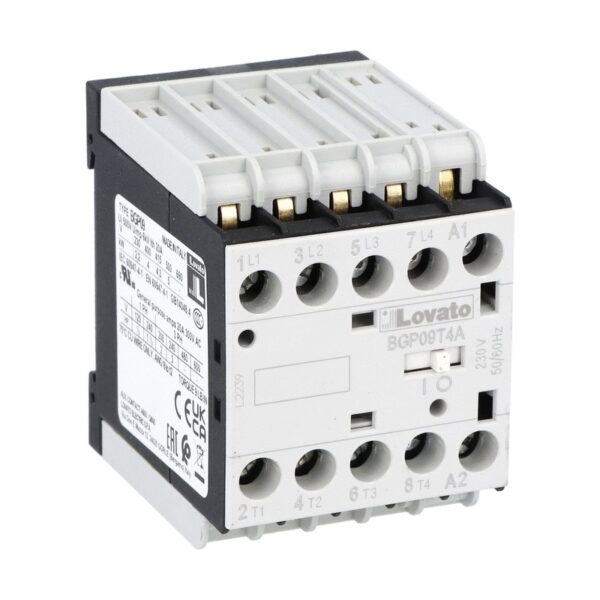

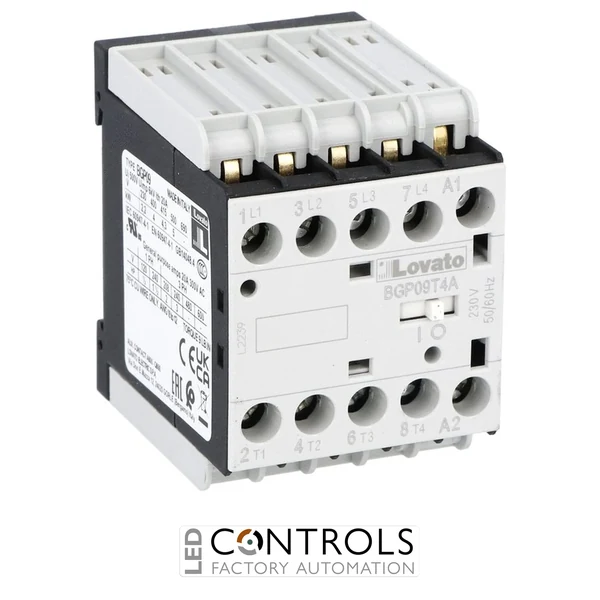

Lovato 11BGP09T4A048 four-pole miniature contactor with 48 V AC coil, 4NO contacts and 9 A AC3 operational current for industrial motor control and automation systems.

SKU: 11BGP09T4A048Alt SKU: BGP09T4A048MPN: 11BGP09T4A048

List Price £55.81 ex VAT

Your Price (ex VAT)

£55.81

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £55.81

Trade pricing is personalised to your account

Manufacturer Lead Time

£55.81

Why Choose the Lovato 11BGP09T4A048 Contactor?

The Lovato 11BGP09T4A048 is a compact and dependable four-pole industrial contactor designed for switching and controlling electrical loads in industrial automation, machinery and control panel applications. As part of the Lovato BGP09 series, it delivers reliable switching performance, long mechanical life and easy integration into OEM and industrial equipment.

This contactor features a 48V AC coil (50/60Hz), 4 normally open (4NO) main contacts and an IEC AC-3 operating current of 9A at 400V. Its rear PCB solder pin connection makes it particularly suitable for compact control assemblies and machine manufacturing applications.

Designed for reliable switching of motors and industrial loads, the Lovato 11BGP09T4A048 supports screw or 35mm DIN rail mounting, providing flexibility for new installations and equipment upgrades.

Key Advantages

Compact four-pole industrial contactor.
48V AC 50/60Hz coil for industrial control circuits.
9A AC-3 switching capacity for motor applications.
20A AC-1 thermal current for resistive loads.
Rear PCB solder pin terminals for compact equipment.
Suitable for screw or DIN rail mounting.

Key Features

Lovato BGP09 series four-pole minicontactor.
4 normally open (4NO) main contacts.
48V AC coil, 50/60Hz.
9A IEC AC-3 operating current at 400V.
20A IEC AC-1 conventional thermal current.
4kW motor rating at 400V AC-3.
Rear PCB solder pin electrical connection.
Screw or 35mm DIN rail mounting.
Designed for industrial motor control and automation.

Reliable Switching for Industrial Automation

Industrial contactors like the Lovato 11BGP09T4A048 use an electromagnetic coil to safely switch power circuits controlling motors, heaters and industrial loads. Their robust construction provides dependable operation while reducing wear on manual switching devices.

The Lovato BGP09 series is widely used by machine builders and panel manufacturers thanks to its compact size, reliable switching characteristics and straightforward installation.

Typical Applications

Industrial motor starters.
Machine automation systems.
Packaging equipment.
Conveyor systems.
Pumps and ventilation equipment.
Industrial electrical control panels.

Technical Specifications

Coil Voltage Range	42–48 V
Power	4 kW
Current	9 A
Voltage	48 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole miniature contactor
Number of poles	4
Main contact configuration	4NO
Rated operational current AC3	9 A
IEC thermal current AC1	20 A
Motor power at 400 V AC	4.0 kW
UL/CSA horsepower rating at 480 V	5 HP
Coil type	AC coil 50/60 Hz
Rated coil voltage	48 V AC
Rated insulation voltage	500 V
Impulse withstand voltage	6 kV
Mounting type	Screw / DIN rail 35 mm
Terminal type	Rear PCB solder pin
Operating temperature	-50 °C to +70 °C
Width	approx. 44 mm
Height	approx. 58 mm
Depth	approx. 57 mm
Weight	approx. 186 g
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
EAN	8013975145227
Poles	4-pole
Coil / Supply Voltage	48 V AC
Device Type	Mini contactor
Coil Type	AC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BGP09T4A048 used for?

It is used for switching motors and industrial electrical loads in automation systems and machinery.

What coil voltage does this contactor require?

The contactor operates using a 48V AC 50/60Hz control coil.

How many poles does the contactor have?

This model features four normally open (4NO) main poles.

What motor size can it control?

It is rated for motors up to approximately 4kW at 400V AC-3.

How is the contactor mounted?

The contactor can be installed using screw fixing or a standard 35mm DIN rail.

Trusted by Industrial Automation Professionals

Lovato BGP series contactors are trusted by machine builders and industrial automation engineers for reliable switching performance, compact construction and long operational life.

Coil Voltage Range	42–48 V
Power	4 kW
Current	9 A
Voltage	48 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole miniature contactor
Number of poles	4
Main contact configuration	4NO
Rated operational current AC3	9 A
IEC thermal current AC1	20 A
Motor power at 400 V AC	4.0 kW
UL/CSA horsepower rating at 480 V	5 HP
Coil type	AC coil 50/60 Hz
Rated coil voltage	48 V AC
Rated insulation voltage	500 V
Impulse withstand voltage	6 kV
Mounting type	Screw / DIN rail 35 mm
Terminal type	Rear PCB solder pin
Operating temperature	-50 °C to +70 °C
Width	approx. 44 mm
Height	approx. 58 mm
Depth	approx. 57 mm
Weight	approx. 186 g
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
EAN	8013975145227
Poles	4-pole
Coil / Supply Voltage	48 V AC
Device Type	Mini contactor
Coil Type	AC
Current AC-1	20 A
