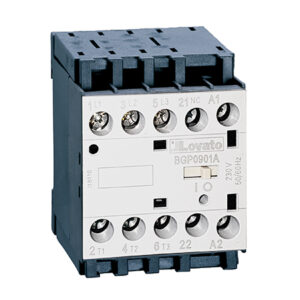

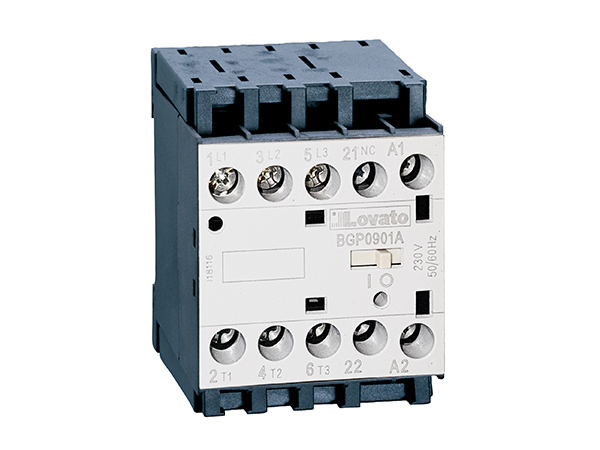

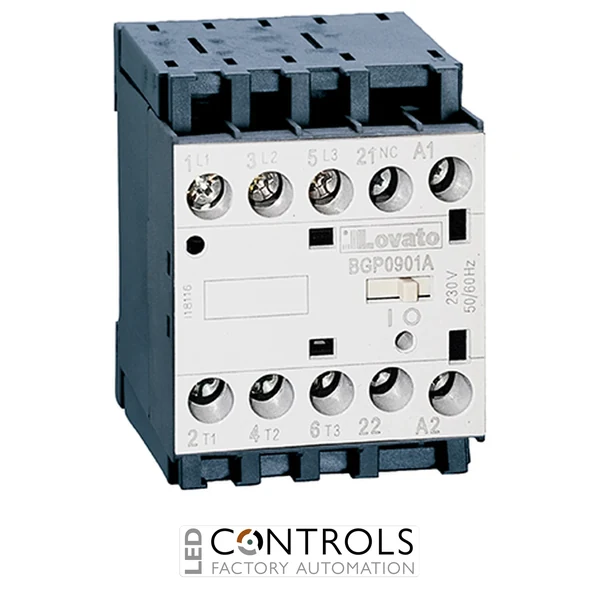

Lovato 11BGP09T4D024 four-pole miniature contactor with 24 V DC coil, 4NO contacts and 9 A AC3 operational current for industrial motor control and automation systems.
£73.26
The Lovato 11BGP09T4D024 is a compact and reliable four-pole industrial contactor designed for switching and controlling electrical loads in industrial automation, machinery and control panel applications. As part of the Lovato BGP09 series contactors, it provides dependable electromagnetic switching performance, long electrical life and straightforward integration into modern industrial systems.
This contactor features a 24V DC coil, four normally open main contacts, an IEC AC-3 operating current rating of 9A at 400V and a rear PCB solder pin connection design. It is suitable for motor control, automation equipment and industrial switching applications where compact dimensions and reliable performance are required.
With its compact minicontactor format, rear PCB solder pin terminals and compatibility with screw or 35mm DIN rail mounting, the Lovato 11BGP09T4D024 is ideal for OEM machinery, automation panels and electrical control systems.
Industrial contactors such as the Lovato 11BGP09T4D024 provide efficient switching of electrical circuits by using an electromagnetic coil to control power contacts. This enables reliable operation of motors, machinery and automation equipment.
The Lovato BGP09 series combines compact dimensions with robust electrical performance, making it suitable for machine builders, panel manufacturers and industrial automation engineers requiring dependable switching components.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 24 V |
| Phase | Three Phase |
| Series | BG Mini Contactors |
| Product type | Four-pole miniature contactor |
| Number of poles | 4 |
| Main contact configuration | 4NO |
| Rated operational current AC3 | 9 A |
| IEC thermal current AC1 | 20 A |
| Motor power at 400 V AC | 4.0 kW |
| UL/CSA horsepower rating at 480 V | 5 HP |
| Coil type | DC coil |
| Rated coil voltage | 24 V DC |
| Rated insulation voltage | 690 V |
| Mounting type | Screw / DIN rail 35 mm |
| Terminal type | Rear PCB solder pin |
| Operating temperature | -50 °C to +70 °C |
| Width | 44 mm |
| Height | 58 mm |
| Depth | 57 mm |
| Weight | approx. 242 g |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 |
| EAN | 8013975145364 |
The Lovato 11BGP09T4D024 is a four-pole contactor used for switching motors and industrial electrical loads in automation and control systems.
This contactor uses a 24V DC coil for operation in compatible industrial control circuits.
The contactor provides an IEC AC-3 operating current rating of 9A at 400V and an AC-1 thermal current rating of 20A.
The Lovato 11BGP09T4D024 features four normally open main poles for multi-circuit switching applications.
The contactor supports screw mounting and 35mm DIN rail mounting options with rear PCB solder pin connections.
Lovato BGP09 contactors are widely used in industrial automation, machinery and electrical control applications where reliable switching performance, compact design and long service life are essential.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGP09T4D024 Four Pole Contactor 24V DC Coil 9A", "sku": "11BGP09T4D024", "mpn": "11BGP09T4D024", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Contactors", "description": "Lovato 11BGP09T4D024 four pole contactor with 24V DC coil, 9A AC-3 rating, 4NO contacts and rear PCB solder pin connection for industrial automation and motor control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Number of poles", "value": "4" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "24V DC" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "4NO" }, { "@type": "PropertyValue", "name": "AC-3 operating current", "value": "9A at 400V" }, { "@type": "PropertyValue", "name": "Mounting", "value": "Screw / DIN rail 35mm" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGP09T4D024 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGP09T4D024 is a four-pole contactor used for switching motors and industrial electrical loads in automation and control systems." } }, { "@type": "Question", "name": "What coil voltage does this contactor use?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor uses a 24V DC coil for operation in compatible industrial control circuits." } }, { "@type": "Question", "name": "What current rating does the Lovato 11BGP09T4D024 support?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor provides an IEC AC-3 operating current rating of 9A at 400V and an AC-1 thermal current rating of 20A." } }, { "@type": "Question", "name": "How many poles does this contactor have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGP09T4D024 features four normally open main poles for multi-circuit switching applications." } }, { "@type": "Question", "name": "How is the contactor installed?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports screw mounting and 35mm DIN rail mounting options with rear PCB solder pin connections." } } ] }
