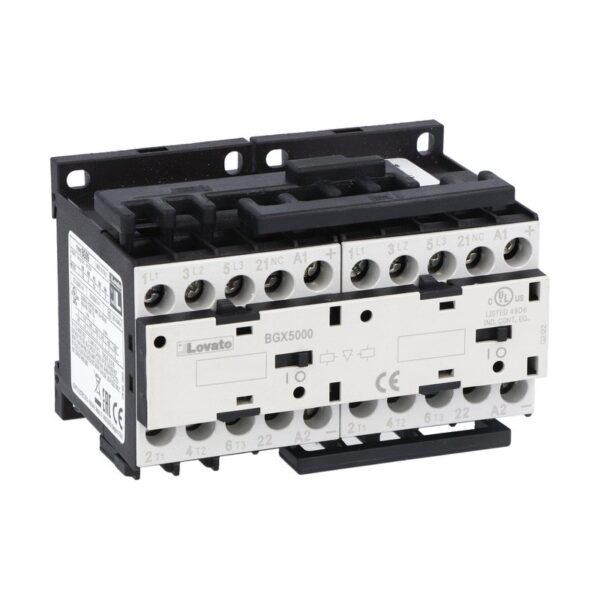

Lovato 11BGR0901D060 is an open-frame reversing contactor assembly with a 9 A AC-3 rating, 4 kW motor rating at 400 V, 60 V DC coils, external interlock and power and auxiliary wiring.
£282.30
The Lovato 11BGR0901D060 is an open-frame reversing contactor assembly designed to control the forward and reverse rotation of compatible electric motors. It has a maximum operating current of 9 A at voltages up to 440 V and uses 60 V DC coils.
This coordinated assembly includes an external interlock together with power and auxiliary wiring. The interlock prevents both contactors from closing simultaneously, while the prewired configuration helps simplify installation within industrial motor-control panels.
Rated for 9 A in AC-3 duty at up to 440 V and 4 kW at 400 V, the 11BGR0901D060 is suitable for reversing three-phase motors in machinery, conveyors and automated equipment. Its normally closed auxiliary contacts support control and interlocking functions.
A reversing contactor assembly changes a three-phase motor’s direction by switching the phase sequence supplied to the motor. The interlocking arrangement prevents the forward and reverse contactors from being energised together, protecting the switching circuit from an invalid operating state.
The Lovato 11BGR0901D060 combines matched contactors, interlocking and preinstalled power and auxiliary wiring in one assembly. This reduces panel-building work and provides a compact solution for applications requiring controlled bidirectional motor operation from a 60 V DC control circuit.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGR09 |
| Model | 11BGR0901D060 |
| Product type | Reversing contactor assembly |
| Configuration | Open frame with external interlock, power wiring and auxiliary wiring |
| Coil type | DC |
| Coil voltage | 60 V DC |
| Maximum operating current at up to 440 V | 9 A |
| AC-3 operational current at up to 440 V and 55 °C | 9 A |
| AC-3 operational power at 230 V | 2.2 kW |
| AC-3 operational power at 400 V | 4 kW |
| AC-3 operational power at 415 V | 4.3 kW |
| AC-3 operational power at 440 V | 4.5 kW |
| AC-3 operational power at 500 V | 5 kW |
| AC-3 operational power at 690 V | 5 kW |
| Built-in auxiliary contacts | 0 NO + 1 NC |
| UL/CSA three-phase motor rating at 440–480 V | 5 hp |
| Terminal type | Clamp screw |
The Lovato 11BGR0901D060 is used to control the forward and reverse rotation of compatible electric motors in industrial machinery and automation systems.
The assembly uses 60 V DC contactor coils.
The assembly is rated at 4 kW at 400 V in AC-3 duty, with a 9 A operational current rating.
Yes. It includes an external interlock that prevents the forward and reverse contactors from closing simultaneously.
Yes. The open-frame assembly is supplied with power and auxiliary wiring as part of its factory-coordinated configuration.
Lovato reversing contactor assemblies combine coordinated contactors, interlocking and preinstalled wiring to provide dependable bidirectional motor control for industrial machinery, automation equipment and electrical panels.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGR0901D060 Reversing Contactor Assembly 9 A 4 kW 60 V DC", "sku": "11BGR0901D060", "mpn": "11BGR0901D060", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Reversing Contactor Assemblies", "description": "Lovato 11BGR0901D060 is an open-frame reversing contactor assembly with a 9 A AC-3 rating, 4 kW motor rating at 400 V, 60 V DC coils, external interlock and power and auxiliary wiring.", "additionalProperty": [ { "@type": "PropertyValue", "name": "AC-3 operational current", "value": "9 A" }, { "@type": "PropertyValue", "name": "Motor power at 400 V", "value": "4 kW" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "60 V DC" }, { "@type": "PropertyValue", "name": "Interlock", "value": "External interlock" }, { "@type": "PropertyValue", "name": "Wiring", "value": "Power and auxiliary wiring included" }, { "@type": "PropertyValue", "name": "Built-in auxiliary contacts", "value": "0 NO + 1 NC" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGR0901D060 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGR0901D060 is used to control the forward and reverse rotation of compatible electric motors in industrial machinery and automation systems." } }, { "@type": "Question", "name": "What coil voltage does the 11BGR0901D060 require?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly uses 60 V DC contactor coils." } }, { "@type": "Question", "name": "What is the motor rating of this reversing contactor assembly?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly is rated at 4 kW at 400 V in AC-3 duty, with a 9 A operational current rating." } }, { "@type": "Question", "name": "Does the Lovato 11BGR0901D060 include an interlock?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. It includes an external interlock that prevents the forward and reverse contactors from closing simultaneously." } }, { "@type": "Question", "name": "Is the 11BGR0901D060 supplied with wiring?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The open-frame assembly is supplied with power and auxiliary wiring as part of its factory-coordinated configuration." } } ] }
