Why Choose the Lovato 11BGR0901D110 Reversing Contactor Assembly?

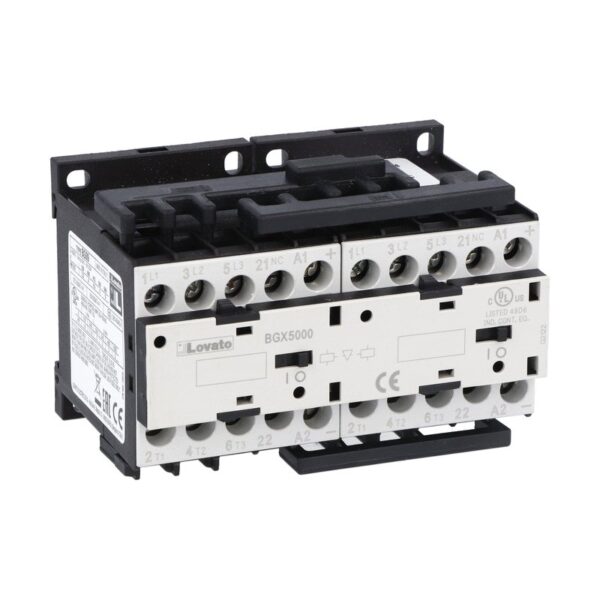

The Lovato 11BGR0901D110 is an open-frame reversing contactor assembly designed for forward and reverse control of electric motors in industrial machinery and automation systems. As part of the Lovato BGR09 series, it combines two contactors with an external interlock plus pre-installed power and auxiliary wiring.
This ready-assembled configuration simplifies installation by providing the essential switching and interlocking components required for reversing applications. The external interlock prevents conflicting contactor operation, while the integrated wiring reduces panel assembly work and helps ensure reliable directional motor control.
With an AC-3 operational current rating of 9 A at up to 440 V, a motor rating of 4 kW at 400 V and 110 V DC contactor coils, the 11BGR0901D110 is suited to compact industrial motor-control panels. Its clamp-screw terminals provide secure electrical connections.
Key Advantages
- Ready-assembled reversing contactor configuration for directional motor control.
- 9 A AC-3 operational current rating at up to 440 V.
- 4 kW motor rating at 400 V for three-phase applications.
- 110 V DC coils for compatible industrial control circuits.
- External interlock helps prevent simultaneous contactor operation.
- Supplied with power and auxiliary wiring to simplify panel assembly.
Key Features
- Lovato BGR09 reversing contactor series.
- 9 A maximum operating current at up to 440 V.
- 4 kW AC-3 rated operational power at 400 V.
- 110 V DC coil voltage.
- Open-frame construction for installation within suitable enclosures.
- External interlock with integrated power and auxiliary wiring.
- One built-in normally closed auxiliary contact.
- Clamp-screw terminals for dependable conductor termination.
Reliable Reversing Control for Industrial Motors
Reversing contactor assemblies change a motor’s direction of rotation by switching the phase sequence supplied to the motor. The interlocking arrangement helps prevent both contactors from closing simultaneously, supporting safe and dependable forward and reverse operation.
The 11BGR0901D110 is supplied as a wired open-frame assembly, reducing the number of separate components that must be selected and connected during control-panel construction. This makes it suitable for machine builders and control-system integrators requiring a compact reversing solution.
Typical Applications
- Forward and reverse control of industrial motors.
- Conveyors and material-handling equipment.
- Hoists, winches and lifting machinery.
- Machine tools and production equipment.
- Industrial doors, gates and positioning systems.
- OEM control panels and automation systems.
