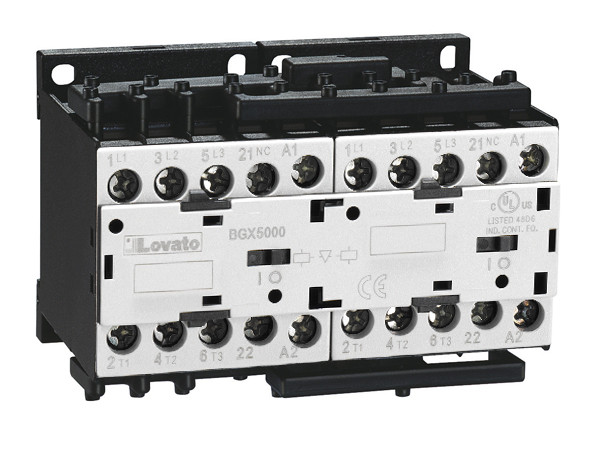

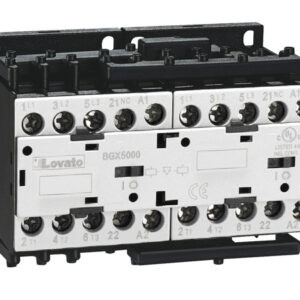

Lovato 11BGR1201D012 BGR12 reversing contactor assembly with a 12 A AC-3 rating, 5.7 kW motor rating at 400 V, 12 V DC coil, external interlock and pre-wired power and auxiliary connections.
£295.49
The Lovato 11BGR1201D012 is an open-frame reversing contactor assembly designed for forward and reverse control of motors in industrial machinery and automation systems. Designated BGR12, the assembly combines two contactors with an external interlock plus power and auxiliary wiring, providing a ready-configured solution for reversing motor starter applications.
This reversing contactor assembly uses a 12 V DC coil and provides an AC-3 operational current rating of 12 A at up to 440 V. Its pre-wired power and auxiliary connections help simplify installation compared with assembling and wiring separate contactors and interlocking components.
With an AC-3 motor power rating of 5.7 kW at 400 V, the 11BGR1201D012 is suitable for industrial motor direction-control applications. The assembly also provides a 3.2 kW rating at 230 V, 6.2 kW at 415 V and 5.5 kW at 440 V, supporting a range of three-phase motor installations.
Reversing contactor assemblies allow the direction of a three-phase motor to be changed by reversing the phase sequence supplied to the motor. An interlocking arrangement prevents the forward and reverse contactors from being energised simultaneously, supporting reliable motor direction control.
The Lovato 11BGR1201D012 combines the required reversing contactors, external interlock and associated power and auxiliary wiring into an integrated assembly. This configuration makes it well suited to machine builders and control panel manufacturers seeking a practical solution for forward and reverse motor applications.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGR12 |
| Model | 11BGR1201D012 |
| Product type | Reversing contactor assembly |
| Construction | Open frame with external interlock, power and auxiliary wiring |
| Coil type | DC |
| Coil voltage | 12 V DC |
| Maximum operating current (≤440 V) | 12 A |
| AC-3 operational current (≤440 V, ≤55 °C) | 12 A |
| AC-3 rated power at 230 V | 3.2 kW |
| AC-3 rated power at 400 V | 5.7 kW |
| AC-3 rated power at 415 V | 6.2 kW |
| AC-3 rated power at 440 V | 5.5 kW |
| AC-3 rated power at 500 V | 5 kW |
| AC-3 rated power at 690 V | 5 kW |
| Built-in auxiliary contacts | 1NC |
| UL/CSA three-phase rating at 440–480 V | 7.5 HP |
| Terminal type | Clamp screw |
| Weight | 460 g |
The 11BGR1201D012 is a reversing contactor assembly designed for forward and reverse control of motors in industrial machinery and automation applications.
The assembly uses a 12 V DC coil.
The 11BGR1201D012 has an AC-3 operational current rating of 12 A at up to 440 V and 55 °C.
The assembly has an AC-3 rated operational power of 5.7 kW at 400 V.
Yes. The assembly is supplied with an external interlock together with power and auxiliary wiring for reversing motor control.
Lovato BGR reversing contactor assemblies provide integrated forward and reverse motor control with interlocking and pre-wired connections, making them a practical choice for industrial machinery and automation panels.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGR1201D012 BGR12 Reversing Contactor Assembly 12 A 12 V DC", "sku": "11BGR1201D012", "mpn": "11BGR1201D012", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Reversing Contactor Assemblies", "description": "Lovato 11BGR1201D012 BGR12 reversing contactor assembly with a 12 A AC-3 rating, 5.7 kW motor rating at 400 V, 12 V DC coil, external interlock and pre-wired power and auxiliary connections.", "additionalProperty": [ { "@type": "PropertyValue", "name": "AC-3 operational current", "value": "12 A" }, { "@type": "PropertyValue", "name": "AC-3 power at 400 V", "value": "5.7 kW" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "12 V DC" }, { "@type": "PropertyValue", "name": "Coil type", "value": "DC" }, { "@type": "PropertyValue", "name": "Built-in auxiliary contacts", "value": "1NC" }, { "@type": "PropertyValue", "name": "Interlock", "value": "External interlock" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGR1201D012 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGR1201D012 is a reversing contactor assembly designed for forward and reverse control of motors in industrial machinery and automation applications." } }, { "@type": "Question", "name": "What is the coil voltage of the 11BGR1201D012?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly uses a 12 V DC coil." } }, { "@type": "Question", "name": "What is the AC-3 current rating?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGR1201D012 has an AC-3 operational current rating of 12 A at up to 440 V and 55 °C." } }, { "@type": "Question", "name": "What motor power is supported at 400 V?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly has an AC-3 rated operational power of 5.7 kW at 400 V." } }, { "@type": "Question", "name": "Does the 11BGR1201D012 include an interlock?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The assembly is supplied with an external interlock together with power and auxiliary wiring for reversing motor control." } } ] }
