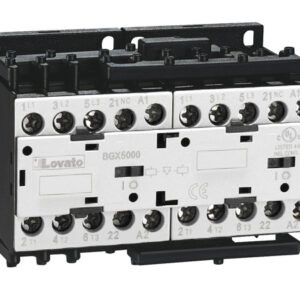

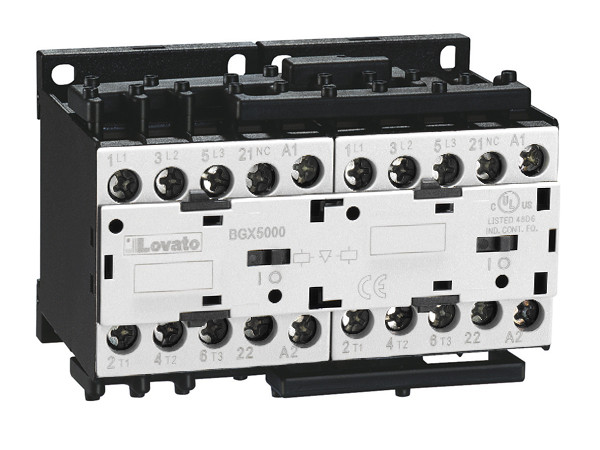

Why Choose the Lovato 11BGR1201D024 Reversing Contactor Assembly?
The Lovato 11BGR1201D024 is an open-frame reversing contactor assembly designed for forward and reverse control of three-phase motors in industrial machinery and automation systems. The assembly combines contactors with an external interlock plus power and auxiliary wiring, providing a ready-configured solution for reversing motor starter applications.
This reversing contactor assembly uses a 24 V DC coil and provides an AC-3 operational current rating of 12 A at up to 440 V. Its external interlocking arrangement prevents simultaneous operation of the forward and reverse contactors, while the pre-wired power and auxiliary connections help simplify control panel installation.
With an AC-3 motor power rating of 5.7 kW at 400 V, the 11BGR1201D024 is suitable for industrial motor direction-control applications. The assembly provides an integrated solution for machinery requiring dependable forward and reverse motor operation from a 24 V DC control supply.
Key Advantages
- Complete reversing contactor assembly for motor direction control.
- 12 A AC-3 operational current at up to 440 V.
- 5.7 kW AC-3 motor rating at 400 V.
- 24 V DC coil for DC control circuits.
- External interlock helps prevent simultaneous operation of the reversing contactors.
- Supplied with power and auxiliary wiring for streamlined panel assembly.
Key Features
- Lovato reversing contactor assembly.
- 12 A AC-3 rated operational current.
- 24 V DC coil voltage.
- 5.7 kW rated operational power at 400 V AC-3.
- Open-frame construction for industrial control panels.
- External interlock with power and auxiliary wiring.
- Designed for forward and reverse motor control.
- 7.5 HP UL/CSA rating at 480 V.
Reliable Reversing Control for Industrial Motors
Reversing contactor assemblies allow the direction of a three-phase motor to be changed by reversing the phase sequence supplied to the motor. An interlocking arrangement prevents the forward and reverse contactors from operating simultaneously, supporting dependable motor direction control and protecting the switching circuit.
The Lovato 11BGR1201D024 combines the required reversing contactors, external interlock and associated power and auxiliary wiring into an integrated assembly. This configuration makes it well suited to machine builders and control panel manufacturers seeking a practical solution for forward and reverse motor applications.
Typical Applications
- Forward and reverse three-phase motor control.
- Industrial conveyors and material handling systems.
- Hoists and motor-driven lifting equipment.
- Production and processing machinery.
- Industrial automation systems.
- OEM machinery and electrical control panels.
