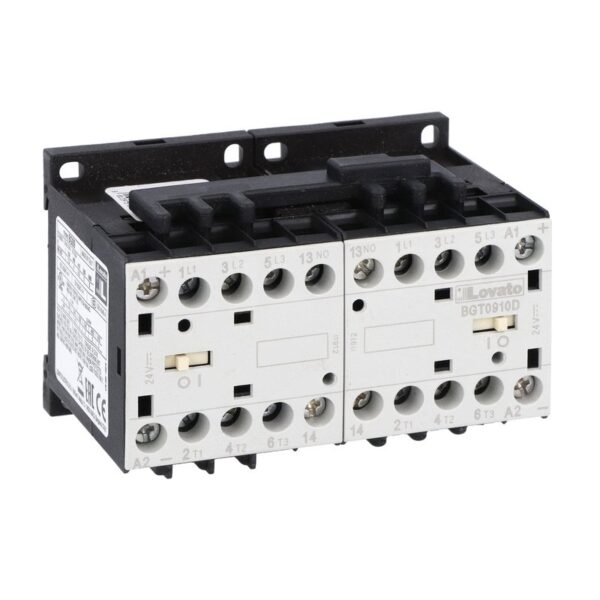

Lovato 11BGT0910D110 is a BGT09 reversing contactor assembly rated at 9 A AC-3 and 4 kW at 400 V with a 110 V DC coil, built-in interlock and power wiring for industrial motor reversing applications.
£259.92
The Lovato 11BGT0910D110 is a compact reversing contactor assembly designed for controlling and reversing three-phase motors in industrial machinery and automation systems. Part of the Lovato BGT09 series, this assembly combines two contactors with a built-in interlock and power wiring to simplify forward and reverse motor control.
Designed for reliable electromechanical motor switching, the 11BGT0910D110 has a rated AC-3 operational current of 9 A and is suitable for motor loads up to 4 kW at 400 V. The integrated interlocking arrangement helps prevent simultaneous operation of the forward and reverse contactors, providing a compact solution for reversing starter applications.
The assembly features a 110 V DC control coil, screw connections and a built-in normally open auxiliary contact. Its compact open-frame construction is suitable for installation in industrial control panels and motor control systems where dependable direction control is required.
Reversing contactor assemblies provide electrical control of motor direction by switching the phase connections used to supply a three-phase motor. This allows machinery to operate in both forward and reverse directions without requiring manual changes to the motor wiring.
The Lovato 11BGT0910D110 combines the contactors, interlocking arrangement and power wiring required for reversing operation into a compact assembly. This makes it suitable for machine builders, panel builders and industrial automation applications requiring dependable bidirectional motor control.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGT09 |
| Model | 11BGT0910D110 |
| Product type | Reversing contactor assembly |
| Rated operational current AC-3 | 9 A |
| Rated operational power AC-3 at 400 V | 4 kW |
| Rated operational power AC-3 at 230 V, three-phase | 2.2 kW |
| Coil voltage | 110 V DC |
| Built-in auxiliary contacts | 1 NO |
| Protection rating | IP20 |
| Terminal type | Screw connection |
| Mounting | DIN rail mounting |
| Dimensions (H × W × D) | 58 × 88 × 56 mm |
| Weight | 470 g |
| EAN | 8013975095645 |
The 11BGT0910D110 is a reversing contactor assembly designed to control the forward and reverse operation of electric motors in industrial machinery and automation systems.
The Lovato 11BGT0910D110 has a rated operational current of 9 A at AC-3.
The assembly is rated for 4 kW at 400 V AC-3 and 2.2 kW at 230 V AC-3 three-phase.
The 11BGT0910D110 uses a 110 V DC coil.
Yes. The assembly incorporates a built-in interlock with power wiring for reversing motor control applications.
Lovato Electric contactors and motor control components are designed for dependable switching and control in industrial machinery, automation panels and electromechanical motor starter applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGT0910D110 BGT09 Reversing Contactor 9 A 110 V DC", "sku": "11BGT0910D110", "mpn": "11BGT0910D110", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Reversing Contactors", "description": "Lovato 11BGT0910D110 is a BGT09 reversing contactor assembly rated at 9 A AC-3 and 4 kW at 400 V with a 110 V DC coil, built-in interlock and power wiring for industrial motor reversing applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Operational current AC-3", "value": "9 A" }, { "@type": "PropertyValue", "name": "Operational power AC-3 at 400 V", "value": "4 kW" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "110 V DC" }, { "@type": "PropertyValue", "name": "Auxiliary contacts", "value": "1 NO" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGT0910D110 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGT0910D110 is a reversing contactor assembly designed to control the forward and reverse operation of electric motors in industrial machinery and automation systems." } }, { "@type": "Question", "name": "What is the AC-3 current rating of the 11BGT0910D110?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGT0910D110 has a rated operational current of 9 A at AC-3." } }, { "@type": "Question", "name": "What motor power can the 11BGT0910D110 control?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly is rated for 4 kW at 400 V AC-3 and 2.2 kW at 230 V AC-3 three-phase." } }, { "@type": "Question", "name": "What coil voltage does the Lovato 11BGT0910D110 use?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGT0910D110 uses a 110 V DC coil." } }, { "@type": "Question", "name": "Does the 11BGT0910D110 include an interlock?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The assembly incorporates a built-in interlock with power wiring for reversing motor control applications." } } ] }
