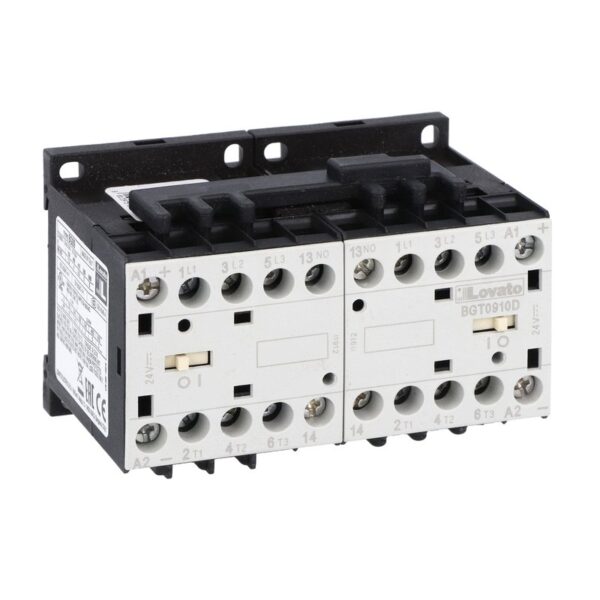

Lovato 11BGT0910D125 is a BGT09 three-pole reversing contactor assembly rated at 9 A AC-3 and 4 kW at 400 V with a 125 V DC coil, one normally open auxiliary contact and a built-in interlock with power wiring.
£259.92
The Lovato 11BGT0910D125 is a compact reversing contactor assembly designed for forward and reverse control of three-phase motors in industrial machinery and automation systems. Part of the Lovato BGT09 series, it combines reversing contactors with a built-in interlock and power wiring to provide a practical solution for bidirectional motor control.
With a rated operational current of 9 A at AC-3 and a rated operational power of 4 kW at 400 V, the 11BGT0910D125 is suited to compact industrial motor control applications. The assembly incorporates one normally open auxiliary contact and screw connections for straightforward integration into control circuits and electrical panels.
The 125 V DC coil makes this model suitable for DC control systems, while its three-pole configuration and 690 V contact voltage support demanding industrial switching applications. Its compact open-frame construction and DIN rail mounting capability help simplify installation in machinery and motor control panels.
Reversing contactor assemblies enable the direction of a three-phase motor to be changed electrically by switching the phase sequence supplied to the motor. This makes them suitable for machinery that requires controlled forward and reverse movement without manual alteration of the motor connections.
The Lovato 11BGT0910D125 integrates the contactors, interlocking arrangement and power wiring required for reversing operation into a compact assembly. Its 125 V DC control coil, screw connections and auxiliary contact make it suitable for integration into industrial automation systems and motor control panels.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGT09 |
| Model | 11BGT0910D125 |
| Product type | Reversing contactor assembly |
| Number of poles | 3 |
| Rated operational current | 9 A |
| Rated operational current AC-3 at 400 V | 9 A |
| Rated operational power AC-3 at 400 V | 4 kW |
| Rated operational power AC-3 at 230 V, three-phase | 2.2 kW |
| Coil voltage | 125 V DC |
| Contact voltage | 690 V |
| Auxiliary contacts | 1 NO / 0 NC |
| Terminal type | Screw connection |
| Protection rating | IP20 |
| Mounting type | DIN rail mounting |
| Dimensions (H × W × D) | 58 × 88 × 56 mm |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 and CSA C22.2 No. 14 |
| EAN | 8013975095652 |
The 11BGT0910D125 is a reversing contactor assembly used for forward and reverse control of electric motors in industrial machinery and automation systems.
The 11BGT0910D125 is fitted with a 125 V DC coil for use with compatible DC control circuits.
The contactor assembly has a rated operational current of 9 A at AC-3, 400 V.
The assembly is rated for 4 kW at 400 V AC-3 and 2.2 kW at 230 V AC-3 three-phase.
Yes. The 11BGT0910D125 is supplied with a built-in interlock with power wiring for reversing motor control applications.
