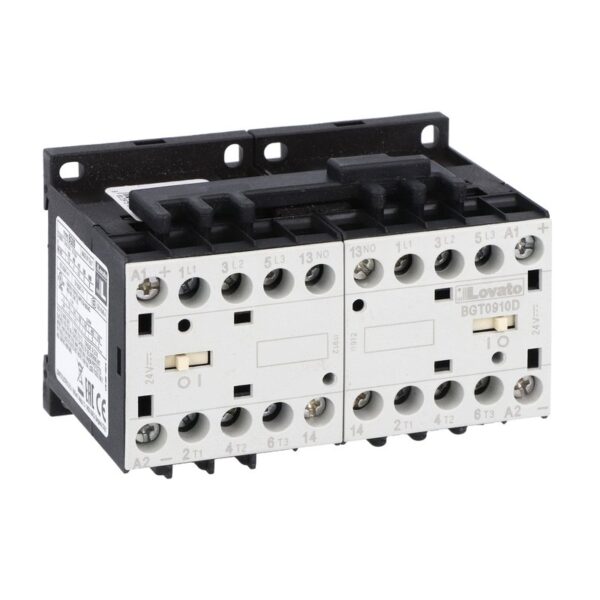

Lovato 11BGT0910D220 is a BGT09 reversing contactor assembly rated at 9 A AC-3 and 4 kW at 400 V with a 220 V DC coil, one normally open auxiliary contact and a built-in interlock with power wiring.
£259.92
The Lovato 11BGT0910D220 is a compact reversing contactor assembly designed for forward and reverse control of three-phase motors in industrial machinery and automation systems. Part of the Lovato BGT09 series, it combines a reversing contactor arrangement with a built-in interlock and power wiring to simplify bidirectional motor control.
With a rated operational current of 9 A at AC-3, 400 V and a rated operational power of 4 kW at 400 V, the 11BGT0910D220 provides dependable switching for compact industrial motor applications. Its integrated interlocking arrangement helps prevent simultaneous operation of the reversing contactors, supporting reliable forward and reverse operation.
The assembly features a 220 V DC control coil, one normally open auxiliary contact and screw terminal connections. Its compact dimensions make it well suited to installation within industrial control panels, OEM machinery and motor control systems where dependable reversing functionality is required.
Reversing contactor assemblies enable the direction of a three-phase motor to be changed electrically by altering the phase sequence supplied to the motor. This allows machinery to provide controlled forward and reverse movement without manually changing the motor connections.
The Lovato 11BGT0910D220 integrates the reversing contactor arrangement, interlock and power wiring into a compact assembly. Its 220 V DC coil, auxiliary contact and screw terminals make it suitable for integration into industrial automation systems, machinery and motor control panels.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGT09 |
| Model | 11BGT0910D220 |
| Product type | Reversing contactor assembly |
| Number of poles | 3 |
| Rated operational current AC-3 at 400 V | 9 A |
| Rated operational power AC-3 at 400 V | 4 kW |
| Rated operational power AC-3 at 230 V, three-phase | 2.2 kW |
| Coil voltage | 220 V DC |
| Contact voltage | 690 V |
| Auxiliary contacts | 1 NO / 0 NC |
| Terminal type | Screw connection |
| Dimensions (H × W × D) | 58 × 88 × 56 mm |
| UL/CSA horsepower rating at 480 V | 5 HP |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 and CSA C22.2 No. 14 |
| EAN | 8013975095669 |
The 11BGT0910D220 is a reversing contactor assembly designed for forward and reverse control of electric motors in industrial machinery and automation systems.
The 11BGT0910D220 uses a 220 V DC coil for operation from compatible DC control circuits.
The contactor assembly has a rated operational current of 9 A at AC-3, 400 V.
The assembly is rated for 4 kW at 400 V AC-3 and 2.2 kW at 230 V AC-3 three-phase.
Yes. The 11BGT0910D220 features a built-in interlock with power wiring for reversing motor control applications.
Lovato Electric contactors and motor control components provide dependable switching solutions for industrial machinery, automation panels and electromechanical motor control applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGT0910D220 BGT09 Reversing Contactor 9 A 220 V DC", "sku": "11BGT0910D220", "mpn": "11BGT0910D220", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Reversing Contactors", "description": "Lovato 11BGT0910D220 is a BGT09 reversing contactor assembly rated at 9 A AC-3 and 4 kW at 400 V with a 220 V DC coil, one normally open auxiliary contact and a built-in interlock with power wiring.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Operational current AC-3 at 400 V", "value": "9 A" }, { "@type": "PropertyValue", "name": "Operational power AC-3 at 400 V", "value": "4 kW" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "220 V DC" }, { "@type": "PropertyValue", "name": "Contact voltage", "value": "690 V" }, { "@type": "PropertyValue", "name": "Auxiliary contacts", "value": "1 NO / 0 NC" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGT0910D220 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGT0910D220 is a reversing contactor assembly designed for forward and reverse control of electric motors in industrial machinery and automation systems." } }, { "@type": "Question", "name": "What coil voltage does the Lovato 11BGT0910D220 use?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGT0910D220 uses a 220 V DC coil for operation from compatible DC control circuits." } }, { "@type": "Question", "name": "What is the AC-3 current rating of the 11BGT0910D220?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor assembly has a rated operational current of 9 A at AC-3, 400 V." } }, { "@type": "Question", "name": "What motor power is the 11BGT0910D220 rated for?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly is rated for 4 kW at 400 V AC-3 and 2.2 kW at 230 V AC-3 three-phase." } }, { "@type": "Question", "name": "Does the Lovato 11BGT0910D220 include an interlock?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The 11BGT0910D220 features a built-in interlock with power wiring for reversing motor control applications." } } ] }
