Why Choose the Lovato 11BGT1210A048 Reversing Contactor?

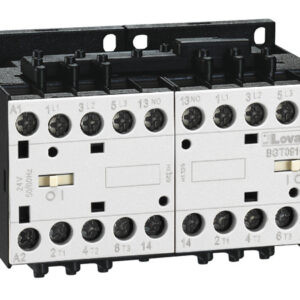

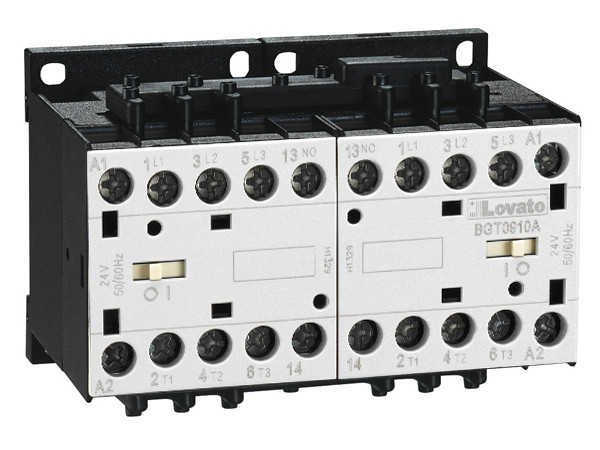

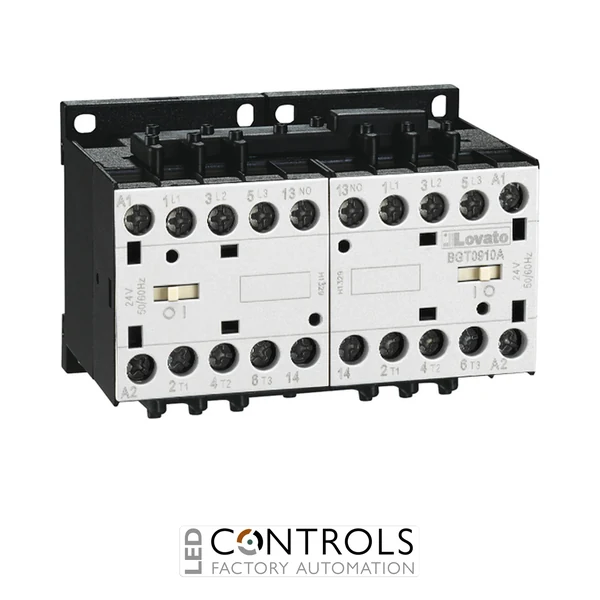

The Lovato 11BGT1210A048 is an open-frame reversing contactor assembly designed for forward and reverse control of electric motors in industrial machinery and automation systems. Part of the Lovato BGT12 series, it incorporates an external mechanical interlock and a power connection kit to provide a compact solution for reversing motor control.
With a maximum operational current of 12 A and a rated operational current of 12 A at AC-3 up to 440 V, the 11BGT1210A048 provides dependable switching for industrial motor applications. Its rated operational power is 5.7 kW at 400 V AC-3, making it suitable for machinery requiring controlled bidirectional motor operation.
The assembly features a 48 V AC 50/60 Hz coil, one normally open built-in auxiliary contact and screw terminals. The integrated mechanical interlock and power wiring reduce the number of separate components required when building a reversing motor control circuit.
Key Advantages
- Complete reversing contactor assembly for forward and reverse motor control.
- 12 A AC-3 operational current for industrial motor switching.
- 5.7 kW AC-3 motor rating at 400 V.
- 48 V AC 50/60 Hz control coil.
- External mechanical interlock supports safe reversing operation.
- Integrated power connection kit simplifies panel wiring.
- Built-in 1 NO auxiliary contact for control functions.
Key Features
- Lovato BGT12 reversing contactor series.
- 12 A maximum operational current up to 440 V.
- 12 A rated operational current at AC-3 up to 440 V and 55 °C.
- 5.7 kW rated operational power at AC-3, 400 V.
- 3.2 kW rated operational power at AC-3, 230 V.
- 48 V AC 50/60 Hz coil.
- External mechanical interlock and power connection kit.
- 1 normally open built-in auxiliary contact.
- Screw terminal connections.
- 7.5 HP UL/CSA three-phase motor rating at 440–480 V.
Reliable Reversing Control for Industrial Motors
Reversing contactor assemblies provide electrical forward and reverse control for motors by switching the connections required to change motor direction. This makes them well suited to industrial machinery where controlled bidirectional movement is required.
The Lovato 11BGT1210A048 combines reversing contactors, an external mechanical interlock and a power connection kit in a compact open-frame assembly. Its 48 V AC 50/60 Hz coil, screw terminals and built-in auxiliary contact make it suitable for integration into industrial motor control and automation systems.
Typical Applications
- Forward and reverse control of industrial motors.
- Industrial conveyors and material handling systems.
- Machine tools and production machinery.
- Hoisting and positioning equipment.
- Industrial movement and reversing systems.
- OEM machinery and automation control panels.
