Why Choose the Lovato 11BGT1210D024 Reversing Contactor?

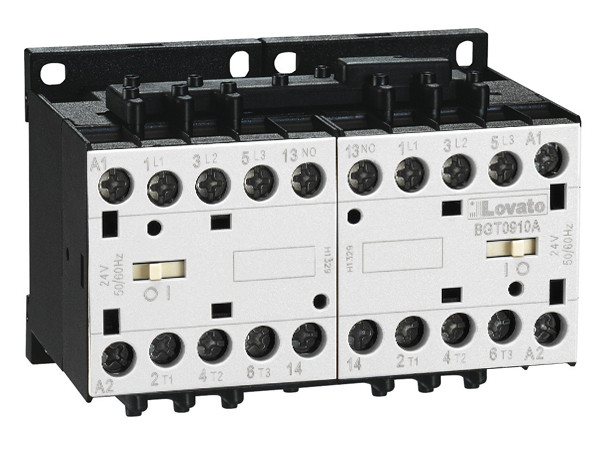

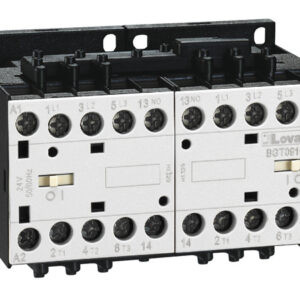

The Lovato 11BGT1210D024 is a compact reversing contactor assembly designed for forward and reverse control of three-phase motors in industrial machinery and automation systems. Part of the Lovato BGT12 series, it combines a reversing contactor arrangement with a built-in mechanical interlock and power wiring for convenient integration into motor control panels.
With a rated operational current of 12 A at AC-3, 400 V and a rated operational power of 5.7 kW at 400 V, the 11BGT1210D024 provides dependable switching for industrial motor applications. Its integrated interlocking arrangement helps prevent simultaneous operation of the forward and reverse contactors while reducing the number of separate components required in the control panel.
The assembly features a 24 V DC control coil, three poles and one normally open built-in auxiliary contact. Screw terminal connections and DIN rail mounting capability make it suitable for OEM machinery, industrial automation equipment and motor control systems requiring reliable bidirectional operation.
Key Advantages
- Complete reversing contactor assembly for forward and reverse motor control.
- 12 A AC-3 rated operational current at 400 V.
- 5.7 kW AC-3 motor rating at 400 V.
- 24 V DC control coil for compatible DC control circuits.
- Built-in mechanical interlock with power wiring simplifies reversing installations.
- Integrated 1 NO auxiliary contact for control functions.
- Compact construction supports space-efficient industrial panel installation.
Key Features
- Lovato BGT12 reversing contactor series.
- 3-pole reversing contactor configuration.
- 12 A rated operational current at AC-3, 400 V.
- 5.7 kW rated operational power at AC-3, 400 V.
- 3.2 kW rated operational power at AC-3, 230 V three-phase.
- 24 V DC coil voltage.
- Built-in mechanical interlock with power wiring.
- 1 normally open built-in auxiliary contact.
- Screw terminal connections.
- IP20 protection rating.
- DIN rail mounting capability.
- cULus certified.
Reliable Reversing Control for Industrial Motors
Reversing contactor assemblies provide electrical forward and reverse motor control by changing the phase sequence supplied to a three-phase motor. This enables machinery to perform controlled bidirectional movement without manually altering the motor connections.
The Lovato 11BGT1210D024 combines the reversing contactor arrangement, mechanical interlock and power wiring into a compact assembly. Its 24 V DC coil, built-in auxiliary contact and screw connections make it suitable for integration into industrial automation systems, machinery and motor control panels.
Typical Applications
- Forward and reverse control of three-phase motors.
- Industrial conveyors and material handling systems.
- Machine tools and production machinery.
- Hoisting and positioning equipment.
- Industrial movement and reversing systems.
- OEM machinery and automation control panels.
