Why Choose the Lovato 11BGT1210D060 Reversing Contactor?

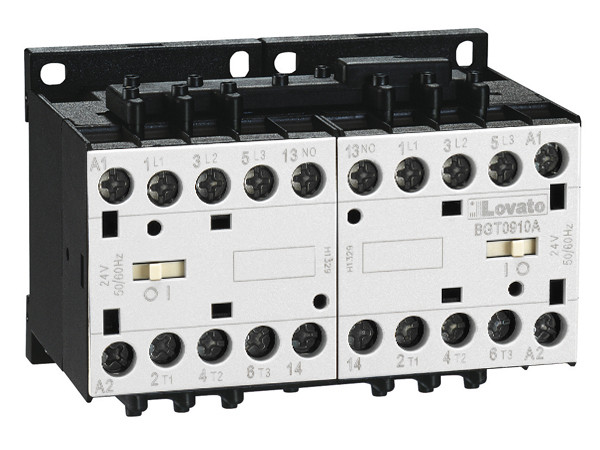

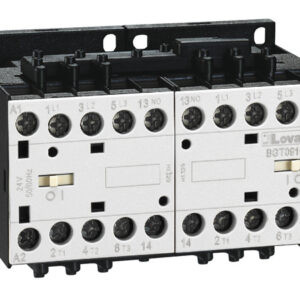

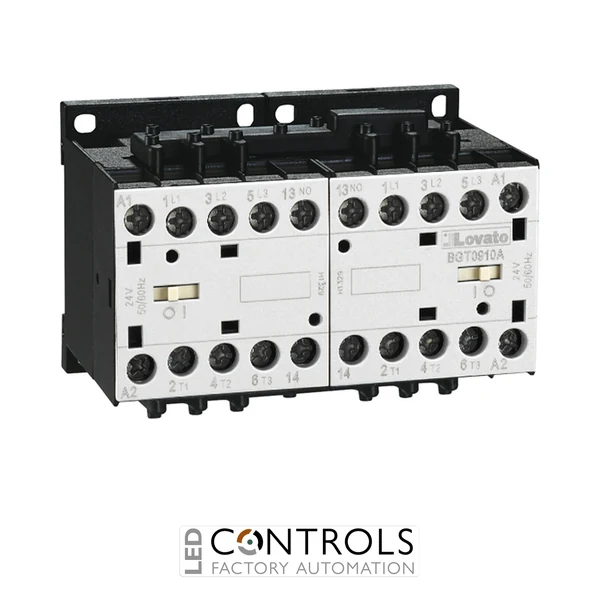

The Lovato 11BGT1210D060 is an open-frame reversing contactor assembly designed for forward and reverse motor control in industrial machinery and automation systems. Part of the Lovato BGT12 series, it incorporates a built-in interlock with power wiring to provide an integrated solution for bidirectional motor switching.
With a maximum operational current of 12 A up to 440 V and a rated operational current of 12 A at AC-3 up to 440 V, the 11BGT1210D060 provides dependable switching for industrial motor applications. It has a rated operational power of 5.7 kW at 400 V AC-3, making it suitable for machinery requiring controlled forward and reverse operation.
The assembly features a 60 V DC control coil and one normally open built-in auxiliary contact. Its compact open-frame construction and integrated interlocking arrangement help simplify installation in industrial control panels, OEM machinery and motor control systems.
Key Advantages
- Complete reversing contactor assembly for forward and reverse motor control.
- 12 A AC-3 operational current for industrial motor switching.
- 5.7 kW AC-3 motor rating at 400 V.
- 60 V DC control coil for compatible DC control circuits.
- Built-in interlock with power wiring simplifies reversing installations.
- Integrated 1 NO auxiliary contact for control functions.
- Open-frame construction for integration into industrial control panels and machinery.
Key Features
- Lovato BGT12 reversing contactor series.
- 12 A maximum operational current up to 440 V.
- 12 A rated operational current at AC-3 up to 440 V and 55 °C.
- 5.7 kW rated operational power at AC-3, 400 V.
- 3.2 kW rated operational power at AC-3, 230 V.
- 60 V DC coil voltage.
- Built-in interlock with power wiring only.
- 1 normally open built-in auxiliary contact.
- 7.5 HP UL/CSA three-phase motor rating at 440–480 V.
- 10 HP UL/CSA three-phase motor rating at 550–600 V.
Reliable Reversing Control for Industrial Motors
Reversing contactor assemblies provide electrical forward and reverse motor control by changing the switching arrangement used to operate the motor. This enables industrial machinery to perform controlled bidirectional movement through an integrated electromechanical switching solution.
The Lovato 11BGT1210D060 combines the reversing contactor arrangement, built-in interlock and power wiring in a compact open-frame assembly. Its 60 V DC coil and built-in normally open auxiliary contact make it suitable for integration into compatible industrial motor control and automation systems.
Typical Applications
- Forward and reverse control of industrial motors.
- Industrial conveyors and material handling systems.
- Machine tools and production machinery.
- Hoisting and positioning equipment.
- Industrial movement and reversing systems.
- OEM machinery and automation control panels.
