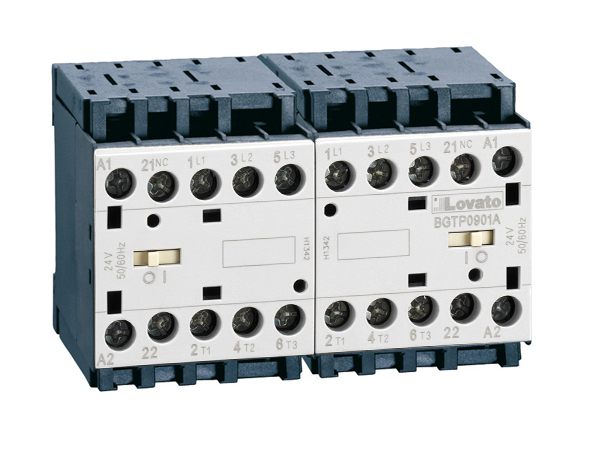

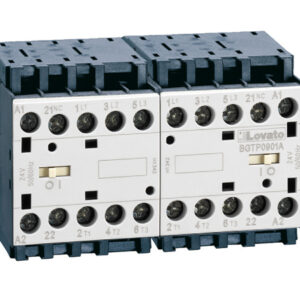

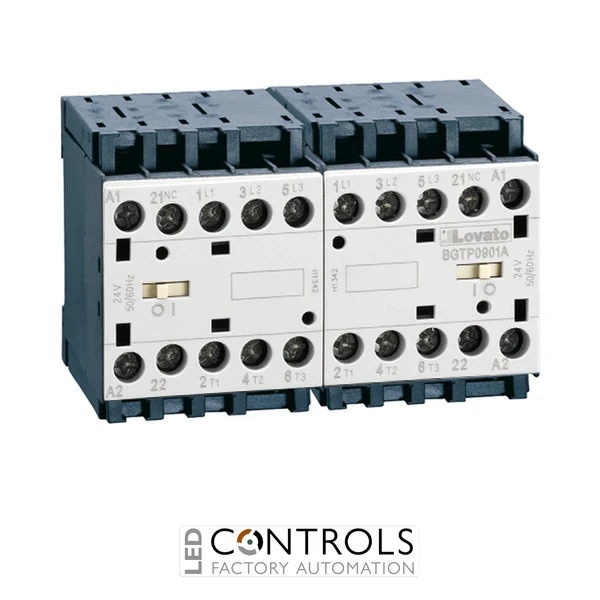

Lovato 11BGTP0901D060 is a BGTP09 reversing contactor assembly with a 60 V DC coil, 9 A AC-3 operational current rating and 4 kW AC-3 rated operational power at 400 V.
£264.95
The Lovato 11BGTP0901D060 is a compact reversing contactor assembly designed for forward and reverse control of motors in industrial machinery and automation systems. Part of the Lovato BGTP09 series, this open-frame assembly combines reversing contactor functionality with a built-in interlock for dependable motor control.
Designed for integration into industrial control equipment, the 11BGTP0901D060 uses a 60 V DC coil and provides an AC-3 operational current rating of 9 A at voltages up to 440 V. Its integrated configuration helps simplify the implementation of reversing motor circuits while providing the switching performance required by machine builders and control panel manufacturers.
At 400 V, the Lovato 11BGTP0901D060 has an AC-3 rated operational power of 4 kW. The assembly also incorporates a 1 NC auxiliary contact, making it a practical choice for industrial applications requiring compact, interlocked motor reversing control.
Reversing contactor assemblies enable motor direction to be changed by controlling the electrical connections used for forward and reverse operation. Combining the required contactors into an interlocked assembly provides a convenient solution for machinery and automation systems where controlled bidirectional motor operation is required.
The Lovato 11BGTP0901D060 combines a 60 V DC control coil with a 9 A AC-3 rating and integrated auxiliary contact, providing a compact solution for OEM equipment, machine control systems and industrial motor control panels.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGTP09 |
| Model | 11BGTP0901D060 |
| Product type | Reversing contactor assembly |
| Number of poles | 3 |
| Maximum operating current (≤440 V) | 9 A |
| Operational current Ie AC-3 (≤440 V, ≤55°C) | 9 A |
| Rated operational power AC-3 at 230 V | 2.2 kW |
| Rated operational power AC-3 at 400 V | 4 kW |
| Rated operational power AC-3 at 415 V | 4.3 kW |
| Rated operational power AC-3 at 440 V | 4.5 kW |
| Rated operational power AC-3 at 500 V | 5 kW |
| Coil type | DC |
| Coil voltage | 60 V DC |
| Built-in auxiliary contacts | 1 NC |
| Built-in interlock | Yes |
| Terminal type | Clamp screw |
| Weight | 460 g |
The Lovato 11BGTP0901D060 is a reversing contactor assembly designed for applications requiring forward and reverse motor control.
The 11BGTP0901D060 uses a 60 V DC coil.
The contactor assembly has an AC-3 operational current rating of 9 A at ≤440 V and ≤55°C.
Its AC-3 rated operational power at 400 V is 4 kW.
Yes. The assembly has one built-in normally closed (1 NC) auxiliary contact.
