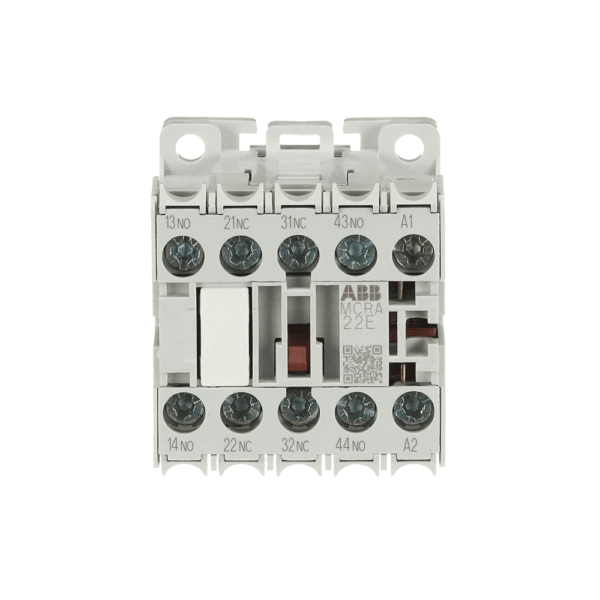

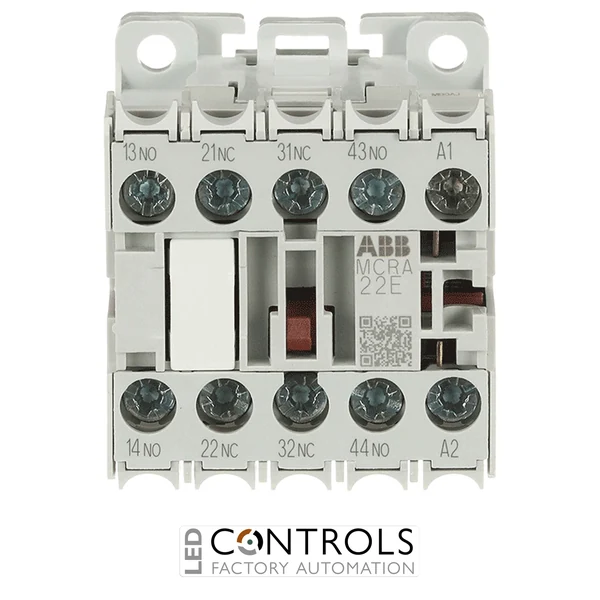

ABB 1SAH100485R9900 MCRA022ARJ is a compact four-pole AC mini contactor relay with 2NO and 2NC contacts, ring-tongue terminals and a 110–115 V 50 Hz or 110–120 V 60 Hz control coil.
£39.43
The ABB 1SAH100485R9900, also designated MCRA022ARJ, is a compact four-pole mini contactor relay designed for switching control signals and small loads in industrial, commercial and residential applications. Its space-efficient construction makes it particularly suitable for control panels where dependable performance is required within a limited installation area.
This AC-operated contactor relay incorporates two normally open and two normally closed auxiliary contacts. Special screw terminals accommodate ring-tongue cable terminals, helping provide secure electrical connections in machinery, automation and building-control systems.
The MCRA022ARJ operates from a control supply of 110–115 V AC at 50 Hz or 110–120 V AC at 60 Hz. It can switch control signals and small loads up to 6 A at 240 V AC under the AC-15 utilisation category and is suitable for DIN-rail or wall mounting.
Mini contactor relays provide electrically operated switching for control circuits and small loads. Applying the rated control voltage energises the coil and changes the state of the normally open and normally closed contacts, enabling signals to be distributed, interlocked or isolated within an automation system.
The ABB MCRA series combines compact dimensions with flexible mounting and secure ring-tongue connections. Its 2NO + 2NC contact arrangement makes the 1SAH100485R9900 suitable for relay logic, signalling, interlocking and auxiliary control functions in modern electrical installations.
| Manufacturer | ABB |
|---|---|
| Series | M Mini Contactor Relays |
| Model | MCRA022ARJ |
| Order code | 1SAH100485R9900 |
| Product type | Mini contactor relay |
| Number of poles | 4 |
| Auxiliary contacts | 2NO + 2NC |
| Control voltage at 50 Hz | 110–115 V AC |
| Control voltage at 60 Hz | 110–120 V AC |
| Rated operational current | 6 A |
| Rated operational current at 400 V | 4 A |
| Conventional free-air thermal current | 10 A |
| Rated auxiliary-circuit operational voltage | 690 V AC / 440 V DC |
| Terminal type | Ring-tongue terminals with special screw connections |
| Protection rating | IP20 at terminals |
| Mounting type | DIN rail or wall mounting |
| Dimensions (W × H × D) | 45 × 48 × 56 mm |
| Net weight | 0.17 kg |
| Operating temperature | -40 °C to +70 °C |
| Storage temperature | -55 °C to +80 °C |
| Maximum operating altitude | 3,000 m |
| Standards | IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1 and UL 60947-5-1 |
It is used to switch control signals and small loads in industrial machinery, automation, building-control and electrical-panel applications.
The MCRA022ARJ has two normally open and two normally closed contacts, providing a 2NO + 2NC arrangement.
It requires 110–115 V AC at 50 Hz or 110–120 V AC at 60 Hz.
The relay has special screw terminals designed for connection with ring-tongue cable terminals.
The compact contactor relay is suitable for installation on a DIN rail or directly onto a mounting surface.
