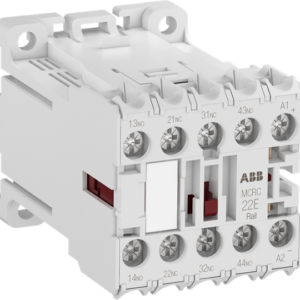

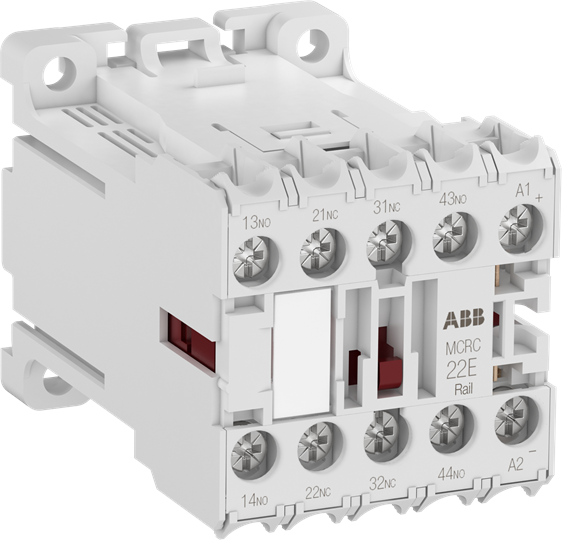

ABB 1SAH102145R9910 MCRC022ARWID-RAIL is a four-pole DC-operated mini contactor relay with 2NO + 2NC contacts, a 51–90 V DC control voltage range and ring-tongue terminal connections for industrial and railway control applications.
£73.99
The ABB 1SAH102145R9910, type MCRC022ARWID-RAIL, is a compact four-pole mini contactor relay designed for control functions and switching small electrical loads in demanding industrial and railway applications. Part of ABB’s MCRC...R-RAIL range, its dimension-optimised construction provides high switching performance where installation space is limited.
The MCRC022ARWID-RAIL features two normally open and two normally closed contacts (2NO + 2NC) together with special screw terminals for connection using ring-tongue ferrules. Its DC-operated control circuit is specified for a 51–90 V DC control voltage range, with a nominal 72 V DC designation.
Designed for switching control signals and small loads up to 6 A at 240 V AC in AC-15 applications, the MCRC022ARWID-RAIL combines compact dimensions with secure electrical connections. It is suitable for rail or wall mounting and is designed for railway environments, including shock and vibration requirements according to IEC/EN 61373 and fire and smoke requirements according to EN 45545-2.
Mini contactor relays such as the ABB MCRC022ARWID-RAIL provide multiple electrically operated contacts for switching control signals and small loads. Its 2NO + 2NC arrangement enables normally open and normally closed circuits to change state simultaneously when the DC-operated contactor relay is energised.
The MCRC...R-RAIL range is designed for applications requiring compact dimensions, secure ring-tongue connections and resistance to railway operating conditions. The MCRC022ARWID-RAIL can be mounted on a rail or wall and supports additional front- or side-mounted auxiliary contact blocks where extra control contacts are required.
| Manufacturer | ABB |
|---|---|
| Series | MCRC...R-RAIL |
| Model | MCRC022ARWID-RAIL |
| ABB order code | 1SAH102145R9910 |
| Product type | Mini contactor relay |
| Number of poles | 4 |
| Contact configuration | 2NO + 2NC |
| Rated control circuit voltage | 51–90 V DC |
| Nominal control voltage designation | 72 V DC |
| Control circuit | DC operated |
| Rated switching current | 6 A |
| Rated operational current at 400 V | 4 A |
| AC-15 switching capability | Up to 6 A at 240 V AC |
| Maximum AC operating voltage | 690 V |
| Maximum DC operating voltage | 440 V |
| Connection type | Special screw terminals for ring-tongue ferrules |
| Mounting type | Rail or wall mounting |
| Dimensions (H × W × D) | 48 × 45 × 68 mm |
| Weight | 0.235 kg |
| EAN | 4013614549519 |
The ABB 1SAH102145R9910 is the order code for the MCRC022ARWID-RAIL four-pole mini contactor relay, designed for switching control signals and small electrical loads.
The MCRC022ARWID-RAIL has two normally open and two normally closed contacts (2NO + 2NC).
ABB specifies a rated control circuit voltage range of 51–90 V DC for this version, with a nominal 72 V DC designation.
The mini contactor relay is designed for control functions and switching small loads up to 6 A at 240 V AC in AC-15 applications.
The contactor relay uses special screw terminals designed for connection with ring-tongue ferrules, providing secure connections for demanding control applications.
ABB MCRC...R-RAIL mini contactor relays provide compact DC-operated switching for industrial and railway control systems, combining secure ring-tongue connections with four-pole switching and construction suited to demanding transport applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "ABB MCRC022ARWID-RAIL Mini Contactor Relay 2NO + 2NC 72 V DC", "sku": "1SAH102145R9910", "mpn": "MCRC022ARWID-RAIL", "brand": { "@type": "Brand", "name": "ABB" }, "category": "Mini Contactor Relays", "description": "ABB 1SAH102145R9910 MCRC022ARWID-RAIL is a four-pole DC-operated mini contactor relay with 2NO + 2NC contacts, a 51–90 V DC control voltage range and ring-tongue terminal connections for industrial and railway control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Contact configuration", "value": "2NO + 2NC" }, { "@type": "PropertyValue", "name": "Control voltage range", "value": "51–90 V DC" }, { "@type": "PropertyValue", "name": "Nominal control voltage", "value": "72 V DC" }, { "@type": "PropertyValue", "name": "Rated switching current", "value": "6 A" }, { "@type": "PropertyValue", "name": "Connection type", "value": "Special screw terminals for ring-tongue ferrules" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the ABB 1SAH102145R9910?", "acceptedAnswer": { "@type": "Answer", "text": "The ABB 1SAH102145R9910 is the order code for the MCRC022ARWID-RAIL four-pole mini contactor relay, designed for switching control signals and small electrical loads." } }, { "@type": "Question", "name": "What contact configuration does the ABB MCRC022ARWID-RAIL have?", "acceptedAnswer": { "@type": "Answer", "text": "The MCRC022ARWID-RAIL has two normally open and two normally closed contacts (2NO + 2NC)." } }, { "@type": "Question", "name": "What control voltage does the ABB MCRC022ARWID-RAIL use?", "acceptedAnswer": { "@type": "Answer", "text": "ABB specifies a rated control circuit voltage range of 51–90 V DC for this version, with a nominal 72 V DC designation." } }, { "@type": "Question", "name": "What can the ABB MCRC022ARWID-RAIL switch?", "acceptedAnswer": { "@type": "Answer", "text": "The mini contactor relay is designed for control functions and switching small loads up to 6 A at 240 V AC in AC-15 applications." } }, { "@type": "Question", "name": "What type of connections does the ABB MCRC022ARWID-RAIL use?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor relay uses special screw terminals designed for connection with ring-tongue ferrules, providing secure connections for demanding control applications." } } ] }
