Why Choose the ABB 1SAH102182R9900 MCRA031ARJ Mini Contactor Relay?

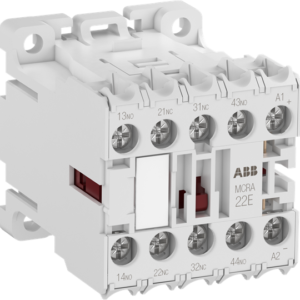

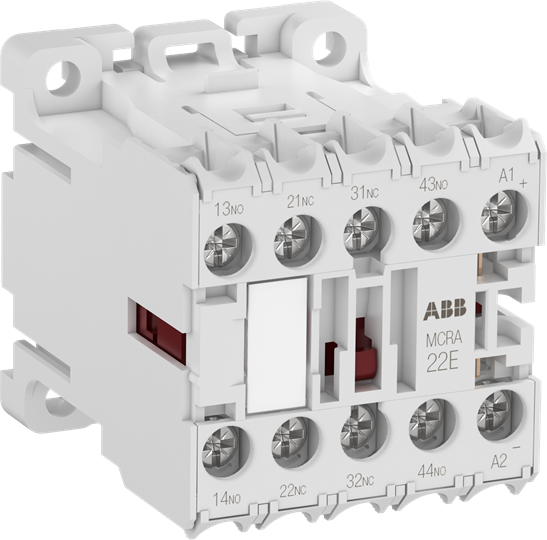

The ABB 1SAH102182R9900 is a compact and reliable mini contactor relay designed for switching control signals and small electrical loads in industrial automation, commercial installations and electrical control systems. As part of the advanced ABB MCRA mini contactor relay series, it provides dependable auxiliary switching performance where high functionality is required within a limited installation space.
This four-pole auxiliary contactor relay features a 3NO + 1NC contact configuration and an AC-operated coil rated at 110–115 V AC at 50 Hz and 110–120 V AC at 60 Hz. The device includes special ring tongue terminal connections, allowing secure wiring in industrial control panels, automation systems and electrical assemblies where reliable connections are required.
With switching capability up to 6 A at 240 V AC (AC-15), the ABB MCRA031ARJ provides dependable auxiliary switching for applications requiring compact dimensions, flexible mounting and proven ABB engineering.
Key Advantages
- Compact mini contactor relay designed for auxiliary control switching.
- 3NO + 1NC auxiliary contact configuration for flexible control applications.
- 110–115 V AC 50 Hz and 110–120 V AC 60 Hz coil voltage for industrial control systems.
- Special ring tongue terminal connections for secure installation.
- Space-saving design for compact electrical panels and automation equipment.
- Suitable for wall or DIN rail mounting applications.
Key Features
- ABB MCRA031ARJ mini contactor relay.
- Four-pole auxiliary contactor configuration.
- 3 normally open (NO) + 1 normally closed (NC) auxiliary contacts.
- 110–115 V AC 50 Hz control supply voltage.
- 110–120 V AC 60 Hz control supply voltage.
- 6 A AC-15 operational current at 240 V AC.
- 4 A rated operational current at 400 V AC.
- Ring tongue screw terminal connection system.
- DIN rail and wall mounting compatible design.
- Up to 6 additional auxiliary contacts can be fitted.
Reliable Control Switching for Industrial Automation
Mini contactor relays such as the ABB MCRA series provide dependable switching of auxiliary circuits, allowing automation systems to control signals, interlocks and small electrical loads efficiently. Their compact construction makes them ideal for installations where panel space optimisation is important.
The ABB 1SAH102182R9900 combines a robust auxiliary contact arrangement with reliable AC coil operation and secure ring terminal connections, making it suitable for industrial control systems, machine building applications and electrical installations requiring dependable switching performance.
Typical Applications
- Industrial automation control panels.
- Motor control circuits and auxiliary switching.
- Machine building and OEM equipment.
- Building automation systems.
- Electrical distribution control circuits.
- Industrial and commercial control installations.
