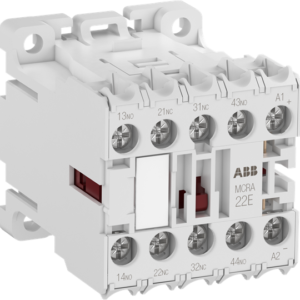

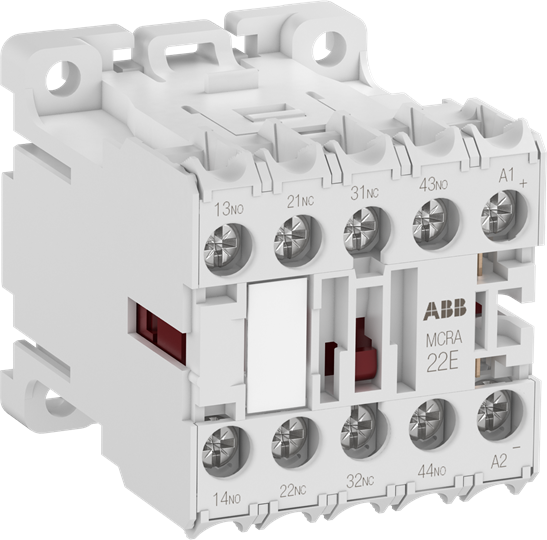

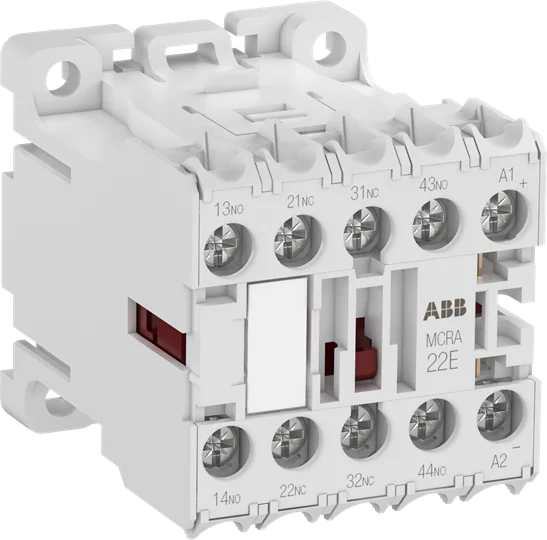

Why Choose the ABB 1SAH102184R9900 MCRA022AR6 Mini Contactor Relay?
The ABB 1SAH102184R9900 is a compact and reliable MCRA022AR6 mini contactor relay designed for switching control signals and small electrical loads in industrial, commercial and automation applications. As part of the ABB M Mini contactor relay series, it provides dependable auxiliary switching performance where high functionality, compact installation and reliable AC control are required.
This mini contactor relay features a dimension-optimised four-pole auxiliary contact design with special screw terminals for connections using ring tongue ferrules. Its compact construction makes it suitable for applications where reliable control switching is required while minimising electrical panel space.
With a 220–230 V AC control supply at 50 / 60 Hz and a 2 normally open + 2 normally closed auxiliary contact configuration, the ABB 1SAH102184R9900 MCRA022AR6 provides flexible switching capability for automation systems, electrical control circuits and industrial applications.
Key Advantages
- Compact mini contactor relay designed for industrial control applications.
- 2NO + 2NC auxiliary contact configuration for flexible control circuit switching.
- 220–230 V AC 50 / 60 Hz control supply suitable for common industrial control systems.
- Special screw terminals designed for ring tongue ferrule connections.
- Space-saving design for electrical panels and automation equipment.
- Suitable for DIN rail or screw mounting installations.
Key Features
- ABB MCRA022AR6 mini contactor relay.
- 4-pole auxiliary contact design.
- 2 normally open (NO) and 2 normally closed (NC) contacts.
- 6 A rated operational current.
- 4 A operational current at 400 V AC.
- AC operated control circuit.
- Ring tongue ferrule screw terminal connection system.
- Compact DIN rail and screw mounting design.
- No LED indication or manual operation function.
Reliable Control Switching for Industrial Applications
Mini contactor relays such as the ABB MCRA022AR6 provide dependable switching of auxiliary circuits and control signals in electrical systems. Their compact design enables engineers to build efficient control panels while maintaining reliable switching performance.
The ABB M Mini series is designed for residential, commercial and industrial applications requiring dependable control signal switching. The 1SAH102184R9900 combines ABB engineering, flexible mounting options and robust auxiliary contact functionality for modern automation systems.
Typical Applications
- Industrial automation control panels.
- Machine building and OEM equipment.
- Motor control and auxiliary switching circuits.
- Electrical distribution control systems.
- Building automation applications.
- Industrial signalling and control circuits.
