Why Choose the ABB MCRA013ATM Mini Contactor Relay?

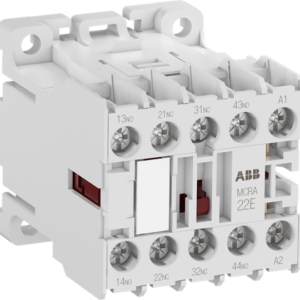

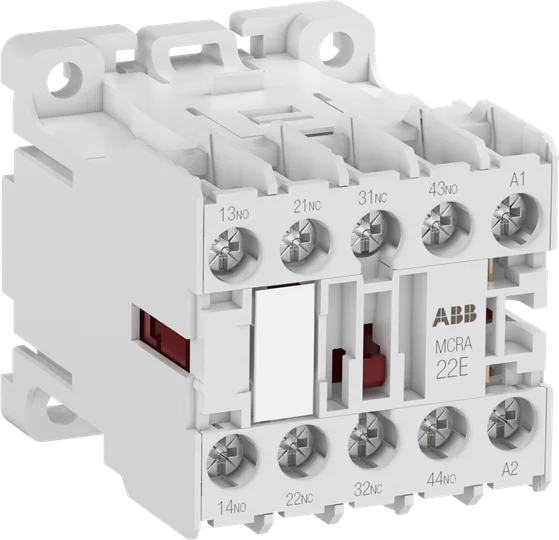

The ABB 1SAH220417R9900, type MCRA013ATM, is a compact four-pole mini contactor relay designed for switching control signals and small electrical loads in residential, commercial and industrial applications. Part of ABB’s MCRA range, it provides reliable auxiliary switching performance in a space-saving format for electrical control panels.
The MCRA013ATM features one normally open and three normally closed contacts (1NO + 3NC). Its AC-operated control circuit uses a 208–220 V AC rated control voltage at 60 Hz, while screw-terminal connections provide secure integration into control and automation systems.
Designed for switching control signals up to 6 A at 240 V AC in AC-15 applications, the MCRA013ATM combines compact dimensions with flexible installation options. It is suitable for rail or wall mounting and provides a practical solution where multiple auxiliary switching functions are required in a limited panel space.
Key Advantages
- Compact four-pole mini contactor relay for control applications.
- 1NO + 3NC contact configuration provides flexible auxiliary switching.
- 208–220 V AC control supply at 60 Hz for AC control systems.
- Suitable for switching control signals up to 6 A at 240 V AC (AC-15).
- Screw-terminal connections for straightforward electrical installation.
- Suitable for rail or wall mounting in compact control assemblies.
Key Features
- ABB MCRA mini contactor relay range.
- MCRA013ATM product type.
- Four-pole contactor relay.
- 1NO + 3NC auxiliary contact configuration.
- 208–220 V AC rated control circuit voltage at 60 Hz.
- AC-operated control circuit.
- 6 A AC-15 switching capability at 240 V AC.
- 10 A conventional free-air thermal current.
- Suitable for rail or wall mounting.
- Compact 48 × 45 × 56 mm construction.
Compact Control Switching for Electrical Systems
Mini contactor relays such as the ABB MCRA013ATM provide electrically operated auxiliary contacts for switching control signals and small electrical loads. The combination of normally open and normally closed contacts allows several control circuits to be operated from a single compact relay.
The ABB MCRA range combines compact dimensions with reliable switching performance, making these relays suitable for industrial automation, machinery control and building electrical systems where efficient use of panel space is important.
Typical Applications
- Industrial machinery control circuits.
- Automation and control panels.
- Building-control systems.
- Commercial electrical installations.
- Switching of control signals and small electrical loads.
- OEM machinery and compact electrical assemblies.
