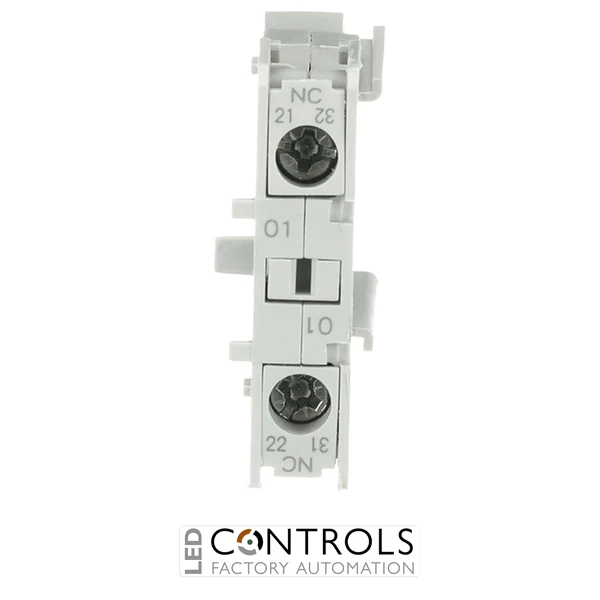

Why Choose the ABB 1SAL100561R9906 Auxiliary Contact Block?
The ABB 1SAL100561R9906 is a compact and reliable auxiliary contact block designed to extend the functionality of ABB mini contactors in industrial control and automation applications. Part of the ABB M mini contactor accessory range, the MACL101AT provides additional switching capability for auxiliary and control circuits where dependable signalling and monitoring are required.
This auxiliary contact block features a space-saving side-mounted design with screw terminal connections, allowing quick integration with compatible ABB MC1 and MC2 mini contactors. It is designed for use in industrial control panels, machinery and automation systems requiring additional auxiliary contacts without increasing the main device footprint.
With a 1 normally closed (NC) auxiliary contact and a 6 A AC-15 rated operational current at 230 V, the ABB 1SAL100561R9906 is ideal for status feedback, interlocking and control circuit switching applications.
Key Advantages
- Compact auxiliary contact block for ABB mini contactors.
- 1NC auxiliary contact configuration for additional control functions.
- Side-mounted clip-on design for simple installation.
- Screw terminal connection for secure and reliable wiring.
- Compatible with ABB MC1 and MC2 mini contactors.
- Reliable ABB accessory technology for industrial automation systems.
Key Features
- ABB MACL101AT auxiliary contact block.
- 1 normally closed (NC) auxiliary contact.
- Side mounting on mini contactors.
- 6 A AC-15 rated operational current at 230 V.
- 4 A AC-15 rated operational current at 400 V.
- EN 50012 compliant contact designation.
- Suitable for auxiliary and control circuit switching.
- Compact construction for electrical panel applications.
Reliable Auxiliary Switching for Industrial Control
Auxiliary contact blocks such as the ABB 1SAL100561R9906 provide additional switching points for contactors, enabling control systems to monitor equipment status, create electrical interlocks and manage auxiliary circuits efficiently.
The ABB M mini contactor accessory range is designed for compact automation systems where reliable signalling, simple installation and efficient use of control panel space are essential. The MACL101AT provides a practical solution for expanding contactor functionality in modern electrical installations.
Typical Applications
- Industrial automation control panels.
- Motor starter and contactor assemblies.
- Machine control systems.
- Electrical cabinets and switchgear.
- Auxiliary status indication circuits.
- OEM machinery and automation equipment.
