Why Choose the ABB 1SAL100576R9901 MC1K310ATD Mini Contactor?

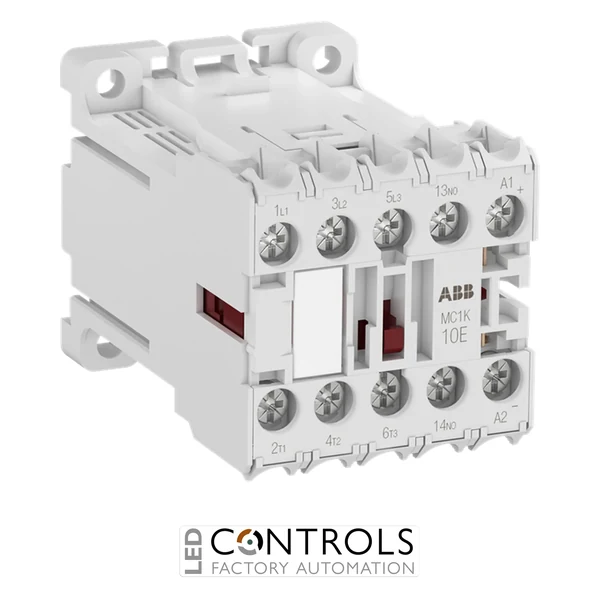

The ABB 1SAL100576R9901, manufacturer model MC1K310ATD, is a compact 3-pole mini contactor designed for reliable switching of motors and other electrical loads where control-panel space is limited. As part of the ABB M mini contactor range, it combines compact dimensions with DC operation for residential, commercial and industrial control applications.
The MC1K310ATD features three normally open main contacts together with one normally open auxiliary contact. Its 24 V DC, 2 W coil provides low-consumption DC operation, making the contactor suitable for automated machinery, control panels and PLC-based switching systems.
With a rated operational power of 4 kW at 400 V AC-3 and a rated operational current of 9 A at 400 V AC-3, the MC1K310ATD is suitable for controlling three-phase motors and other electrical loads. Its compact 48 × 45 × 68 mm housing, screw terminals and support for rail or wall mounting provide straightforward integration into electrical control systems.
Key Advantages
- Compact 3-pole mini contactor designed for space-constrained electrical panels.
- 4 kW motor rating at 400 V AC-3 for three-phase motor control.
- 9 A rated operational current at 400 V AC-3.
- 24 V DC, 2 W coil for low-consumption DC control.
- Integrated 1 NO auxiliary contact for signalling and control functions.
- Flexible rail or wall mounting with screw-terminal connections.
Key Features
- ABB M mini contactor series.
- MC1K310ATD manufacturer model.
- 3 normally open main contacts.
- 1 normally open auxiliary contact.
- 24 V DC control voltage.
- 2 W DC coil consumption.
- 9 A AC-3 operational current at 400 V.
- 4 kW AC-3 motor rating at 400 V.
- 20 A AC-1 operational current at 400 V and 55 °C.
- Screw-terminal electrical connections.
- Suitable for rail or wall mounting.
- Compact 48 × 45 × 68 mm housing.
Compact Motor Control for Industrial Automation
Mini contactors such as the ABB MC1K310ATD provide electrically operated switching of motors and other power loads while occupying less panel space than conventional contactors. The three normally open main contacts enable three-phase loads to be switched simultaneously, while the integrated normally open auxiliary contact can be incorporated into signalling, interlocking and control circuits.
The MC1K310ATD combines a 24 V DC control coil with compact dimensions and screw-terminal connections. Its 4 kW AC-3 rating at 400 V makes it a practical choice for machine builders, panel builders and automation engineers requiring reliable motor switching in compact electrical control systems.
Typical Applications
- Three-phase motor control.
- Industrial machinery and automation systems.
- PLC and electrical control circuits.
- Pumps, fans and ventilation equipment.
- Conveyors and material handling systems.
- Residential, commercial and industrial electrical control panels.
