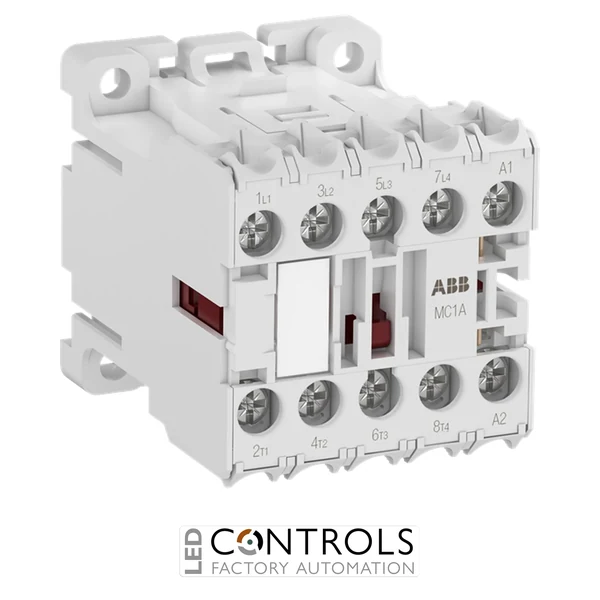

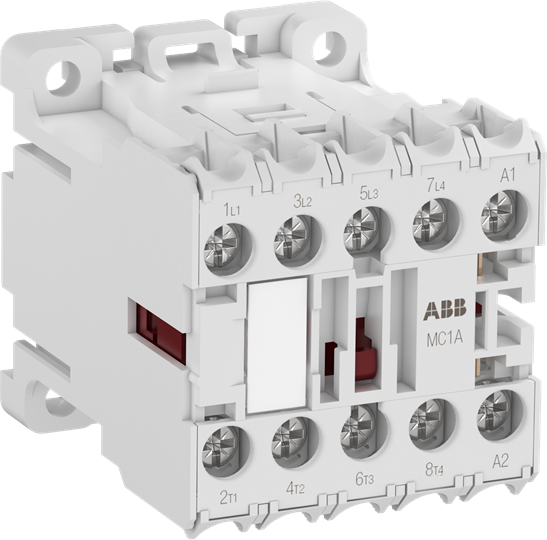

1SAL102167R9901 ABB MC1AA00AR1 Mini Contactor Compact Control Contactor

1SAL102167R9901 ABB MC1AA00AR1 Mini Contactor Compact Control Contactor

ABB 1SAL102167R9901 MC1AA00AR1 mini contactor with a 24 V AC coil and four normally closed contacts for industrial switching applications.

SKU: 1SAL102167R9901Alt SKU: MC1AA00AR1MPN: 1SAL102167R9901
Price
List Price £39.14 ex VAT
Your Price (ex VAT)
£39.14
Manufacturer Lead Time Estimated Delivery 7 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £39.14
Trade pricing is personalised to your account

Manufacturer Lead Time

£39.14

Why Choose the ABB 1SAL102167R9901 MC1AA00AR1 Mini Contactor?

The ABB 1SAL102167R9901 is a compact and reliable mini contactor designed for switching power circuits in industrial automation, machinery and electrical control applications. As part of the ABB M Mini Contactor series, it provides dependable switching performance in space-saving installations where efficient motor and load control is required.

This MC1AA00AR1 mini contactor features a four-pole design with 4 normally closed main contacts and a 24 V AC 50/60 Hz coil. Its compact 45 mm wide construction and reliable screw terminal connections make it suitable for industrial control panels, OEM machinery and automation systems where installation space is limited.

With a rated operational current of 9 A at AC-3 400 V and rated operational power of 4 kW at AC-3 400 V, the ABB MC1AA00AR1 is suitable for motor switching and general industrial power control applications.

Key Advantages

  • Compact ABB mini contactor designed for industrial switching applications.
  • 24 V AC 50/60 Hz coil voltage for common control systems.
  • 4 normally closed main contacts for specialised switching requirements.
  • 4 kW AC-3 motor switching capability at 400 V.
  • Space-saving design for compact electrical panels.
  • Reliable ABB M series construction for industrial applications.

Key Features

  • ABB MC1AA00AR1 mini contactor.
  • M Mini Contactor series.
  • 4-pole contactor design.
  • 4 normally closed main contacts.
  • 24 V AC 50/60 Hz control coil.
  • 9 A AC-3 rated operational current at 400 V.
  • 4 kW AC-3 rated operational power at 400 V.
  • Screw terminal connection system.
  • Compact design for industrial control applications.

Reliable Switching for Compact Industrial Systems

Mini contactors such as the ABB MC1AA00AR1 provide reliable switching of electrical loads while maintaining a compact footprint for modern control systems. Their reduced dimensions make them ideal for machinery and automation installations where panel space is limited.

The ABB 1SAL102167R9901 combines proven electromagnetic switching technology with compact construction, making it suitable for engineers, machine builders and panel manufacturers requiring efficient industrial control solutions.

Typical Applications

  • Industrial automation control panels.
  • Machine building and OEM equipment.
  • Motor switching applications.
  • Electrical control systems.
  • Industrial machinery installations.
  • Compact switching assemblies.

Technical Specifications

Coil Voltage Range 24 V
Power 4 kW
Current 9 A
Manufacturer ABB
Series M Mini Contactors
Model 1SAL102167R9901
Type designation MC1AA00AR1
Product type Mini contactor
Coil / Supply Voltage 24 V AC 50/60 Hz
Voltage type AC operated
Number of poles 4P
Main contact configuration 4 NC
Auxiliary contacts 0 NO / 0 NC
Rated operational current AC-1 at 400 V 20 A
Rated operational current AC-3 at 400 V 9 A
Rated operational power AC-3 at 400 V 4 kW
Rated operational voltage up to 690 V AC
Connection type Screw terminals
Mounting type Panel / DIN rail compatible depending on installation arrangement
Protection rating IP20
Dimensions (H × W × D) approx. 48 × 45 × 56 mm
Weight approx. 0.17 kg
Poles 4-pole
Coil / Supply Voltage 24 V AC
Device Type Mini contactor
Auxiliary Contacts None
Coil Type AC
Current AC-1 20 A

Frequently Asked Questions

What is the ABB 1SAL102167R9901 used for?

The ABB 1SAL102167R9901 is a mini contactor used for switching electrical loads and motor circuits in industrial automation and control applications.

What coil voltage does this mini contactor require?

The ABB MC1AA00AR1 operates with a 24 V AC 50/60 Hz control coil.

How many contacts does the ABB MC1AA00AR1 have?

The contactor has 4 normally closed main contacts and no auxiliary contacts.

What motor power can this contactor switch?

The ABB 1SAL102167R9901 supports applications up to 4 kW AC-3 at 400 V.

Where is this mini contactor typically installed?

The mini contactor is typically installed inside industrial control panels, machinery cabinets and automation systems.
