Why Choose the ABB DB16E Single Mounting Kit?

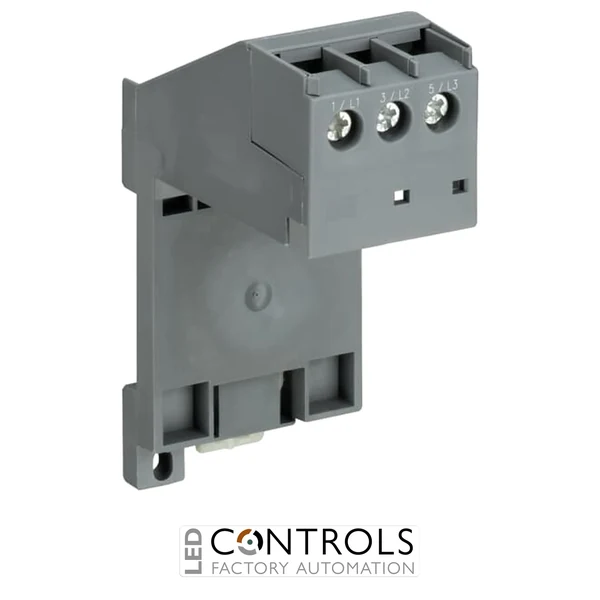

The ABB 1SAX101110R0001 DB16E is a reliable single mounting kit designed for installing ABB E16DU electronic overload relays without a contactor. As part of the ABB electronic overload relay accessory range, it provides a practical solution for standalone mounting of overload protection devices on DIN rails or mounting plates.
This accessory enables flexible panel installation by allowing an E16DU electronic overload relay to be mounted independently rather than directly attached to a contactor. The DB16E helps simplify control panel layouts and provides secure mechanical support for industrial motor protection assemblies.
With a compact design measuring approximately 44.3 mm × 91 mm × 65.2 mm and a lightweight construction of approximately 0.035 kg, the ABB DB16E is suitable for space-efficient industrial control panels operating in demanding environments.
Key Advantages
- Dedicated single mounting solution for ABB E16DU electronic overload relays.
- Allows standalone installation without a contactor.
- Suitable for DIN rail or mounting plate installation.
- Compact design supports efficient control cabinet layouts.
- Robust accessory construction for industrial applications.
- Compliant with recognised industrial equipment standards.
Key Features
- ABB DB16E accessory series.
- Single mounting kit for E16DU electronic overload relays.
- Standalone mounting capability.
- DIN rail and mounting plate compatible design.
- Compact 44.3 mm wide construction.
- Operating temperature range from -25 °C to +70 °C.
- Designed for ABB motor protection systems.
Flexible Installation for Motor Protection Systems
Mounting accessories such as the ABB DB16E provide greater flexibility when designing industrial motor protection panels. By enabling standalone installation of E16DU electronic overload relays, engineers can optimise panel layouts and simplify equipment integration.
The ABB DB16E is designed for industrial control applications where reliable mounting, compact dimensions and compatibility with ABB overload protection equipment are required. It supports efficient installation practices for OEM machinery and automation systems.
Typical Applications
- Industrial motor control panels.
- Standalone electronic overload relay installations.
- OEM machinery control cabinets.
- Industrial automation systems.
- Motor starter assemblies.
- Electrical equipment requiring flexible overload relay mounting.
