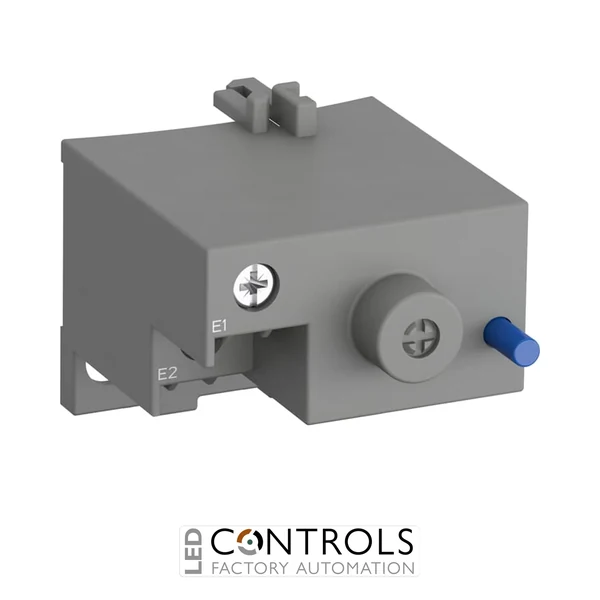

Why Choose the ABB 1SAX101911R1001 DRS-F-01 Remote Reset Coil?
The ABB 1SAX101911R1001 is a reliable remote reset coil accessory designed for ABB thermal and electronic overload relays. Also known as the DRS-F-01 remote reset coil, this accessory enables remote resetting of compatible overload protection devices, improving the flexibility and efficiency of industrial motor protection systems.
This ABB remote reset coil is designed for use with ABB overload relays including TF42, TF65, TF96 and EF series electronic overload relays. It allows overload relays configured for manual reset operation to be reset remotely using a short control pulse, making it suitable for automated control systems and hard-to-access installations.
With a 24–30 V AC/DC supply range, compact dimensions and dedicated ABB compatibility, the 1SAX101911R1001 provides a practical solution for integrating remote reset functionality into industrial motor starters, control panels and automation systems.
Key Advantages
- Purpose-built ABB remote reset coil for overload relay applications.
- 24–30 V AC/DC control supply for flexible integration.
- Enables remote resetting of compatible ABB overload relays.
- Improves automation capability and reduces manual intervention.
- Compact accessory design for efficient control panel installation.
- Compatible with a wide range of ABB TF and EF overload relay families.
Key Features
- ABB DRS-F-01 remote reset coil.
- 24–30 V AC/DC operating voltage.
- Remote reset functionality for overload relays.
- Suitable for ABB TF42, TF65, TF96 and EF overload relays.
- Pulse-operated reset function.
- Compact accessory for motor protection assemblies.
- Designed for ABB low voltage motor control systems.
Reliable Remote Reset for Motor Protection Systems
Remote reset coils such as the ABB 1SAX101911R1001 allow overload protection devices to be reset from a control system without requiring physical access to the electrical panel. This improves machine availability and supports automated fault recovery processes.
The DRS-F-01 is designed for industrial applications where overload relays are installed in enclosed cabinets, machinery systems or locations where manual resetting is inconvenient. It provides a simple method of adding remote reset capability to ABB motor protection solutions.
Typical Applications
- Industrial motor protection systems.
- Automated motor starter assemblies.
- Machine building and OEM equipment.
- Electrical control panels.
- Remote fault reset systems.
- Industrial automation and process control applications.
