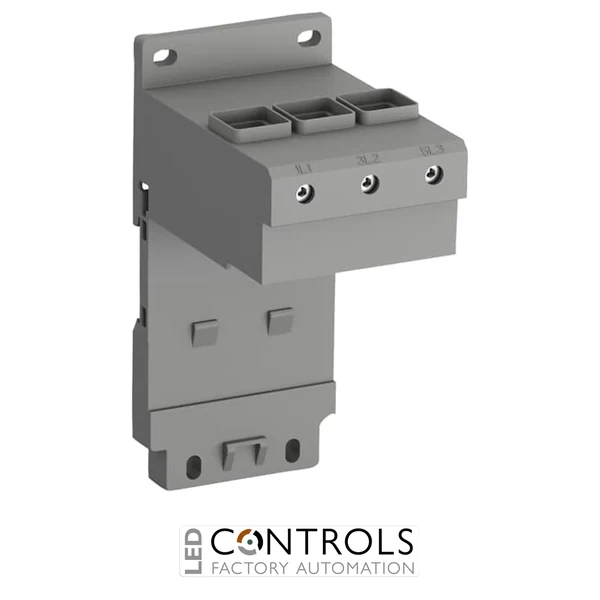

Why Choose the ABB 1SAZ901901R1001 DB96 Single Mounting Kit?
The ABB 1SAZ901901R1001 is a reliable DB96 single mounting kit designed for the standalone installation of ABB TF96 thermal overload relays and EF96 electronic overload relays without a contactor. As part of the ABB motor protection accessory range, it provides a secure and practical mounting solution for industrial control panels and motor starter assemblies.
This mounting accessory allows overload relays to be installed separately on a DIN rail or mounting plate, providing flexibility when designing motor protection systems. Its robust construction and compact dimensions make it suitable for demanding industrial environments where reliable mechanical support is required.
Designed for use with ABB TF96 and EF96 overload relays, the DB96 mounting kit supports applications requiring separate overload relay installation while maintaining a neat and organised electrical panel layout.
Key Advantages
- Dedicated single mounting kit for ABB TF96 and EF96 overload relays.
- Allows standalone installation without a contactor.
- Suitable for DIN rail or mounting plate installation.
- Provides secure mechanical support for motor protection components.
- Compact design for efficient control panel layouts.
- Designed for industrial motor control and protection applications.
Key Features
- ABB DB96 single mounting kit.
- Compatible with TF96 and EF96 overload relays.
- 3-pole mounting configuration.
- IP20 degree of protection.
- DIN rail and mounting plate installation capability.
- High insulation capability for industrial applications.
- Suitable for separate overload relay mounting.
- RoHS compliant construction.
Reliable Mounting for Motor Protection Systems
The ABB DB96 mounting kit provides a dependable method of installing overload relays separately from contactors, helping engineers create flexible and efficient motor protection solutions. It is particularly useful where panel layout requirements or system design considerations require independent overload relay mounting.
By supporting ABB TF96 thermal overload relays and EF96 electronic overload relays, the 1SAZ901901R1001 helps maintain reliable motor protection system integration in industrial automation and electrical distribution applications.
Typical Applications
- Industrial motor protection panels.
- Motor starter assemblies.
- Electrical control cabinets.
- Industrial automation systems.
- Standalone overload relay installations.
- Machine building and process control equipment.
