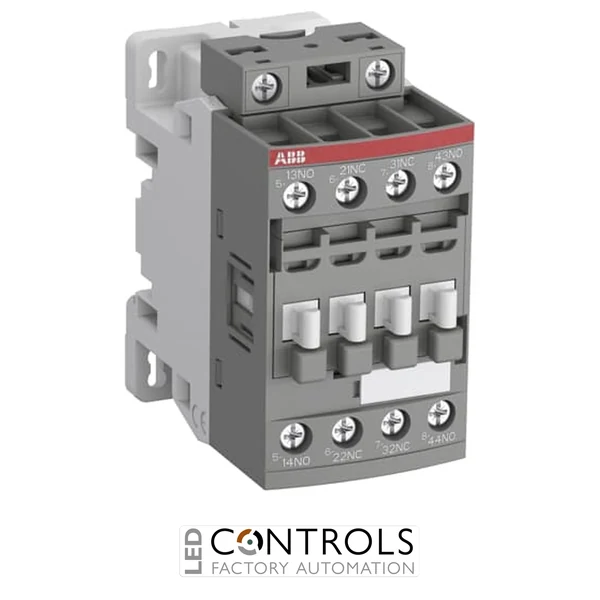

1SBH131001R8122 ABB NFC22E-81 2NO + 2NC Contactor Relay 24V 50/60Hz

1SBH131001R8122 ABB NFC22E-81 2NO + 2NC Contactor Relay 24V 50/60Hz

ABB 1SBH131001R8122 NFC22E-81 contactor relay with 2 normally open and 2 normally closed auxiliary contacts and 24 V AC control coil for industrial automation systems.

SKU: 1SBH131001R8122Alt SKU: NFC22E-81MPN: 1SBH131001R8122
Price
List Price £41.95 ex VAT
Your Price (ex VAT)
£41.95
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £41.95
Trade pricing is personalised to your account

Manufacturer Lead Time

£41.95

Why Choose the ABB 1SBH131001R8122 NFC22E-81 Contactor Relay?

The ABB 1SBH131001R8122 is a compact and reliable NFC22E-81 contactor relay designed for switching and controlling auxiliary circuits in industrial automation, electrical control panels and machine systems. As part of the ABB NFC contactor relay range within the AF platform, it provides dependable electromagnetic operation, optimised switching performance and flexible integration into modern control applications.

This contactor relay features a 4-pole auxiliary contact configuration with 2 normally open and 2 normally closed contacts and screw terminals for secure electrical connections. The block-style design allows straightforward installation and compatibility with ABB AF platform accessories, making it suitable for a wide range of industrial control and automation applications.

With a 24 V AC 50/60 Hz control supply, 16 A conventional free-air thermal current rating and a compact enclosure design, the ABB 1SBH131001R8122 NFC22E-81 is ideal for PLC interface circuits, signalling systems and industrial control applications requiring dependable auxiliary switching.

Key Advantages

  • Compact ABB contactor relay designed for industrial control applications.
  • 2 normally open and 2 normally closed auxiliary contacts for flexible circuit switching.
  • 24 V AC 50/60 Hz coil voltage suitable for industrial control systems.
  • Reliable electromagnetic AC coil operation.
  • Screw terminals provide secure and proven electrical connections.
  • Compatible with ABB AF platform accessories and expansion modules.

Key Features

  • ABB NFC22E-81 contactor relay series.
  • 2 normally open auxiliary contacts.
  • 2 normally closed auxiliary contacts.
  • 24 V AC 50/60 Hz control voltage.
  • 16 A conventional free-air thermal current.
  • 4 A AC-15 rated current at 220–240 V.
  • Screw terminal connection technology.
  • Electromagnetic AC coil operation.
  • DIN rail and screw mounting capability.

Reliable Control Switching for Industrial Automation

Contactor relays such as the ABB NFC22E-81 provide dependable switching of auxiliary and control circuits within industrial electrical systems. They allow automation equipment, PLC systems and machinery control panels to manage electrical signals efficiently while maintaining reliable long-term performance.

The ABB NFC contactor relay range is designed for machine builders, panel manufacturers and automation engineers requiring compact components with robust construction, flexible accessory options and proven electrical reliability.

Typical Applications

  • Industrial automation control panels.
  • Machine building and OEM equipment.
  • PLC interface and signalling circuits.
  • Electrical control and monitoring systems.
  • Industrial switching applications.
  • Automation and process control installations.

Technical Specifications

Coil Voltage Range 24 V
Manufacturer ABB
Series NFC Contactors / AF Platform
Model 1SBH131001R8122
Product type Contactor relay
Alternative designation NFC22E-81
Control voltage 24 V AC 50/60 Hz
Auxiliary contacts 2 normally open + 2 normally closed
Rated operational voltage 690 V AC
Rated operational current AC-15 4 A at 220–240 V
Conventional thermal current 16 A
Rated insulation voltage 690 V
Rated impulse withstand voltage 6 kV
Mounting type DIN rail / screw mounting
Terminal type Screw terminals
Protection rating IP20 auxiliary terminals
Dimensions (H × W × D) approx. 86 × 45 × 77 mm
Weight approx. 0.309 kg
Coil / Supply Voltage 24 V AC
Device Type Contactor relay
Auxiliary Contacts 2NO
Coil Type AC
Current AC-1 16 A

Frequently Asked Questions

What is the ABB 1SBH131001R8122 used for?

The ABB 1SBH131001R8122 NFC22E-81 is a contactor relay used for switching auxiliary and control circuits in industrial automation and electrical control systems.

How many auxiliary contacts does this contactor relay have?

The ABB 1SBH131001R8122 includes 4 auxiliary contacts consisting of 2 normally open and 2 normally closed contacts.

What coil voltage does the ABB 1SBH131001R8122 require?

The contactor relay operates with a 24 V AC 50/60 Hz control supply.

What type of terminals does this contactor relay use?

The ABB 1SBH131001R8122 uses screw terminals for secure electrical connections.

Where is this contactor relay typically installed?

The contactor relay is typically installed inside electrical control panels, machinery cabinets and industrial automation systems.

Trusted by Industrial Automation Professionals

ABB NFC contactor relays are widely used by machine builders and control engineers to deliver reliable auxiliary switching, efficient control integration and dependable performance in modern industrial systems.
