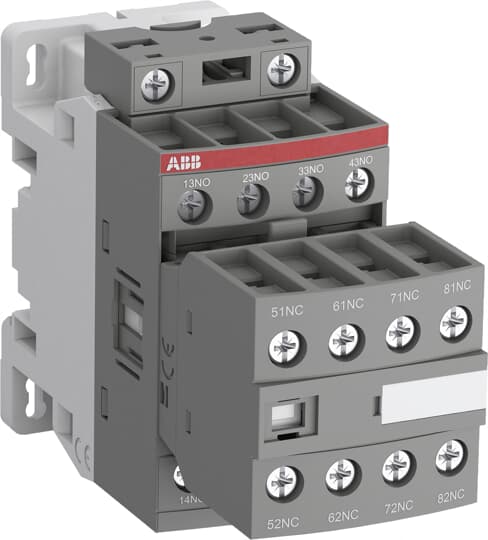

Why Choose the ABB 1SBH131001R8844 NFC44E-88 Contactor Relay?
The ABB 1SBH131001R8844, also known as the NFC44E-88, is an 8-pole AC-operated contactor relay designed for reliable switching of auxiliary and control circuits in industrial automation and electrical control systems. As part of the ABB NFC contactor relay range within the AF platform, it combines mechanically linked auxiliary contacts with optimised operating times for dependable AC-controlled applications.
The NFC44E-88 features 8 auxiliary contacts, comprising 4 normally open (N.O.) and 4 normally closed (N.C.) contacts. Its block-type construction provides a compact solution for control, interlocking, signalling and sequencing functions, while compatibility with ABB add-on auxiliary contact blocks and AF-platform accessories enables straightforward expansion where additional control functions are required.
Designed for an electromagnetic control coil rated at 230–240 V AC at 50 Hz or 240–260 V AC at 60 Hz, the NFC44E-88 integrates easily into industrial AC control circuits. With a 690 V IEC rated operational voltage, screw terminals and a compact 45 mm-wide housing, it is well suited to machinery, automation panels and industrial control equipment.
Key Advantages
- Reliable 8-pole contactor relay for auxiliary and control circuits.
- 4 N.O. + 4 N.C. auxiliary contact configuration provides flexible control options.
- 230–240 V AC 50 Hz / 240–260 V AC 60 Hz control coil.
- Mechanically linked auxiliary contact elements for dependable operation.
- 690 V IEC rated operational voltage for industrial applications.
- Compact 45 mm-wide block-type construction saves panel space.
- Screw terminals provide secure and straightforward field wiring.
- Expandable with compatible ABB AF-platform auxiliary contacts and accessories.
Key Features
- ABB NFC 8-pole contactor relay series.
- NFC44E-88 model for AC-controlled applications.
- 4 normally open + 4 normally closed contacts.
- 8 mechanically linked auxiliary contact elements.
- 230–240 V AC at 50 Hz control voltage.
- 240–260 V AC at 60 Hz control voltage.
- 690 V IEC rated operational voltage.
- 16 A conventional free-air thermal current.
- 4 A AC-15 rated operational current at 220–240 V AC.
- Maximum mechanical switching frequency of 6000 cycles/hour.
- Screw-terminal connections for auxiliary and control circuits.
- Common accessory platform with ABB AF contactors and contactor relays.
Reliable Auxiliary Switching for Industrial Control Systems
Contactor relays such as the ABB NFC44E-88 use an electromagnetic coil to operate multiple auxiliary contacts simultaneously. This allows a control signal to switch several circuits, making the relay suitable for electrical interlocking, control sequencing, signalling and interface functions within industrial machinery and automation systems.
The NFC series is engineered specifically for AC control applications and combines optimised operating times with mechanically linked auxiliary contacts. Its block-type construction, screw terminals and compatibility with the wider ABB AF accessory platform simplify installation and provide flexibility when designing or expanding industrial control panels.
Typical Applications
- Industrial automation and control panels.
- Machine control and sequencing circuits.
- Motor starter auxiliary circuits.
- Electrical interlocking systems.
- PLC and automation interface circuits.
- Process control and signalling equipment.
- Manufacturing and production machinery.
- OEM electrical control systems.
