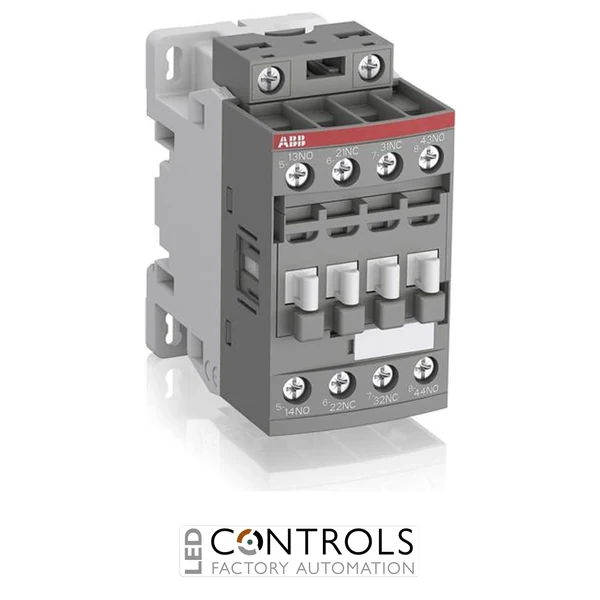

ABB 1SBH137001R1122 NF22E-11 4-pole contactor relay with 2 NO and 2 NC mechanically linked contacts, 24-60 V AC / 20-60 V DC electronic coil and compact DIN rail mounting design for industrial automation applications.
£45.26
The ABB NF22E-11 (1SBH137001R1122) is a compact and highly reliable 4-pole contactor relay designed for switching auxiliary and control circuits in industrial automation systems. As part of the advanced ABB NF contactor relay series, it features ABB's innovative electronic coil technology, allowing a single relay to operate across a wide control voltage range while maintaining dependable performance under fluctuating supply conditions.
The NF series incorporates built-in surge protection, eliminating the need for external suppression devices and simplifying panel design. Its compact construction and DIN rail mounting make installation straightforward while providing long electrical and mechanical service life in demanding industrial environments.
Featuring a 20-60 V AC/DC electronic control coil, 2 normally open and 2 normally closed contacts, and suitability for control circuits up to 690 V, the NF22E-11 is ideal for PLC interfaces, signalling systems, interlocking circuits and industrial control panels.
The ABB NF22E-11 is engineered for dependable switching of auxiliary circuits, PLC interfaces and industrial control systems. Its electronic coil technology enables reliable operation despite supply voltage variations while reducing the need for multiple coil variants across international installations.
The integrated surge suppression protects connected control electronics while simplifying wiring, making the relay an excellent choice for machine builders, panel manufacturers and industrial automation engineers.
| Current | 6 A |
|---|---|
| Voltage | 60 V |
| Phase | Three Phase |
| Series | NF Contactor Relays |
| Product code | 1SBH137001R1122 |
| Product type | Contactor relay |
| Number of poles | 4 |
| Contact configuration | 2 NO + 2 NC |
| Control voltage | 24-60 V AC 50/60 Hz / 20-60 V DC |
| Rated operational voltage | 690 V AC |
| Rated operational current | 6 A |
| Conventional thermal current | 16 A |
| Rated insulation voltage | 690 V IEC / 600 V UL |
| Rated impulse withstand voltage | 6 kV |
| Maximum mechanical switching frequency | 6000 cycles per hour |
| Maximum electrical switching frequency | 1200 cycles per hour AC-15 |
| Mounting type | DIN rail / panel mounting |
| Terminal type | Screw terminals |
| Dimensions (W × H × D) | approx. 45 × 86 × 77 mm |
| Weight | approx. 0.27 kg |
| Standards | IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508 |
It is designed for switching auxiliary and control circuits in industrial automation and electrical control systems.
The NF22E-11 operates from a 20-60 V AC/DC electronic control coil.
This model provides 2 normally open and 2 normally closed contacts.
Yes. The relay features integrated surge suppression, removing the need for external suppression devices.
It is commonly installed in PLC panels, machine control systems, industrial automation equipment and electrical control cabinets.
ABB NF contactor relays are trusted worldwide for dependable auxiliary circuit switching, combining wide voltage capability, integrated protection and reliable long-term industrial performance.
