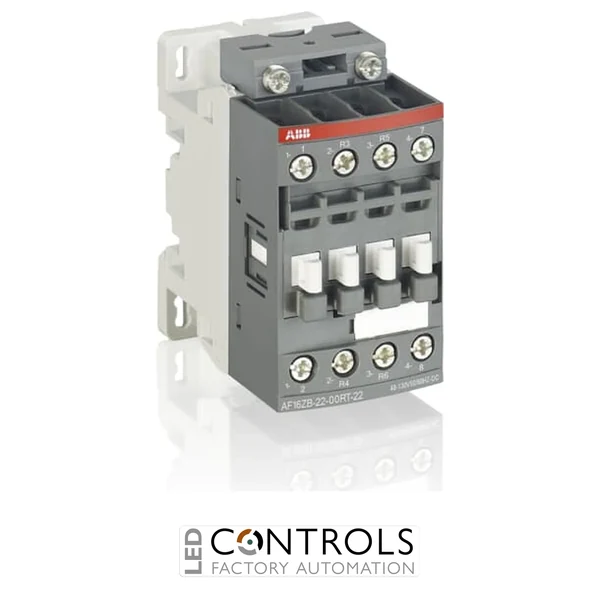

ABB 1SBL136560R2100 AF09ZB-22-00RT-21 is a 4-pole railway and industrial contactor with two normally open and two normally closed main contacts, a 9 A AC-3 rating at 400 V, 4 kW motor capacity and a wide 24–60 V AC / 20–60 V DC electronic coil.
£121.16
The ABB 1SBL136560R2100, also designated AF09ZB-22-00RT-21, is a compact and robust 4-pole contactor developed for railway rolling stock and demanding industrial power-switching applications. As part of the ABB AF contactor range, it features two normally open and two normally closed main contacts, providing a flexible switching arrangement for non-inductive, slightly inductive and motor loads.
The AF09ZB-22-00RT-21 incorporates ABB AF electronic coil technology with a wide 24–60 V AC 50/60 Hz and 20–60 V DC control voltage range. This technology manages significant control-voltage variations, reduces coil energy consumption and provides reliable operation in unstable electrical networks. Integrated surge protection further simplifies installation by eliminating the need for an additional external coil suppressor.
With a rated operational current of 9 A under AC-3 at 400 V, motor switching capability up to 4 kW at 400 V AC and an AC-1 rating of 25 A, the AF09ZB-22-00RT-21 provides dependable switching performance in a compact package. Ring-tongue terminals, enhanced shock and vibration resistance and compliance with key railway standards make it particularly suitable for rolling stock, traction equipment and other demanding electrical installations.
The ABB AF09ZB-22-00RT-21 is engineered for electrically controlled switching where dependable operation is required despite variations in the control supply. Its electronic coil interface accommodates a broad AC and DC voltage range, helping maintain reliable contactor operation while reducing energy consumption compared with conventional electromagnetic coil designs.
This railway-oriented AF contactor is designed to withstand the environmental demands encountered in rolling stock, including shock and vibration in accordance with IEC 61373 category 1 class B. Compliance with relevant railway standards, together with its compact dimensions and high operating temperature capability, makes it suitable for installation in passenger and driver cabins as well as industrial control equipment.
| Manufacturer | ABB |
|---|---|
| Series | AF Contactors |
| Model | AF09ZB-22-00RT-21 |
| Order code | 1SBL136560R2100 |
| Product type | 4-pole power contactor |
| Main contact configuration | 2 NO + 2 NC |
| Auxiliary contacts | 0 NO + 0 NC |
| Rated operational current AC-3 at 380–440 V | 9 A |
| Rated operational current AC-1 at 690 V | 25 A up to 60 °C |
| Rated operational power AC-3 at 400 V | 4 kW |
| Rated operational voltage | up to 690 V IEC |
| Rated insulation voltage | 690 V |
| Control voltage AC | 24–60 V AC, 50/60 Hz |
| Control voltage DC | 20–60 V DC |
| Conventional free-air thermal current | 35 A at 40 °C |
| Rated impulse withstand voltage | 6 kV |
| Terminal type | Ring-tongue terminals |
| Maximum mechanical switching frequency | 3600 cycles per hour |
| Maximum electrical switching frequency AC-1 | 600 cycles per hour |
| Operating ambient temperature | -40 to +70 °C |
| Maximum operating altitude | 3000 m |
| Standards | IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2, EN 50155 and IEC 61373 |
| Dimensions (H × W × D) | 86 × 45 × 77 mm |
| Weight | approx. 0.32 kg |
| EAN / GTIN | 3471523129719 |
The ABB 1SBL136560R2100 is a 4-pole contactor designed for switching motors, power circuits and other electrical loads, with particular suitability for railway rolling stock and demanding industrial applications.
The AF09ZB-22-00RT-21 has four main contacts, comprising two normally open (NO) and two normally closed (NC) contacts.
The electronic coil operates across 24–60 V AC at 50/60 Hz and 20–60 V DC, providing reliable operation across a wide control-voltage range.
The contactor is rated to control motors up to 4 kW at 400 V AC under AC-3 utilisation conditions.
The contactor is designed to meet key rolling-stock requirements, including relevant IEC 60077, EN 50155 and IEC 61373 standards, while providing resistance to shock, vibration and demanding operating temperatures.
ABB AF railway contactors combine wide-range electronic coil technology, compact construction, reduced energy consumption and robust resistance to demanding railway environments, providing dependable switching for rolling stock and industrial electrical systems.
