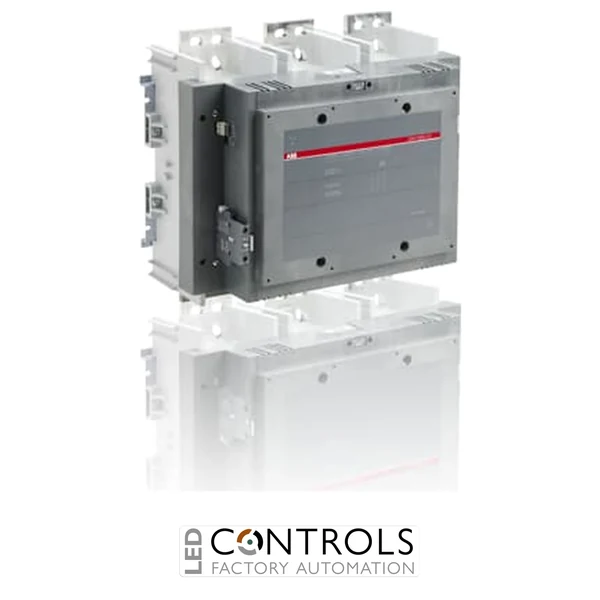

ABB GAF1650-10-11-70 heavy-duty DC-1 contactor rated at 1650 A and 1000 V DC, with a 100–250 V AC/DC electronic coil and integrated 1 NO plus 1 NC auxiliary contacts.
£15,208.64
The ABB GAF1650-10-11-70, order code 1SFL677025R7011, is a heavy-duty DC switching contactor designed for high-current DC-1 applications. Its three physical main poles are connected in series to create a single-pole switching configuration suitable for operational voltages up to 1000 V DC.
Part of the advanced ABB GAF contactor range, this contactor features an electronically controlled coil with a wide 100–250 V AC/DC control voltage range. The electronic coil helps manage control-voltage variations while supporting dependable opening and closing within industrial DC switching systems.
With a rated DC-1 operational current of 1650 A at 40 °C and a conventional free-air thermal current of 1650 A, the GAF1650-10-11-70 is engineered for demanding high-power DC installations. Integrated 1 NO and 1 NC auxiliary contacts provide convenient signalling, feedback and interlocking functions.
DC contactors must interrupt current without the natural zero-crossing found in an AC circuit. The ABB GAF1650-10-11-70 addresses this requirement by connecting its three main poles in series, providing controlled single-pole switching for DC-1 loads at voltages up to 1000 V DC.
Its electronic coil accepts both AC and DC control supplies across a broad voltage range, helping reduce the number of coil variants required within an installation. The integrated auxiliary contacts can provide contactor status feedback or support electrical interlocking and supervisory control circuits.
| Manufacturer | ABB |
|---|---|
| Series | GAF Contactors |
| Model | GAF1650-10-11-70 |
| Order code | 1SFL677025R7011 |
| Product type | DC switching block contactor |
| Utilisation category | DC-1 |
| Physical main poles | 3, connected in series |
| Switching configuration | 1-pole |
| Main contacts | 1 NO |
| Auxiliary contacts | 1 NO + 1 NC |
| Rated operational voltage | 1000 V DC |
| Rated operational current at 40 °C | 1650 A |
| Rated operational current at 55 °C | 1450 A |
| Rated operational current at 70 °C | 1270 A |
| Conventional free-air thermal current | 1650 A |
| Rated control circuit voltage | 100–250 V AC, 50/60 Hz / 100–250 V DC |
| Rated insulation voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Mechanical durability | 0.5 million operations |
| Maximum mechanical switching frequency | 300 cycles per hour |
| Main terminal type | Bars |
| Main terminal protection | IP00 |
| Coil terminal protection | IP20 |
| Operating temperature | −40 to +70 °C |
| Storage temperature | −40 to +70 °C |
| Maximum operating altitude without derating | 3000 m |
| Dimensions (H × W × D) | 392 × 438 × 244 mm |
| Weight | 33 kg |
It is designed for switching high-current DC-1 loads in industrial DC distribution, battery, renewable-energy and power-conversion systems.
Its rated DC-1 operational current is 1650 A at 40 °C, 1450 A at 55 °C and 1270 A at 70 °C.
The contactor supports a rated main-circuit operational voltage of 1000 V DC when all three main poles are connected in series.
The electronic coil operates from 100–250 V AC at 50/60 Hz or 100–250 V DC.
The GAF1650-10-11-70 includes one normally open and one normally closed auxiliary contact for signalling, feedback and interlocking functions.
ABB GAF contactors are used by industrial engineers, panel builders and equipment manufacturers to provide reliable switching and control for demanding high-current DC applications.
