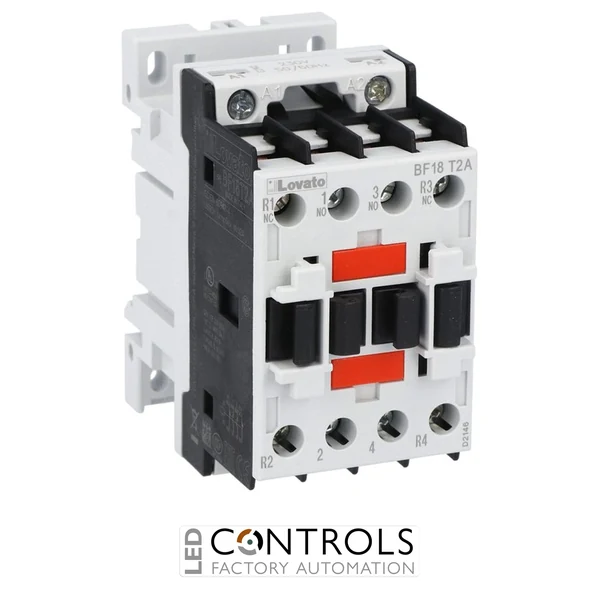

BF18T2A02460 – 4P CONTACTOR 2NO+2NC 32A 24V 60HZ

Q: What coil voltage does the BF18T2A02460 require?

The contactor operates with a 24VAC 60Hz coil.

Q: What is the contact configuration of this Lovato contactor?

The BF18T2A02460 features a 2NO + 2NC four-pole configuration.

Q: What is the current rating of the BF18T2A02460?

The contactor has an IEC AC-1 rating of 32 A and an AC-3 rating of 18 A at 400 V.

Lovato BF18T2A02460 four-pole power contactor with 2NO + 2NC contacts, 32 A AC-1 thermal current rating, 18 A / 7.5 kW AC-3 rating at 400 V, 24 V AC 60 Hz coil, screw terminals and DIN rail or screw mounting for industrial control panels.

SKU: BF18T2A02460MPN: BF18T2A02460

List Price £101.82 ex VAT

Your Price (ex VAT)

£101.82

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £101.82

Trade pricing is personalised to your account

Manufacturer Lead Time

£101.82

Why Choose the Lovato BF18T2A02460 Contactor?

The Lovato BF18T2A02460 is a high-performance four-pole industrial contactor designed for reliable switching and control of motors, machinery and electrical loads in industrial automation systems. Part of the trusted Lovato BF18 contactor series, this model features a 24VAC 60Hz coil and a flexible 2NO + 2NC contact configuration for a wide range of control applications.

Built for demanding industrial environments, the BF18T2A02460 combines compact dimensions with excellent electrical endurance. Its four main poles provide dependable switching performance, making it suitable for OEM machinery, control panels and industrial automation installations where reliable contactor operation is required.

With an IEC AC-1 thermal current rating of 32 A and an AC-3 operational rating of 18 A at 400 V, the Lovato BF18T2A02460 is ideal for motor control, industrial switching and automation applications requiring a robust AC-operated contactor.

Key Advantages

Reliable four-pole industrial contactor for automation and machinery applications.
24VAC 60Hz coil suitable for industrial AC control circuits.
2NO + 2NC contact configuration for flexible switching requirements.
32 A AC-1 rated current for industrial power switching.
18 A AC-3 motor switching capacity at 400 V AC.
DIN rail and screw mounting options for easy installation.

Key Features

Lovato BF18 contactor series.
Four-pole contactor design.
2 normally open and 2 normally closed main contacts.
24VAC 60Hz electromagnetic coil.
IEC AC-1 current rating: 32 A.
IEC AC-3 rating: 18 A at 400 V / 7.5 kW.
Screw terminal electrical connections.
35 mm DIN rail mounting compatibility.

Reliable Switching for Industrial Control Systems

The Lovato BF18T2A02460 provides dependable electrical switching for industrial control systems by allowing automation equipment to safely manage motors and electrical loads. Its 24VAC coil makes it compatible with standard industrial control architectures operating at 60Hz.

The BF18 series delivers long electrical life, compact installation and reliable performance in industrial environments. Its flexible 2NO + 2NC contact arrangement allows integration into a wide variety of machinery and automation applications.

Typical Applications

Industrial motor control panels.
Automation and machine-building systems.
OEM electrical control cabinets.
Industrial switching applications.
Production and processing machinery.
Electrical distribution and control systems.

Technical Specifications

Coil Voltage Range	24 V
Current	18 A
Power	7.5 kW
Voltage	24 V
Phase	Three Phase
Series	BF18
Product type	Four-pole power contactor
Number of poles	4
Main contact configuration	2NO + 2NC
Coil type	AC coil, 60 Hz
Rated coil voltage	24 V AC
AC coil operating range	pick-up 80 to 110% Us, drop-out 20 to 55% Us
AC average coil consumption	75 VA inrush, 9 VA holding at 20 °C
Rated insulation voltage Ui	690 V
Rated impulse withstand voltage Uimp	6 kV
Operational frequency range	25 to 400 Hz
IEC conventional free air thermal current Ith AC-1	32 A at up to 40 °C
AC-1 operating current at up to 40 °C	32 A
AC-1 operating current at up to 55 °C	26 A
AC-1 operating current at up to 70 °C	23 A
IEC operating current Ie AC-3	18 A at up to 440 V and 55 °C
IEC operating current and power at 400 V AC-3	18 A / 7.5 kW
AC-4 operating current at 400 V	8.5 A
AC-1 rated operational power at 230 V	12 kW
AC-1 rated operational power at 400 V	21 kW
AC-1 rated operational power at 500 V	26 kW
AC-1 rated operational power at 690 V	36 kW
Short-time allowable current for 10 seconds	200 A
Recommended IEC fuse protection	32 A gG or 20 A aM
Average resistance per pole	2.5 mΩ
Power dissipation per pole at Ith	2.6 W
UL / CSA horsepower rating at 480 V	10 HP
UL / CSA horsepower rating at 575 / 600 V	15 HP
UL rated operational voltage	600 V AC
Main circuit connection	Screw terminals
Power terminal protection	IP20 when properly wired
Mounting type	Screw fixing or 35 mm DIN rail
Mechanical life	20,000,000 cycles
Electrical life	1,600,000 cycles
Operating temperature	-50 to +70 °C
Storage temperature	-60 to +80 °C
Maximum altitude	3000 m
Approximate weight	356 g
Package quantity	1
Package dimensions	90 x 47 x 86 mm
Package volume	363.78 cm³
EAN	8013975162101
Certifications	CCC, EAC, cULus
Additional approvals	UL 60335-2-40 LZGH A2L, CSA C22.2 No. 60335-2-40:22 LZGH A2L, UL 60335-2-89 LZGH A2L and CSA C22.2 No. 60335-2-89:21 LZGH A2L
Applicable standards	IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 and IEC/EN 60335-2-89
HS Code	85365080
Poles	4-pole
Coil / Supply Voltage	24 V AC
Device Type	Contactor
Coil Type	AC
Current AC-1	32 A

Frequently Asked Questions

What is the Lovato BF18T2A02460 used for?

The Lovato BF18T2A02460 is a four-pole industrial contactor used for switching and controlling electrical loads in automation and industrial systems.

What coil voltage does the BF18T2A02460 require?

The contactor operates with a 24VAC 60Hz coil.

What is the contact configuration of this Lovato contactor?

The BF18T2A02460 features a 2NO + 2NC four-pole configuration.

What is the current rating of the BF18T2A02460?

The contactor has an IEC AC-1 rating of 32 A and an AC-3 rating of 18 A at 400 V.

How is the Lovato BF18T2A02460 mounted?

The contactor supports screw installation and mounting on a standard 35 mm DIN rail.

Trusted by Industrial Automation Professionals

Lovato BF18 contactors are widely used in industrial automation and control systems where reliable switching performance, compact installation and long operational life are required.

Coil Voltage Range	24 V
Current	18 A
Power	7.5 kW
Voltage	24 V
Phase	Three Phase
Series	BF18
Product type	Four-pole power contactor
Number of poles	4
Main contact configuration	2NO + 2NC
Coil type	AC coil, 60 Hz
Rated coil voltage	24 V AC
AC coil operating range	pick-up 80 to 110% Us, drop-out 20 to 55% Us
AC average coil consumption	75 VA inrush, 9 VA holding at 20 °C
Rated insulation voltage Ui	690 V
Rated impulse withstand voltage Uimp	6 kV
Operational frequency range	25 to 400 Hz
IEC conventional free air thermal current Ith AC-1	32 A at up to 40 °C
AC-1 operating current at up to 40 °C	32 A
AC-1 operating current at up to 55 °C	26 A
AC-1 operating current at up to 70 °C	23 A
IEC operating current Ie AC-3	18 A at up to 440 V and 55 °C
IEC operating current and power at 400 V AC-3	18 A / 7.5 kW
AC-4 operating current at 400 V	8.5 A
AC-1 rated operational power at 230 V	12 kW
AC-1 rated operational power at 400 V	21 kW
AC-1 rated operational power at 500 V	26 kW
AC-1 rated operational power at 690 V	36 kW
Short-time allowable current for 10 seconds	200 A
Recommended IEC fuse protection	32 A gG or 20 A aM
Average resistance per pole	2.5 mΩ
Power dissipation per pole at Ith	2.6 W
UL / CSA horsepower rating at 480 V	10 HP
UL / CSA horsepower rating at 575 / 600 V	15 HP
UL rated operational voltage	600 V AC
Main circuit connection	Screw terminals
Power terminal protection	IP20 when properly wired
Mounting type	Screw fixing or 35 mm DIN rail
Mechanical life	20,000,000 cycles
Electrical life	1,600,000 cycles
Operating temperature	-50 to +70 °C
Storage temperature	-60 to +80 °C
Maximum altitude	3000 m
Approximate weight	356 g
Package quantity	1
Package dimensions	90 x 47 x 86 mm
Package volume	363.78 cm³
EAN	8013975162101
Certifications	CCC, EAC, cULus
Additional approvals	UL 60335-2-40 LZGH A2L, CSA C22.2 No. 60335-2-40:22 LZGH A2L, UL 60335-2-89 LZGH A2L and CSA C22.2 No. 60335-2-89:21 LZGH A2L
Applicable standards	IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 and IEC/EN 60335-2-89
HS Code	85365080
Poles	4-pole
Coil / Supply Voltage	24 V AC
Device Type	Contactor
Coil Type	AC
Current AC-1	32 A
