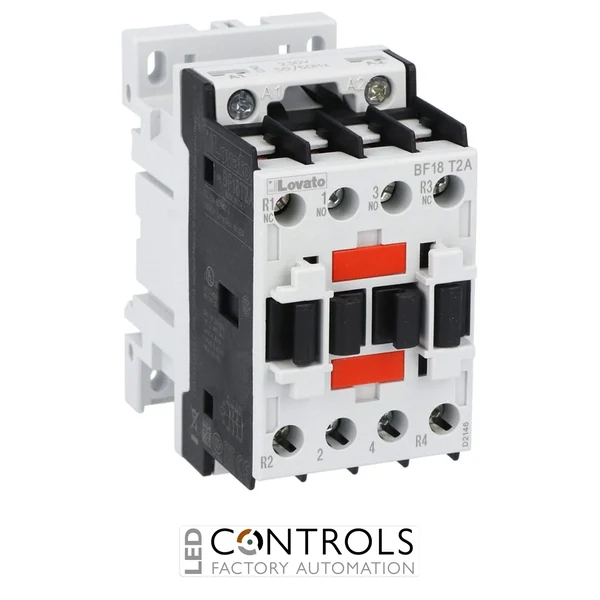

BF18T2A230 – 4P CONTACTOR 2NO+2NC 32A 230V 50/60HZ

Q: What coil voltage does the BF18T2A230 require?

The contactor operates with a 230VAC 50/60Hz coil.

Q: What is the contact configuration of this Lovato contactor?

The BF18T2A230 features a 2NO + 2NC four-pole configuration.

Q: What is the current rating of the BF18T2A230?

The contactor has an IEC AC-1 rating of 32 A and an AC-3 rating of 18 A at 400 V.

Lovato BF18T2A230 four-pole power contactor with 2NO + 2NC contacts, 32 A AC-1 thermal current rating, 18 A / 7.5 kW AC-3 rating at 400 V, 230 V AC 50/60 Hz coil, screw terminals and DIN rail or screw mounting for industrial control panels.

SKU: BF18T2A230MPN: BF18T2A230

List Price £101.82 ex VAT

Your Price (ex VAT)

£101.82

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £101.82

Trade pricing is personalised to your account

Manufacturer Lead Time

£101.82

Why Choose the Lovato BF18T2A230 Contactor?

The Lovato BF18T2A230 is a reliable four-pole industrial contactor designed for efficient switching and control of motors, machinery and electrical loads in industrial automation systems. As part of the trusted Lovato BF18 contactor series, this model features a 230VAC 50/60Hz coil and a flexible 2NO + 2NC contact configuration for versatile industrial control applications.

Built for demanding industrial environments, the BF18T2A230 combines compact construction, high electrical endurance and dependable switching performance. Its four-pole design makes it suitable for OEM machinery, electrical control panels and automation systems requiring reliable contactor operation.

With an IEC AC-1 thermal current rating of 32 A and an AC-3 operational rating of 18 A at 400 V, the Lovato BF18T2A230 is ideal for motor control, industrial switching and automation applications requiring a robust AC-operated contactor.

Key Advantages

Reliable four-pole industrial contactor for automation and machinery applications.
230VAC 50/60Hz coil suitable for industrial AC control circuits.
2NO + 2NC contact configuration for flexible switching requirements.
32 A AC-1 rated current for industrial power switching.
18 A AC-3 motor switching capacity at 400 V AC.
DIN rail and screw mounting options for easy installation.

Key Features

Lovato BF18 contactor series.
Four-pole contactor design.
2 normally open and 2 normally closed main contacts.
230VAC 50/60Hz electromagnetic coil.
IEC AC-1 current rating: 32 A.
IEC AC-3 rating: 18 A at 400 V / 7.5 kW.
Screw terminal electrical connections.
35 mm DIN rail mounting compatibility.

Reliable Switching for Industrial Control Systems

The Lovato BF18T2A230 provides dependable electrical switching for industrial control systems by allowing automation equipment to safely manage motors and electrical loads. Its 230VAC coil design makes it compatible with standard industrial AC control architectures.

The BF18 series delivers reliable operation, compact installation and long mechanical and electrical life. Its flexible 2NO + 2NC contact arrangement allows integration into a wide variety of machinery, OEM systems and industrial automation applications.

Typical Applications

Industrial motor control panels.
Automation and machine-building systems.
OEM electrical control cabinets.
Industrial switching applications.
Production and processing machinery.
Electrical distribution and control systems.

Technical Specifications

Coil Voltage Range	200–250 V
Current	18 A
Power	7.5 kW
Voltage	230 V
Phase	Three Phase
Series	BF18
Product type	Four-pole power contactor
Number of poles	4
Main contact configuration	2NO + 2NC
Coil type	AC coil, 50/60 Hz
Rated coil voltage	230 V AC
Rated insulation voltage Ui	690 V
IEC conventional free air thermal current Ith AC-1	32 A
Rated operation current Ie at AC-1, 400 V	32 A
IEC operating current and power at 400 V AC-3	18 A / 7.5 kW
UL / CSA horsepower rating at 480 V	10 HP
Power rating AC-1	36 kW
Contact voltage rating	690 V
Contact current rating	32 A AC-1
Maximum operating current	18 A AC-3
Auxiliary contacts	none integrated
Main circuit connection	Screw terminals
Terminal type	Screw
Mounting type	Screw fixing or 35 mm DIN rail
Approximate dimensions	81 x 45 x 81 mm
Operating temperature	-50 to +70 °C
Certifications	CCC, EAC, cULus
Additional approvals	UL 60335-2-40 LZGH A2L, CSA C22.2 No. 60335-2-40:22 LZGH A2L, UL 60335-2-89 LZGH A2L and CSA C22.2 No. 60335-2-89:21 LZGH A2L
Applicable standards	IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 and IEC/EN 60335-2-89
HS Code	85365080
Poles	4-pole
Coil / Supply Voltage	230 V AC
Device Type	Contactor
Auxiliary Contacts	None
Coil Type	AC
Current AC-1	32 A

Frequently Asked Questions

What is the Lovato BF18T2A230 used for?

The Lovato BF18T2A230 is a four-pole industrial contactor used for switching and controlling electrical loads in automation and industrial systems.

What coil voltage does the BF18T2A230 require?

The contactor operates with a 230VAC 50/60Hz coil.

What is the contact configuration of this Lovato contactor?

The BF18T2A230 features a 2NO + 2NC four-pole configuration.

What is the current rating of the BF18T2A230?

The contactor has an IEC AC-1 rating of 32 A and an AC-3 rating of 18 A at 400 V.

How is the Lovato BF18T2A230 mounted?

The contactor supports screw installation and mounting on a standard 35 mm DIN rail.

Trusted by Industrial Automation Professionals

Lovato BF18 contactors are widely used in industrial automation and control systems where reliable switching performance, compact installation and long operational life are required.

Coil Voltage Range	200–250 V
Current	18 A
Power	7.5 kW
Voltage	230 V
Phase	Three Phase
Series	BF18
Product type	Four-pole power contactor
Number of poles	4
Main contact configuration	2NO + 2NC
Coil type	AC coil, 50/60 Hz
Rated coil voltage	230 V AC
Rated insulation voltage Ui	690 V
IEC conventional free air thermal current Ith AC-1	32 A
Rated operation current Ie at AC-1, 400 V	32 A
IEC operating current and power at 400 V AC-3	18 A / 7.5 kW
UL / CSA horsepower rating at 480 V	10 HP
Power rating AC-1	36 kW
Contact voltage rating	690 V
Contact current rating	32 A AC-1
Maximum operating current	18 A AC-3
Auxiliary contacts	none integrated
Main circuit connection	Screw terminals
Terminal type	Screw
Mounting type	Screw fixing or 35 mm DIN rail
Approximate dimensions	81 x 45 x 81 mm
Operating temperature	-50 to +70 °C
Certifications	CCC, EAC, cULus
Additional approvals	UL 60335-2-40 LZGH A2L, CSA C22.2 No. 60335-2-40:22 LZGH A2L, UL 60335-2-89 LZGH A2L and CSA C22.2 No. 60335-2-89:21 LZGH A2L
Applicable standards	IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 and IEC/EN 60335-2-89
HS Code	85365080
Poles	4-pole
Coil / Supply Voltage	230 V AC
Device Type	Contactor
Auxiliary Contacts	None
Coil Type	AC
Current AC-1	32 A
