BF2510A12060 - 3P CONTACTOR +1NO 25A AC3 120V 60HZ

BF2510A12060 – 3P CONTACTOR +1NO 25A AC3 120V 60HZ

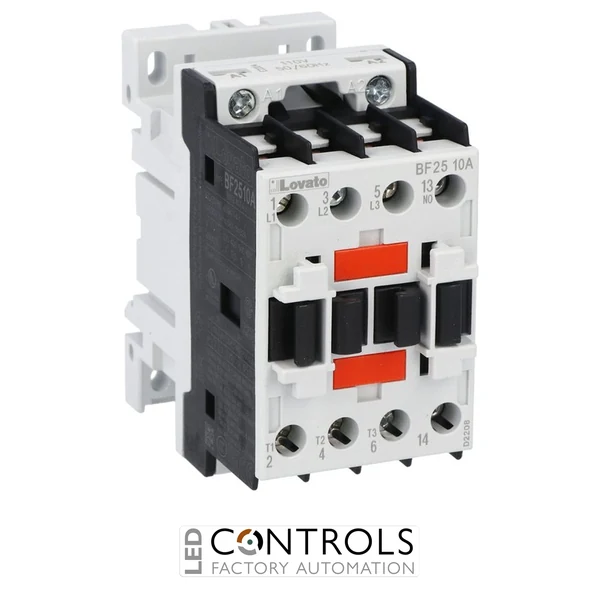

Lovato BF2510A12060 three-pole BF25 contactor with 25 A AC-3 rating at 400 V, 32 A AC-1 thermal current, 120 V AC 60 Hz coil, built-in 1NO auxiliary contact and screw or 35 mm DIN rail mounting.

SKU: BF2510A12060MPN: BF2510A12060
Price
List Price £109.49 ex VAT
Your Price (ex VAT)
£109.49
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £109.49
Trade pricing is personalised to your account

Manufacturer Lead Time

£109.49

Why Choose the Lovato BF2510A12060 Contactor?

The Lovato BF2510A12060 is a reliable and high-performance three-pole industrial contactor designed for switching and controlling motors, machinery and electrical loads in industrial automation applications. Part of the trusted Lovato BF series contactor range, it provides dependable electromagnetic switching, compact installation and long operational life for demanding control systems.

This contactor features an IEC AC-3 operating current rating of 25 A with a 120 VAC 60 Hz AC coil, making it suitable for controlling three-phase motors and industrial equipment. Its built-in auxiliary contact provides additional flexibility for automation circuits, monitoring and control applications.

The BF2510A12060 combines robust construction with simple installation options, supporting both screw mounting and standard 35 mm DIN rail mounting. It is ideal for OEM machinery, electrical panels and industrial motor starter assemblies requiring reliable switching performance.

Key Advantages

  • Reliable Lovato BF series industrial contactor for motor control applications.
  • 25 A AC-3 rated current for three-phase motor switching.
  • 120 VAC 60 Hz AC coil suitable for industrial control circuits.
  • Integrated 1NO auxiliary contact for signalling and control functions.
  • Flexible installation with DIN rail or screw mounting.
  • Designed for long service life in industrial automation environments.

Key Features

  • Lovato BF25 contactor series.
  • Three main power poles.
  • IEC AC-3 current rating: 25 A.
  • IEC AC-1 thermal current rating: 32 A.
  • 120 VAC AC coil at 60 Hz.
  • 1 normally open auxiliary contact.
  • Screw terminal connections.
  • 35 mm DIN rail mounting capability.
  • Compatible with Lovato overload relays and accessories.

Reliable Switching for Industrial Motor Control

The Lovato BF2510A12060 provides efficient electromagnetic switching for industrial motors by controlling high-power circuits through a low-power control signal. This makes it suitable for automated systems where dependable motor starting and stopping are required.

Lovato BF series contactors are engineered for machine builders, panel manufacturers and industrial automation professionals who require compact, durable and easy-to-integrate switching components for modern electrical systems.

Typical Applications

  • Industrial motor starters.
  • Automation and control panels.
  • OEM machinery and production equipment.
  • Pumps, fans and compressors.
  • Material handling systems.
  • Manufacturing and processing machinery.
  • Electrical switching and distribution systems.

Technical Specifications

Coil Voltage Range 100–130 V
Power 12.5 kW
Current 25 A
Voltage 120 V
Phase Three Phase
IP Rating IP20
Series BF Contactors
Product type Three-pole power contactor
Product type designation BF25
Main contact configuration 3NO
Number of poles 3
Built-in auxiliary contact 1NO
Coil type AC coil, 60 Hz
Rated coil voltage 120 V AC
AC coil pick-up voltage 80 to 110% Us
AC coil drop-out voltage 20 to 55% Us
Average coil consumption 75 VA inrush, 9 VA holding
Holding dissipation approximately 2.5 W
IEC thermal current Ith AC-1 at 40 °C 32 A
IEC operating current AC-1 at 40 °C 32 A
IEC operating current AC-1 at 55 °C 26 A
IEC operating current AC-1 at 70 °C 23 A
IEC operating current AC-3 up to 440 V 25 A
IEC operating current AC-4 at 400 V 10 A
Rated operational power AC-3 at 230 V 7 kW
Rated operational power AC-3 at 400 V 12.5 kW
Rated operational power AC-3 at 415 V 13.4 kW
Rated operational power AC-3 at 440 V 13.4 kW
Rated operational power AC-3 at 500 V 15 kW
Rated operational power AC-3 at 690 V 11 kW
Rated operational power AC-1 at 230 V 12 kW
Rated operational power AC-1 at 400 V 21 kW
Rated operational power AC-1 at 500 V 26 kW
Rated operational power AC-1 at 690 V 36 kW
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 6 kV
Protection fuse IEC gG 50 A
Protection fuse IEC aM 25 A
Making capacity 250 A RMS
Breaking capacity at 440 V 200 A
Breaking capacity at 500 V 184 A
Breaking capacity at 690 V 102 A
Resistance per pole approximately 2.5 mΩ
Power dissipation per pole 2.6 W at Ith, 1.6 W at AC-3 duty
Auxiliary contact thermal current Ith 10 A
Auxiliary contact designation A600 - P600
Auxiliary contact AC15 operating current 3 A at 230 V, 1.9 A at 400 V, 1.4 A at 500 V
Auxiliary contact DC13 operating current 5.7 A at 24 V, 2.9 A at 48 V, 2.3 A at 60 V, 1.25 A at 110 V, 1.1 A at 125 V, 0.55 A at 220 V
UL rated operational voltage 600 V AC
UL general use current 32 A
UL auxiliary contact rating A600 - P600
UL / CSA horsepower rating at 110 / 120 V single phase 2 HP
UL / CSA horsepower rating at 230 V single phase 3 HP
UL / CSA horsepower rating at 200 / 208 V three phase 7.5 HP
UL / CSA horsepower rating at 220 / 240 V three phase 7.5 HP
UL / CSA horsepower rating at 460 / 480 V three phase 15 HP
UL / CSA horsepower rating at 575 / 600 V three phase 15 HP
Terminal type Screw terminals
Terminal tightening torque 1.5 to 1.8 Nm
Coil terminal tightening torque 0.8 to 1 Nm
Maximum flexible conductor section without lug 6 mm²
Cable stripping length 10 mm main circuit, 8 mm command circuit
Mounting type Screw fixing or 35 mm DIN rail
Protection rating IP20 when correctly wired
Operating position Vertical plane, allowable inclination ±30°
Operating temperature -50 °C to +70 °C
Storage temperature -60 °C to +80 °C
Maximum altitude 3000 m
Pollution degree 3
Mechanical life 20,000,000 cycles
Electrical life 1,200,000 cycles
Weight 356 g
Package dimensions 90 x 47 x 86 mm
Volume 363.78 cm³
EAN 8013975165133
Certifications CCC, EAC, cULus, UL 60335-2-40, CSA C22.2 n. 60335-2-40, UL 60335-2-89 and CSA C22.2 No. 60335-2-89
Standards IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 n° 60947-1, CSA C22.2 n° 60947-4-1 and IEC/EN 60335-2-89
HS Code 85365080
Poles 3-pole
Coil / Supply Voltage 120 V AC
Device Type Contactor
Auxiliary Contacts 1NO
Coil Type AC
Current AC-1 32 A

Frequently Asked Questions

What is the Lovato BF2510A12060 used for?

The Lovato BF2510A12060 is used for switching and controlling three-phase motors and industrial electrical loads in automation and control systems.

What coil voltage does this contactor use?

The BF2510A12060 uses a 120 VAC AC coil operating at 60 Hz.

What is the current rating of the BF2510A12060?

This contactor has an IEC AC-3 operating current rating of 25 A and an AC-1 thermal current rating of 32 A.

Does this contactor include an auxiliary contact?

Yes, the BF2510A12060 includes a built-in 1 normally open auxiliary contact for control and signalling applications.

Can the BF2510A12060 be installed on DIN rail?

Yes, this contactor supports 35 mm DIN rail mounting as well as screw fixing inside electrical panels.

Trusted by Industrial Automation Professionals

Lovato BF series contactors are widely used in industrial automation and motor control systems to deliver reliable switching, efficient operation and long-lasting performance.
