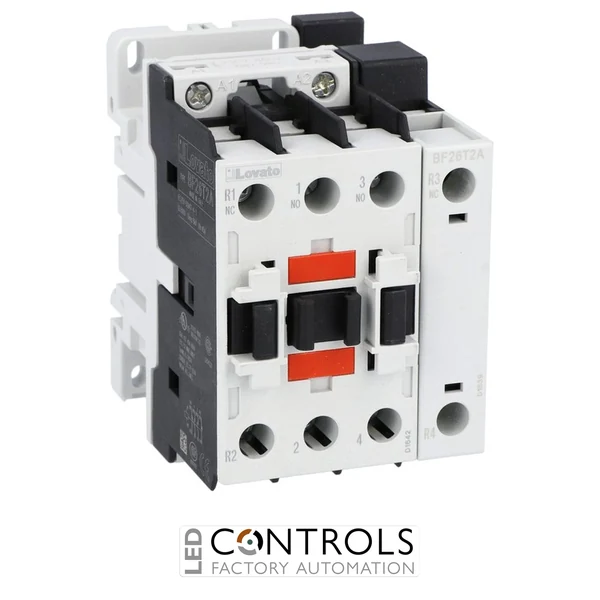

Why Choose the Lovato BF26T2A400 Four-Pole Contactor?
The Lovato BF26T2A400 is a robust four-pole AC power contactor designed for reliable electrical load switching in industrial machinery, control panels and automation systems. As part of the Lovato BF26 contactor series, it features four main poles arranged as 2 normally open (2NO) and 2 normally closed (2NC) contacts.
This contactor provides dependable switching performance with an IEC conventional free-air thermal current Ith rating of 45 A. It also provides an AC-3 rated operational current of 26 A at 400 V, making it suitable for industrial power switching and motor control applications where a four-pole contact arrangement is required.
The BF26T2A400 incorporates a 400 V AC 50/60 Hz coil and can be installed using screw fixing or on a standard 35 mm DIN rail. Its 690 V rated insulation voltage, high mechanical endurance and IP20 terminal protection when properly wired provide robust performance for demanding industrial control installations.
Key Advantages
- Four-pole industrial power contactor for AC switching applications.
- 45 A IEC conventional free-air thermal current Ith.
- 26 A AC-3 rated operational current at 400 V.
- 2NO + 2NC main contact configuration for flexible circuit switching.
- 400 V AC 50/60 Hz coil for compatible industrial control circuits.
- Screw or 35 mm DIN rail mounting for straightforward panel installation.
Key Features
- Lovato BF26 power contactor series.
- Four poles with 2NO and 2NC main contacts.
- 45 A conventional free-air thermal current Ith.
- 26 A AC-3 rated operational current at 400 V.
- 690 V rated insulation voltage.
- 400 V AC 50/60 Hz coil.
- IP20 power terminal protection when properly wired.
- Mechanical life rated at 20,000,000 operating cycles.
- Screw or 35 mm DIN rail mounting.
Reliable Switching for Industrial Control Systems
Power contactors such as the Lovato BF26T2A400 provide electrically controlled switching of power circuits, allowing connected loads to be operated remotely through industrial control systems. Energising the electromagnetic coil changes the state of the main contacts, providing repeatable switching for machinery, motor control and electrical installations.
The BF26T2A400 combines a four-pole 2NO + 2NC arrangement with robust industrial electrical ratings and high mechanical endurance. Its screw or DIN rail mounting options simplify integration into control panels, while the 400 V AC 50/60 Hz coil makes it suitable for control systems operating at this voltage.
Typical Applications
- Industrial machinery and automation systems.
- Electrical control panels and switchboards.
- AC-1 load switching applications.
- Motor control and switching circuits.
- HVAC equipment, pumps and industrial machinery.
- OEM machinery and electrical assemblies.
