Why Choose the Lovato BF26T4D012 Power Contactor?

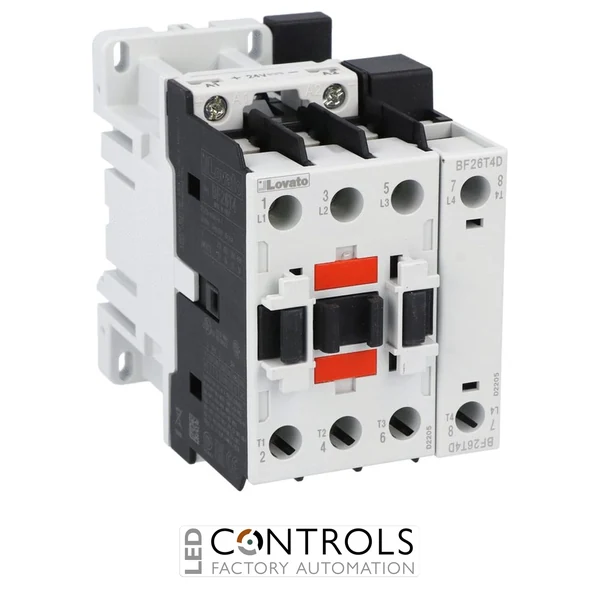

The Lovato BF26T4D012 is a compact and reliable four-pole DC coil power contactor designed for switching and controlling industrial electrical loads. As part of the Lovato BF26 contactor series, it combines four main poles with robust electrical performance for industrial automation, motor control and power switching applications.
This contactor features a 12 V DC coil and supports screw or 35 mm DIN rail mounting, allowing straightforward integration into industrial control panels and machinery. Its four-pole configuration provides coordinated switching for applications requiring multiple power circuits to be controlled simultaneously.
With an IEC conventional free air thermal current of 45 A, an AC-3 operational current of 26 A at up to 440 V and an AC-3 motor power rating of 13 kW at 400 V, the BF26T4D012 provides dependable switching performance for industrial machinery and electrical control systems.
Key Advantages
- Compact four-pole contactor designed for industrial switching applications.
- 45 A AC-1 operational current rating at temperatures up to 40 °C.
- 26 A AC-3 operational current at up to 440 V and 55 °C.
- 13 kW AC-3 motor power rating at 400 V.
- 12 V DC coil for compatible DC control circuits.
- Screw or 35 mm DIN rail mounting for flexible panel installation.
Key Features
- Lovato BF26 contactor series.
- Four main poles.
- 45 A IEC conventional free air thermal current.
- 26 A IEC AC-3 operational current at up to 440 V.
- 12 V DC rated control voltage.
- 690 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- 20,000,000-cycle mechanical life.
Reliable Switching for Industrial Control Systems
Power contactors such as the Lovato BF26T4D012 provide electrically controlled switching for industrial power circuits, allowing motors and other higher-current loads to be operated through a separate control circuit. The four-pole design provides coordinated switching for applications where multiple conductors or circuits need to be controlled together.
The Lovato BF26 series is designed for industrial automation and electrical control applications requiring compact installation and dependable switching performance. The BF26T4D012 combines a 12 V DC control coil with AC-1 and AC-3 ratings suitable for general load switching and motor control systems.
Typical Applications
- Industrial control panels and automation systems.
- Motor starters and motor control circuits.
- Pumps, fans and HVAC equipment.
- Industrial machinery and production equipment.
- Resistive and general-purpose load switching.
- Four-pole electrical switching systems.
