Why Choose the Lovato BF38T2D110 Power Contactor?

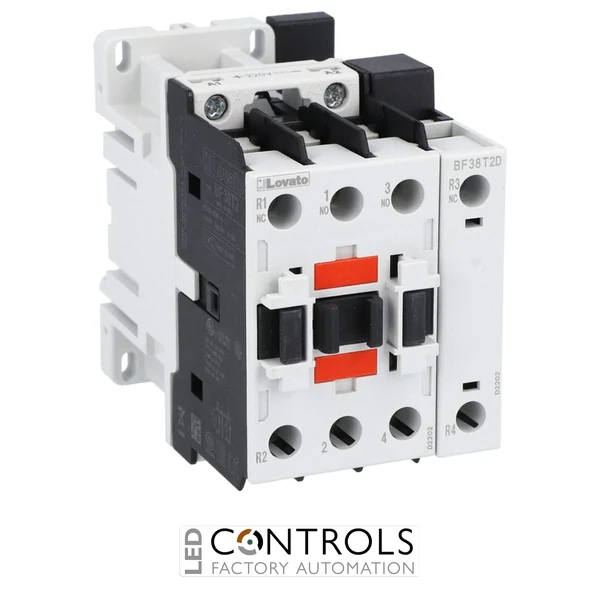

The Lovato BF38T2D110 is a robust four-pole power contactor designed for reliable switching and control in industrial electrical systems. Part of the Lovato BF38 contactor series, this model combines a 110 V DC control coil with a 2NO + 2NC main contact configuration for versatile industrial power control applications.
With an IEC conventional free-air thermal current of 56 A and an AC-3 operational current of 38 A at up to 440 V, the BF38T2D110 provides dependable switching for demanding industrial loads. Its rated insulation voltage of 690 V and rated impulse withstand voltage of 6 kV support integration into professional industrial control and power switching equipment.
The contactor can be installed using screws or on a 35 mm DIN rail, allowing straightforward integration into electrical panels and control cabinets. When properly wired, its power terminals provide IP20 protection, while a mechanical life of 20 million cycles supports applications requiring frequent and dependable switching.
Key Advantages
- Versatile four-pole power contactor for industrial switching applications.
- 2NO + 2NC main contact configuration provides flexible circuit control.
- 110 V DC coil for DC-powered control systems.
- 56 A IEC conventional free-air thermal current.
- 38 A AC-3 operational current at up to 440 V and 55 °C.
- Flexible screw or 35 mm DIN rail mounting simplifies panel installation.
Key Features
- Lovato BF38 power contactor.
- Four poles with 2 normally open and 2 normally closed main contacts.
- 110 V DC rated control voltage.
- 690 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- IP20 power terminal protection when properly wired.
- Operating temperature range of -50 to +70 °C.
- Mechanical life rated at 20,000,000 cycles.
Reliable Switching for Industrial Control Systems
Power contactors provide electrically controlled switching of power circuits, enabling industrial loads to be operated from automation and control systems. The Lovato BF38T2D110 combines a 110 V DC control coil with four main power contacts, providing a practical solution for machinery, electrical control panels and industrial switching systems.
The 2NO + 2NC main contact arrangement provides flexibility where both normally open and normally closed power contacts are required. Its high mechanical endurance, wide operating temperature range and choice of screw or DIN rail mounting support reliable integration into demanding industrial installations.
Typical Applications
- Industrial motor control panels.
- Machinery and automation systems.
- Electrical control cabinets.
- Industrial power switching circuits.
- Resistive load control.
- OEM machinery and industrial equipment.
