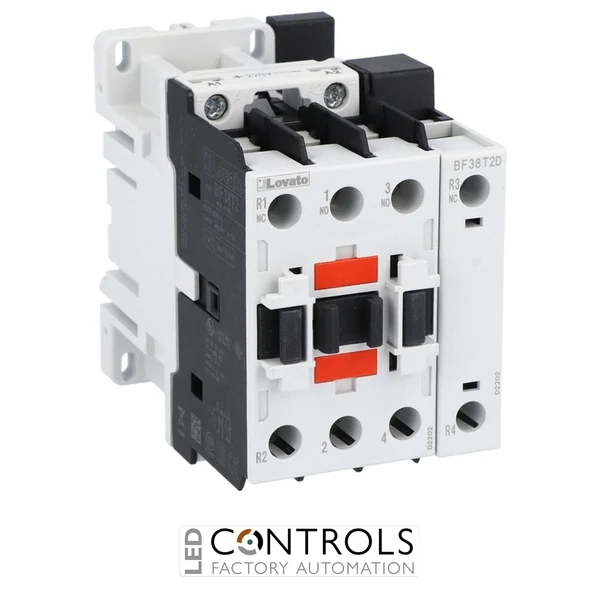

Why Choose the Lovato BF38T2D125 Power Contactor?
The Lovato BF38T2D125 is a robust four-pole power contactor designed for dependable switching in industrial electrical control systems. Part of the Lovato BF38 contactor series, it combines a 125 V DC control coil with a 2NO + 2NC main contact configuration, providing flexible control for motors and other industrial loads.
The BF38T2D125 has an IEC AC-1 current rating of 56 A and an AC-3 rating of 38 A / 18.5 kW at 400 V. These ratings make the contactor suitable for a range of industrial switching duties, including motor control, machinery and automation applications.
Installation is flexible thanks to support for screw fixing or 35 mm DIN rail mounting. The BF38T2D125 also offers a wide operating temperature range of -50 to +70 °C and a mechanical life of up to 20,000,000 cycles, supporting reliable operation in demanding industrial environments.
Key Advantages
- Robust four-pole contactor designed for industrial switching.
- 2NO + 2NC main contact configuration for flexible circuit control.
- 125 V DC coil suitable for DC control circuits.
- 56 A AC-1 current rating for industrial load switching.
- 38 A / 18.5 kW AC-3 rating at 400 V for motor applications.
- Flexible screw or 35 mm DIN rail mounting.
Key Features
- Lovato BF38 contactor series.
- Four main poles with 2 normally open and 2 normally closed contacts.
- 125 V DC rated coil voltage.
- 56 A IEC AC-1 current rating.
- 38 A AC-3 operational current at 400 V.
- 18.5 kW AC-3 operational power at 400 V.
- Operating temperature range of -50 to +70 °C.
- Mechanical life of up to 20,000,000 cycles.
Reliable Switching for Industrial Control Systems
Power contactors provide electrically controlled switching of power circuits, enabling motors and other industrial loads to be operated through automation and control systems. The Lovato BF38T2D125 combines a 125 V DC control coil with four main power contacts, making it suitable for integration into industrial machinery and electrical control panels.
Its 2NO + 2NC main contact arrangement provides both normally open and normally closed switching functions within a single contactor. High mechanical endurance and flexible screw or DIN rail mounting further support installation in professional industrial control systems.
Typical Applications
- Industrial motor starters and control panels.
- Pumps, fans and compressors.
- Machinery and industrial automation systems.
- Resistive load switching.
- Material handling and conveyor equipment.
- OEM machinery and electrical control cabinets.
