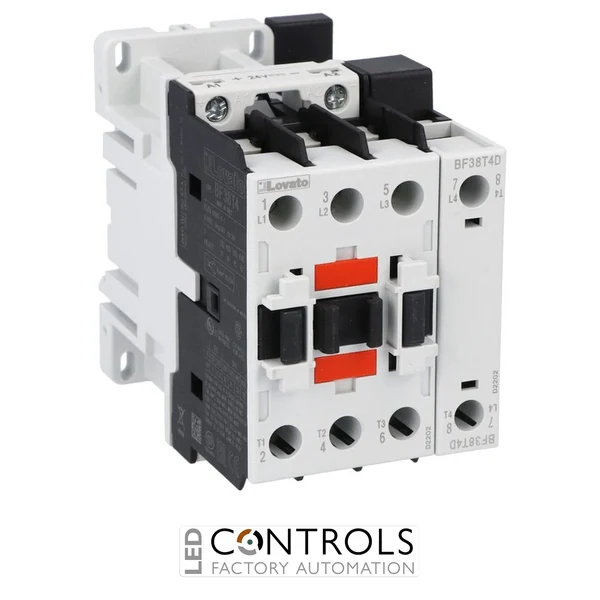

Why Choose the Lovato BF38T4D060 Four-Pole Contactor?
The Lovato BF38T4D060 is a robust four-pole power contactor designed for reliable electrical load switching in industrial machinery, motor control panels and automation systems. As part of the Lovato BF38 contactor series, it features four normally open (4NO) main contacts and a 60 V DC operating coil.
This contactor provides an IEC AC-1 operational current rating of 56 A at 400 V and an AC-3 operational current rating of 38 A at 400 V. Its AC-3 motor power rating is 18.5 kW at 400 V, making it suitable for switching three-phase motors as well as industrial power loads.
The BF38T4D060 incorporates a 60 V DC coil and uses screw terminals for the main electrical circuit. Its DIN rail mounting capability, 690 V insulation voltage and operating temperature range from -50 to 70 °C make it well suited to industrial control panel and machine-building applications.
Key Advantages
- Four-pole industrial power contactor for machinery and automation applications.
- 56 A AC-1 operational current at 400 V.
- 38 A AC-3 operational current at 400 V.
- 18.5 kW AC-3 motor power rating at 400 V.
- Four normally open (4NO) main contacts for four-pole switching.
- 60 V DC coil suitable for DC industrial control systems.
- DIN rail mounting for convenient integration into electrical control panels.
Key Features
- Lovato BF38 contactor series.
- Four normally open main poles.
- 56 A AC-1 operational current at 400 V.
- 38 A AC-3 operational current at 400 V.
- 15.5 A AC-4 operational current at 400 V.
- 18.5 kW AC-3 motor power rating at 400 V.
- 690 V insulation voltage.
- 60 V DC operating coil.
- Screw-terminal main circuit connections.
- DIN rail mounting for industrial control panels.
Reliable Motor and Load Control for Industrial Systems
Power contactors such as the Lovato BF38T4D060 provide electrically controlled switching of power circuits, allowing motors and other electrical loads to be operated remotely through industrial control systems. Energising the contactor coil closes the normally open main contacts, enabling repeatable switching as part of automated machinery and electrical installations.
The BF38T4D060 combines four normally open poles with a 38 A AC-3 rating and an 18.5 kW motor power rating at 400 V. Its 60 V DC coil makes it suitable for DC control systems, while DIN rail mounting and screw terminals simplify integration into industrial electrical panels.
Typical Applications
- Industrial motor starters and control panels.
- Automation and machine control systems.
- Resistive and heating load switching.
- HVAC, pump, fan and compressor control systems.
- Industrial power distribution and switching.
- OEM machinery and electrical assemblies.
