Why Choose the Lovato BF65T4E110 Power Contactor?

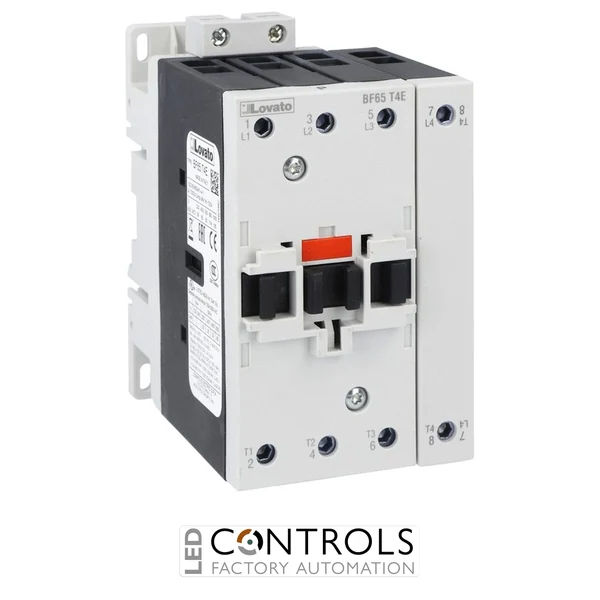

The Lovato BF65T4E110 is a robust four-pole power contactor designed for reliable switching of motors and electrical loads in industrial automation, machinery and control panels. As part of the Lovato BF65 contactor series, it provides an IEC conventional free-air thermal current rating of 100 A and an AC-3 operational current rating of 65 A at up to 440 V.
The BF65T4E110 features a wide-range 60–110 V AC/DC coil, providing flexibility for control systems using either AC or DC control supplies. Its four-pole configuration makes it particularly suitable for applications requiring simultaneous switching of four conductors, while its industrial construction supports dependable operation in demanding electrical installations.
For motor-control applications, the contactor is rated at 65 A / 30 kW at 400 V AC-3. A rated insulation voltage of 1000 V, rated impulse withstand voltage of 8 kV and choice of screw or 35 mm DIN rail mounting make the BF65T4E110 well suited to industrial control cabinets and machinery.
Key Advantages
- Industrial four-pole power contactor for motor and load switching.
- 100 A AC-1 conventional thermal current rating at up to 40°C.
- 65 A AC-3 operational current rating at up to 440 V and 55°C.
- 30 kW motor rating at 400 V AC-3.
- Wide-range 60–110 V AC/DC coil supports flexible control-system design.
- Screw or 35 mm DIN rail mounting simplifies control-panel installation.
Key Features
- Lovato BF65 contactor series.
- Four-pole power contactor.
- 100 A AC-1 rating at up to 40°C.
- 65 A AC-3 rating at up to 440 V and 55°C.
- 30 kW rated operational power at 400 V AC-3.
- 60–110 V AC/DC rated coil voltage.
- 1000 V rated insulation voltage.
- 8 kV rated impulse withstand voltage.
- Screw fixing or 35 mm DIN rail mounting.
Reliable Four-Pole Switching for Industrial Control
Power contactors such as the Lovato BF65T4E110 provide electrically controlled switching for motors and other high-current electrical loads. Energising the contactor coil operates the main contacts, allowing equipment to be controlled remotely as part of motor starters, machinery and automated electrical systems.
The BF65T4E110 combines a four-pole configuration with high AC-1 and AC-3 switching ratings and a wide-range AC/DC coil. This combination provides a versatile solution for industrial control panels where reliable switching, flexible control voltage compatibility and four-pole operation are required.
Typical Applications
- Industrial motor starters and motor control systems.
- Four-pole power and load switching circuits.
- Pumps, fans and ventilation equipment.
- Compressors and processing machinery.
- Conveyors and material handling systems.
- Industrial automation and electrical control panels.
