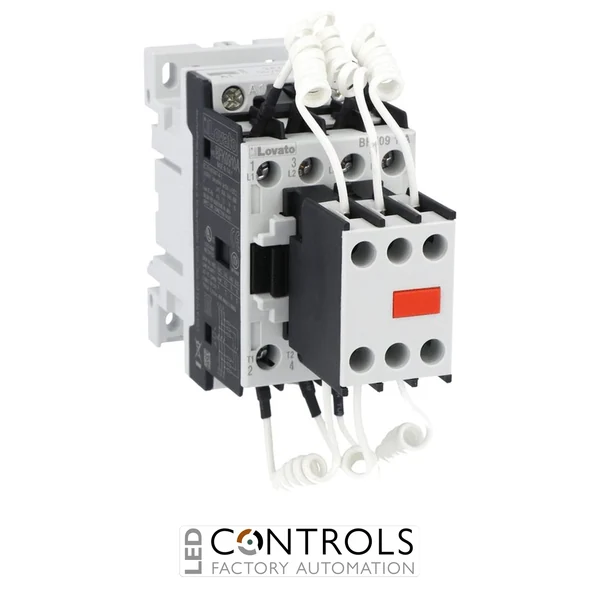

Why Choose the Lovato BFK0910A22060 Power Factor Correction Contactor?
The Lovato BFK0910A22060 is a specialised power factor correction contactor designed for reliable switching of capacitor banks in industrial electrical systems. As part of the Lovato BFK contactor series, it is engineered specifically for automatic reactive power compensation applications where controlled capacitor switching is required.
This contactor features a 220 V AC 60 Hz coil and integrated limiting resistors that help reduce the high inrush currents associated with capacitor energisation. This makes it suitable for automatic power factor correction panels and industrial capacitor bank switching systems.
With a maximum IEC AC-6b operational power rating of 7.5 kvar at 400 V, three main poles and one normally open auxiliary contact, the BFK0910A22060 provides a compact solution for automatic capacitor bank control systems.
Key Advantages
- Dedicated power factor correction contactor for capacitor bank switching.
- 7.5 kvar AC-6b operational power at 400 V for reactive power compensation applications.
- 220 V AC 60 Hz coil suitable for industrial control circuits.
- Integrated limiting resistors help reduce capacitor switching inrush currents.
- Compact design for automatic power factor correction panels.
- Suitable for industrial electrical distribution and energy management systems.
Key Features
- Lovato BFK09 power factor correction contactor series.
- Three main poles.
- One normally open auxiliary contact.
- 220 V AC 60 Hz coil supply.
- 7.5 kvar maximum AC-6b operational power at 400 V.
- 690 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- Designed specifically for capacitor switching applications.
Reliable Capacitor Switching for Industrial Power Systems
Power factor correction contactors such as the Lovato BFK0910A22060 are designed to control capacitor banks used in industrial electrical systems. By switching compensation capacitors safely, they help automatic power factor correction equipment manage reactive power and maintain efficient electrical operation.
The Lovato BFK series provides a dedicated solution for capacitor compensation panels, combining specialised switching technology with integrated inrush current limitation. The BFK0910A22060 is suitable for engineers designing compact and reliable reactive power management systems.
Typical Applications
- Automatic power factor correction panels.
- Industrial capacitor banks.
- Reactive power compensation equipment.
- Electrical distribution systems.
- Industrial energy management installations.
- Factory electrical control systems.
