Why Choose the Lovato BFK1810A048 Power Factor Correction Contactor?

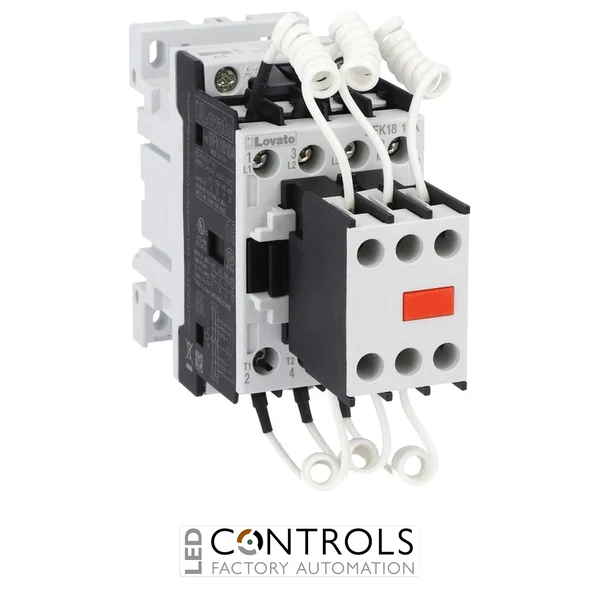

The Lovato BFK1810A048 is a specialised three-pole power factor correction contactor designed for reliable switching of capacitor banks in industrial and commercial electrical installations. As part of the Lovato BFK18 contactor series, it incorporates limiting resistors to reduce the high inrush currents associated with capacitor switching.
The BFK1810A048 provides a maximum IEC AC-6b operational power rating of 15 kvar at 400 V and features a 48 V AC 50/60 Hz coil. Its capacitor-switching design makes it particularly suitable for automatic power factor correction panels where dependable operation and reduced switching stress are required.
With a conventional free-air thermal current of 32 A, rated insulation voltage of 690 V and rated impulse withstand voltage of 6 kV, the BFK1810A048 is engineered for demanding low-voltage installations. Screw fixing or 35 mm DIN rail mounting allows straightforward integration into power factor correction panels and electrical control cabinets.
Key Advantages
- Purpose-designed contactor for power factor correction and capacitor switching.
- 15 kvar IEC AC-6b operational power at 400 V.
- Integrated limiting resistors help control capacitor switching inrush current.
- 48 V AC 50/60 Hz coil for compatible industrial control circuits.
- 32 A conventional free-air thermal current at up to 40°C.
- Flexible screw or 35 mm DIN rail mounting for electrical panel installation.
Key Features
- Lovato BFK18 power factor correction contactor series.
- Three-pole power contactor.
- 15 kvar rated operational power at 400 V AC-6b.
- 48 V AC 50/60 Hz rated coil voltage.
- Integrated limiting resistors for capacitor switching.
- 32 A conventional free-air thermal current.
- 690 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- Screw fixing or 35 mm DIN rail mounting.
Reliable Capacitor Switching for Power Factor Correction
Power factor correction contactors such as the Lovato BFK1810A048 are specifically engineered for switching capacitor banks. Capacitors can produce substantial inrush currents when energised, so the BFK design incorporates limiting resistors that reduce switching stress and help protect components within the power factor correction system.
The BFK1810A048 provides 15 kvar at 400 V AC-6b and is intended for three-phase capacitor switching. Its dedicated construction makes it suitable for automatic power factor correction equipment used to compensate reactive power in industrial and commercial electrical installations.
Typical Applications
- Automatic power factor correction panels.
- Three-phase capacitor bank switching.
- Industrial reactive power compensation systems.
- Commercial electrical distribution installations.
- Power factor correction equipment and control cabinets.
- OEM capacitor switching and compensation systems.
