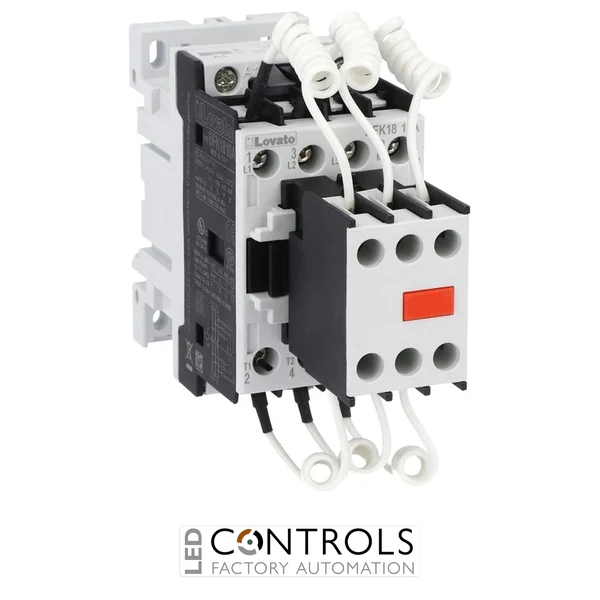

Why Choose the Lovato BFK1810A110 Power Factor Correction Contactor?
The Lovato BFK1810A110 is a specialised three-pole power factor correction contactor designed for reliable switching of capacitor banks in industrial and commercial electrical installations. As part of the Lovato BFK18 contactor series, it is specifically designed for AC-6b capacitor switching duties and incorporates limiting resistors to control the high inrush currents associated with energising capacitors.
The BFK1810A110 provides a maximum IEC operational power rating of 15 kvar at 400 V and features a 110 V AC 50/60 Hz coil. It also incorporates a 1NO auxiliary contact, providing an additional normally open contact for signalling, interlocking or control functions within power factor correction equipment.
With a conventional free-air thermal current of 32 A, rated insulation voltage of 690 V and rated impulse withstand voltage of 6 kV, the BFK1810A110 is engineered for dependable capacitor switching. Screw fixing or 35 mm DIN rail mounting enables straightforward integration into automatic power factor correction panels and electrical control cabinets.
Key Advantages
- Purpose-designed contactor for power factor correction and capacitor switching.
- 15 kvar IEC AC-6b operational power at 400 V.
- Integrated limiting resistors help reduce capacitor switching inrush current.
- 110 V AC 50/60 Hz coil for compatible industrial control circuits.
- Built-in 1NO auxiliary contact for control and signalling functions.
- 32 A conventional free-air thermal current at up to 40°C.
- Flexible screw or 35 mm DIN rail mounting for electrical panel installation.
Key Features
- Lovato BFK18 power factor correction contactor series.
- Three-pole power contactor.
- 15 kvar rated operational power at 400 V AC-6b.
- 110 V AC 50/60 Hz rated coil voltage.
- Integrated limiting resistors for capacitor switching.
- Built-in 1NO auxiliary contact.
- 32 A conventional free-air thermal current.
- 690 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- IP20 power terminal protection when correctly wired.
- Screw fixing or 35 mm DIN rail mounting.
Reliable Capacitor Switching for Power Factor Correction
Power factor correction contactors such as the Lovato BFK1810A110 are specifically engineered for switching capacitor banks. Capacitors can produce substantial transient inrush currents when energised, so the BFK design incorporates limiting resistors that reduce these current peaks and help minimise electrical stress during switching.
The BFK1810A110 provides 15 kvar at 400 V AC-6b and combines dedicated capacitor switching characteristics with a 110 V AC 50/60 Hz coil. Its three-pole design, built-in auxiliary contact and panel-friendly mounting options make it suitable for automatic power factor correction equipment in industrial and commercial installations.
Typical Applications
- Automatic power factor correction panels.
- Three-phase capacitor bank switching.
- Reactive power compensation systems.
- Capacitor switching stages up to 15 kvar at 400 V.
- Industrial and commercial electrical distribution installations.
- OEM power factor correction equipment.
