Why Choose the Lovato BFK2600A024 Power Factor Correction Contactor?

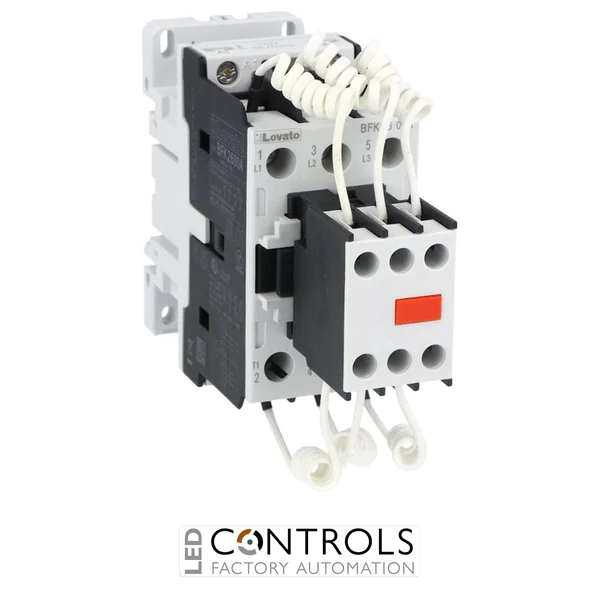

The Lovato BFK2600A024 is a specialised three-pole power factor correction contactor designed for reliable capacitor bank switching in industrial and commercial electrical installations. As part of the Lovato BFK26 contactor series, it is specifically developed for AC-6b capacitor switching duties and incorporates limiting resistors to reduce the high inrush currents associated with energising capacitor stages.
The BFK2600A024 provides an IEC AC-6b operational power rating of 20 kvar at 400 V, with additional ratings of 11 kvar at 230 V, 22 kvar at 440–480 V and 25 kvar at 690 V. Its 24 V AC 50/60 Hz coil makes it suitable for low-voltage AC control circuits commonly used in industrial automation and power factor correction panels.
With a conventional free-air thermal current of 45 A, rated insulation voltage of 690 V and rated impulse withstand voltage of 6 kV, the BFK2600A024 is engineered for dependable electrical performance. Screw fixing or 35 mm DIN rail mounting provides flexible installation within automatic power factor correction panels and electrical control cabinets.
Key Advantages
- Purpose-designed contactor for power factor correction and capacitor switching.
- 20 kvar IEC AC-6b operational power at 400 V.
- Integrated limiting resistors help reduce capacitor switching inrush current.
- 24 V AC 50/60 Hz coil for low-voltage AC control circuits.
- 45 A conventional free-air thermal current at up to 40°C.
- Long 20,000,000-cycle mechanical life.
- Flexible screw or 35 mm DIN rail mounting for panel installation.
Key Features
- Lovato BFK26 power factor correction contactor series.
- Three-pole power contactor.
- 20 kvar rated operational power at 400 V AC-6b.
- 24 V AC 50/60 Hz rated coil voltage.
- Integrated limiting resistors for capacitor switching.
- 45 A conventional free-air thermal current.
- 690 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- 1,600,000-cycle electrical life.
- Screw fixing or 35 mm DIN rail mounting.
Reliable Capacitor Switching for Power Factor Correction
Power factor correction contactors such as the Lovato BFK2600A024 are specifically engineered for switching capacitor stages in reactive power compensation systems. Capacitors can generate substantial transient inrush currents when energised, so the BFK design incorporates limiting resistors that help reduce these current peaks and the resulting electrical stress during switching.
The BFK2600A024 provides 20 kvar at 400 V AC-6b and combines dedicated capacitor switching characteristics with a 24 V AC 50/60 Hz coil. Its three-pole design, high electrical endurance and flexible mounting options make it suitable for automatic power factor correction equipment in demanding industrial and commercial installations.
Typical Applications
- Automatic power factor correction panels.
- Three-phase capacitor bank switching.
- Reactive power compensation systems.
- Capacitor switching stages up to 20 kvar at 400 V.
- Industrial and commercial electrical distribution installations.
- OEM power factor correction equipment.
- Control systems using a 24 V AC supply.
