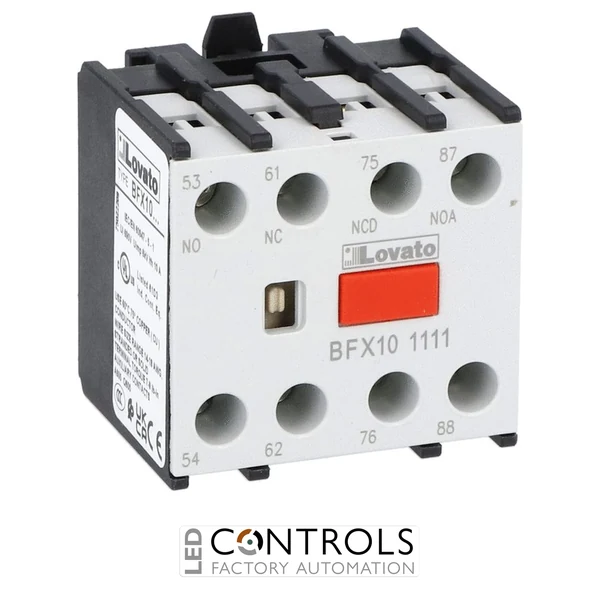

Why Choose the Lovato BFX101111 Auxiliary Contact Block?
The Lovato BFX101111 is a compact auxiliary contact block designed for Lovato BF series contactors, providing additional switching and signalling functions for industrial control systems. Featuring a combined 1NO + 1NC auxiliary contact with 1 early make and 1 late break contact, it supports advanced monitoring and control applications.
Designed for front centre mounting, the BFX101111 provides a simple way to expand the functionality of compatible contactors by adding auxiliary contacts for electrical interlocking, status feedback and automation circuits. Its screw terminal connection allows secure integration into industrial electrical panels.
The BFX101111 is suitable for BF00, BF09 to BF150 series contactors and provides a rated insulation voltage of 690 V. With a 10 A conventional thermal current rating, mechanically linked contact functionality and compact construction, it is suited to demanding industrial control applications.
Key Advantages
- Dedicated auxiliary contact block for Lovato BF series contactors.
- 1NO + 1NC auxiliary contact configuration with additional early make and late break contacts.
- Mirror and mechanically linked contact functions for enhanced safety applications.
- Front centre mounting for easy installation.
- 690 V rated insulation voltage for industrial environments.
- Screw terminal connection for reliable panel wiring.
Key Features
- Lovato BFX10 auxiliary contact series.
- Four-pole auxiliary contact block.
- 1NO + 1NC contact arrangement.
- 1 early make (EM) and 1 late break (LB) contact.
- Mirror and mechanically linked contact function.
- 10 A Ith conventional thermal current.
- 690 V rated insulation voltage Ui.
- 6 kV rated impulse withstand voltage Uimp.
Advanced Auxiliary Switching for Industrial Control
Auxiliary contact blocks provide additional electrical contacts that allow contactors to communicate operating status with automation systems. They are commonly used for signalling, interlocking and safety-related control functions within industrial equipment.
The Lovato BFX101111 extends compatible BF series contactors with additional auxiliary switching capability. Its mirror and mechanically linked contact functions make it suitable for applications where reliable contact monitoring and feedback are required.
Typical Applications
- Industrial motor control panels.
- Automation and machine control systems.
- Electrical interlocking circuits.
- Contactor status monitoring applications.
- Safety-related control circuits.
- Lovato BF series contactor installations.
