Why Choose the ABB GJL1211501R8000 B6-22-00-80 Mini Contactor?

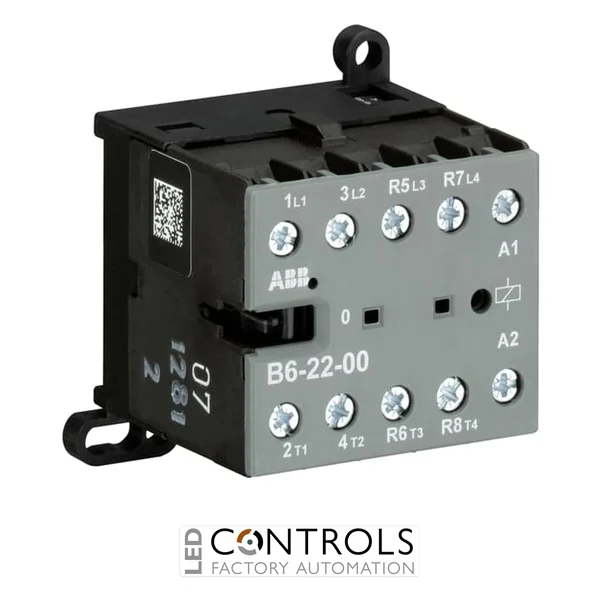

The ABB GJL1211501R8000, also known as the B6-22-00-80, is a compact and reliable 4-pole mini contactor designed for switching electrical loads and control signals in industrial, commercial and building automation applications. As part of the proven ABB B6 mini contactor series, it is particularly suited to installations where dependable switching performance and efficient use of panel space are essential.
This mini contactor features two normally open and two normally closed main contacts (2 NO + 2 NC), a 220–240 V AC control coil and robust screw terminals for straightforward electrical connection. Its compact construction, silent coil and integrated switch position indication make it a practical choice for machinery, control panels and automated equipment.
The B6-22-00-80 can control single-phase and three-phase loads, with a rated operational power of up to 4 kW at 400 V AC-3. It also provides a conventional free-air thermal current of 20 A, a rated insulation voltage of 690 V and mechanical durability of up to 10 million operating cycles, providing dependable performance in frequent switching applications.
Key Advantages
- Compact 4-pole mini contactor designed for space-conscious installations.
- 2 NO + 2 NC main contact configuration provides versatile load and control switching.
- 220–240 V AC control coil suitable for common industrial and commercial control supplies.
- Controls three-phase motors up to 4 kW at 400 V AC-3.
- 20 A conventional free-air thermal current for AC-1 applications.
- Long mechanical durability of up to 10 million operating cycles.
- Compact design with integrated switch position indication and silent coil.
- Flexible DIN rail or wall mounting simplifies panel installation.
Key Features
- ABB B6 mini contactor series.
- Four-pole contactor with 2 NO + 2 NC main contacts.
- 220–240 V AC rated control circuit voltage.
- 20 A conventional free-air thermal current.
- 4 kW AC-3 motor rating at 400 V.
- 690 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- High mechanical durability of 10,000,000 operating cycles.
- IP20 terminal protection.
- Screw terminals for secure electrical connections.
- Compact format suitable for DIN rail and wall mounting.
Reliable Switching for Motors and Electrical Loads
Mini contactors such as the ABB B6-22-00-80 provide electrically operated switching of motors, resistive loads and control circuits. Their compact dimensions allow reliable switching functionality to be incorporated into machinery and electrical panels without requiring the installation space associated with larger conventional contactors.
The B6 series is designed for residential, commercial and industrial applications and can control single-phase or three-phase loads. The GJL1211501R8000 combines a versatile 2 NO + 2 NC contact arrangement with a 220–240 V AC coil, high mechanical endurance and flexible mounting options, making it suitable for both motor switching and general-purpose automation duties.
Typical Applications
- Industrial machinery and automation systems.
- Motor starters and motor control circuits.
- Pumps, fans and ventilation equipment.
- HVAC and building automation systems.
- Industrial and commercial electrical control panels.
- Lighting and resistive load switching.
- Control signal switching and interlocking circuits.
- OEM machinery and compact automation equipment.
