Why Choose the ABB GJL1211509R0001 B6-22-00-P-01 Mini Contactor?

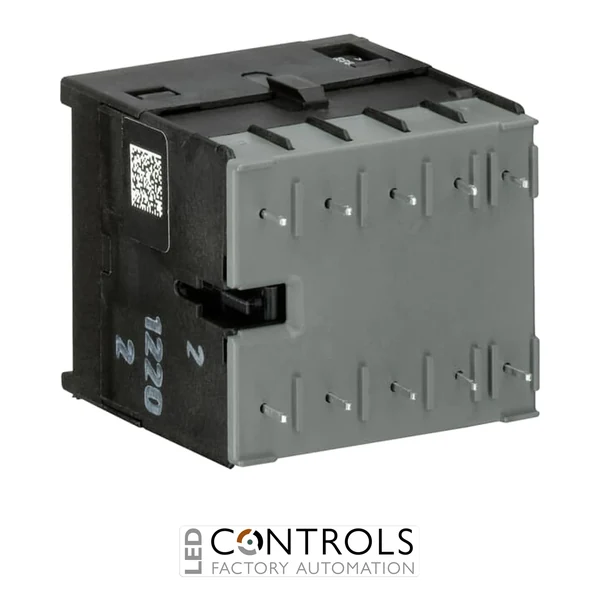

The ABB GJL1211509R0001, also known as the B6-22-00-P-01, is a compact and reliable 4-pole mini contactor designed for switching motors, electrical loads and control signals in industrial, commercial and building automation applications. As part of the proven ABB B6 mini contactor series, it is particularly suited to equipment where dependable switching performance and minimal installation space are important.
This mini contactor features two normally open and two normally closed main contacts (2 NO + 2 NC), a 24 V AC control coil and soldering pin connections for integration into compatible equipment and assemblies. Its compact construction, silent coil and switch position indication make it well suited to OEM machinery, automation equipment and other space-constrained electrical applications.
The B6-22-00-P-01 provides a rated operational current of 9 A at 400 V AC-3 and can control three-phase motors rated up to 4 kW at 400 V AC-3. For AC-1 applications it supports 12 A at 380–440 V, while its compact dimensions of approximately 45.2 × 47.5 × 47.7 mm enable efficient integration into densely populated electrical equipment.
Key Advantages
- Compact 4-pole mini contactor for space-conscious electrical designs.
- 2 NO + 2 NC main contact configuration provides versatile switching functionality.
- 24 V AC control coil suitable for low-voltage industrial control systems.
- Controls three-phase motors up to 4 kW at 400 V AC-3.
- 9 A AC-3 operational current at 400 V for motor switching applications.
- Soldering pin connections support integration into compatible equipment and assemblies.
- Silent coil helps minimise operating noise.
- Integrated switch position indication provides convenient visual status monitoring.
Key Features
- ABB B6 mini contactor series.
- Four-pole design with 2 NO + 2 NC main contacts.
- 24 V AC control coil.
- 40–450 Hz coil frequency range.
- 9 A rated operational current at 400 V AC-3.
- 4 kW rated operational power at 400 V AC-3.
- 12 A rated operational current at 380–440 V AC-1.
- 690 V maximum operational voltage.
- Soldering pin electrical connections.
- Silent coil and integrated switch position indication.
- Compact construction for applications where installation space is limited.
Compact Switching for Motors and Automation Equipment
Mini contactors such as the ABB B6-22-00-P-01 provide electrically operated switching for motors, lightly inductive loads, non-inductive loads and control signals. Their small dimensions make them particularly useful in OEM machinery and compact electrical equipment where conventional contactors would occupy excessive installation space.
The ABB B6 series offers multiple contact, coil and connection configurations to support a broad range of control requirements. The GJL1211509R0001 combines a versatile 2 NO + 2 NC contact arrangement with a 24 V AC coil and soldering pin connections, making it particularly suitable for integration into purpose-built control equipment and industrial automation assemblies.
Typical Applications
- Industrial machinery and automation equipment.
- OEM electrical and electronic assemblies.
- Compact motor control systems.
- Pumps, fans and ventilation equipment.
- Building automation and HVAC systems.
- Single-phase and three-phase load switching.
- Control signal switching and interlocking circuits.
- Space-constrained commercial and industrial equipment.
