Why Choose the ABB GJL1211901R8015 Mini Reversing Contactor?

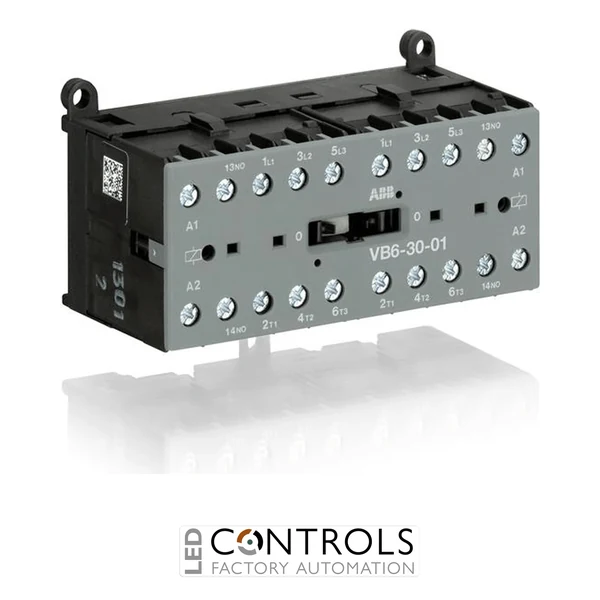

The ABB GJL1211901R8015, also known as the VB6-30-01-85 Mini Reversing Contactor, is a compact and highly reliable mini reversing contactor designed for controlling the forward and reverse operation of three-phase motors in industrial, commercial and building automation applications. As part of ABB's proven VB6 series, it delivers dependable motor control, integrated safety and a space-saving design for modern electrical control panels.
The VB6-30-01-85 features an integrated mechanical interlock, screw terminal connections and a quiet 380 to 415 V AC control coil, eliminating the need for separate mechanical interlock accessories. Its compact design makes it ideal where panel space is limited while maintaining ABB's renowned reliability and long electrical service life.
Suitable for controlling three-phase motors up to 4 kW (AC-3), the ABB GJL1211901R8015 is widely used in conveyors, ventilation systems, pumps, packaging machinery and industrial automation equipment. The unit supports both DIN rail and wall mounting, providing maximum installation flexibility.
Key Advantages
- Compact mini reversing contactor for industrial motor control.
- Suitable for motors up to 4 kW (AC-3).
- 380 to 415 V AC silent operating coil.
- Integrated mechanical interlock for safe motor reversing.
- 3 NO main contacts and 1 NC auxiliary contact.
- DIN rail or wall mounting for flexible installation.
- Reliable ABB switching technology for demanding industrial environments.
Key Features
- ABB VB6 Mini Reversing Contactor series.
- Product ID: GJL1211901R8015.
- Extended type: VB6-30-01-85.
- Rated motor power: 4 kW (AC-3).
- 380 to 415 V AC control voltage (40 to 450 Hz).
- 20 A AC-1 rated operational current.
- 8.5 A AC-3 rated operational current at 400 V.
- 3 normally open main contacts.
- 1 normally closed auxiliary contact.
- Screw terminal connections.
- Integrated mechanical interlock.
- DIN rail and wall mounting.
- Switch position indication.
Reliable Motor Reversing for Industrial Machinery
Mini reversing contactors provide safe forward and reverse control of three-phase motors using mechanically interlocked contactors that prevent simultaneous operation. This arrangement improves operational safety while ensuring dependable motor control in industrial automation systems.
The ABB VB6 series is engineered for compact installation, reliable switching performance and long mechanical life. Its integrated safety features and flexible mounting options make it an excellent choice for machine builders, panel manufacturers and maintenance engineers.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and ventilation equipment.
- Packaging and production machinery.
- Machine tools and manufacturing equipment.
- Lifting and positioning systems.
- OEM electrical control panels.
- Commercial and industrial automation systems.
