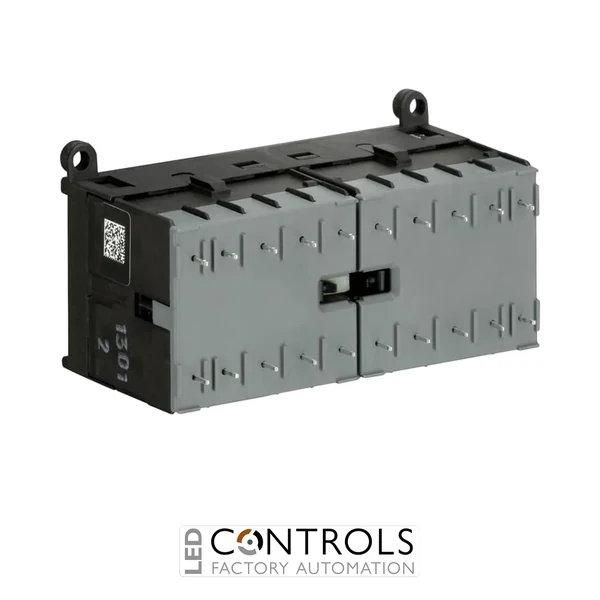

Why Choose the ABB GJL1211909R0013 VB6-30-01-P-03 Mini Reversing Contactor?
The ABB GJL1211909R0013, also known as the VB6-30-01-P-03, is a compact and reliable 3-pole mini reversing contactor designed for forward and reverse control of three-phase motors in industrial machinery and automation systems. As part of the ABB VB6 mini reversing contactor series, it combines two mechanically interlocked contactors in a space-saving assembly for dependable directional motor control.
This reversing contactor features three normally open main contacts (3 NO), one normally closed auxiliary contact (1 NC), a 48 V AC control coil and soldering pin connections. The mechanically interlocked design prevents conflicting forward and reverse operation, while the compact format makes it particularly suitable for OEM machinery and control equipment where available installation space is limited.
With a rated operational power of 4 kW at 400 V AC-3 and a rated operational current of 9 A at 400 V AC-3, the VB6-30-01-P-03 provides effective directional control for compact three-phase motor applications. Its AC-1 current rating of 12 A and maximum operational voltage of 690 V AC further support reliable operation across a broad range of industrial control applications.
Key Advantages
- Compact mini reversing contactor for forward and reverse motor control.
- Three normally open main contacts for three-phase motor switching.
- Integrated 1 NC auxiliary contact for signalling, interlocking and control functions.
- 48 V AC control coil suitable for low-voltage industrial control systems.
- Controls three-phase motors up to 4 kW at 400 V AC-3.
- 9 A rated operational current at 400 V AC-3.
- Mechanical interlocking prevents simultaneous forward and reverse operation.
- Soldering pin connections support compact equipment and PCB integration.
Key Features
- ABB VB6 mini reversing contactor series.
- VB6-30-01-P-03 model.
- 3 NO main contact configuration.
- 1 NC auxiliary contact.
- 48 V AC rated control circuit voltage.
- 9 A rated operational current at 400 V AC-3.
- 4 kW rated operational power at 400 V AC-3.
- 12 A AC-1 rated operational current at 220–440 V.
- 690 V maximum operational voltage.
- Mechanical interlocking between forward and reverse contactors.
- Soldering pin electrical connections.
- Compact construction for space-constrained control equipment.
Reliable Forward and Reverse Motor Control
Reversing contactors such as the ABB VB6-30-01-P-03 control the direction of a three-phase motor by changing the phase sequence supplied to the motor. The mechanically interlocked forward and reverse contactors prevent opposing switching states from being activated simultaneously, providing dependable directional control for automated machinery and motor-driven equipment.
The ABB VB6 series is designed for applications requiring compact dimensions and flexible electrical connection options. The GJL1211909R0013 combines a 48 V AC control coil, three normally open main contacts, a normally closed auxiliary contact and soldering pin connections, making it particularly suitable for OEM equipment and purpose-built automation assemblies requiring reliable reversing control.
Typical Applications
- Forward and reverse control of three-phase motors.
- Industrial conveyors and material handling systems.
- Doors, gates and shutter control systems.
- Hoisting and positioning equipment.
- Packaging and production machinery.
- Machine tools and automated equipment.
- OEM electrical and automation assemblies.
- Compact motor control systems.
