Why Choose the ABB BC6-30-10-P-01 Mini Contactor?

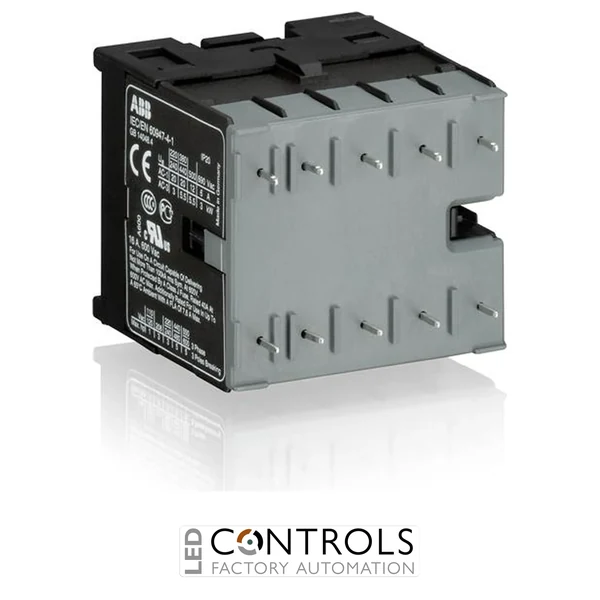

The ABB BC6-30-10-P-01 (SKU: GJL1213009R0101) is a compact and highly reliable 3-pole mini contactor with solder pin terminals designed for switching motors and electrical loads in industrial automation, commercial installations and OEM machinery. As part of the trusted ABB BC6 mini contactor series, it delivers dependable switching performance while allowing direct PCB mounting for space-saving control system designs.
Designed for machine builders, electronics manufacturers and panel builders, the BC6-30-10-P-01 features solder pin connections, a quiet and hum-free 24 V DC operating coil, integrated switch position indication and a compact footprint for printed circuit board applications. Its robust construction ensures long service life in demanding industrial environments.
Featuring 3 normally open (NO) main contacts and 1 integrated normally open auxiliary contact, the BC6-30-10-P-01 is suitable for switching three-phase motors up to 4 kW (AC-3) and electrical loads up to 20 A (AC-1), making it ideal for compact automation equipment and industrial control electronics.
Key Advantages
- Compact ABB mini contactor with solder pin terminals.
- 24 V DC operating coil with quiet, hum-free performance.
- 3 NO main contacts with 1 integrated NO auxiliary contact.
- Suitable for switching motors up to 4 kW (AC-3).
- PCB mounting simplifies compact equipment design.
- Reliable switching performance for industrial automation.
Key Features
- ABB BC6 Mini Contactor series.
- Product ID: GJL1213009R0101.
- 24 V DC operating coil.
- Solder pin terminal connections.
- 3 normally open (3 NO) main contacts.
- 1 integrated normally open auxiliary contact.
- Switch position indicator.
- PCB mounting for compact equipment.
- Long mechanical and electrical service life.
Reliable Switching for PCB-Based Control Systems
The ABB BC6-30-10-P-01 mini contactor is designed for dependable switching of motors, pumps, fans, compressors and other electrical loads within compact automation equipment. Its solder pin terminals allow direct integration onto printed circuit boards while maintaining excellent electrical performance and long operational life.
The BC6 series is widely specified by OEMs and industrial equipment manufacturers thanks to its compact dimensions, reliable switching characteristics and suitability for demanding industrial environments.
Typical Applications
- PCB-based industrial control systems.
- Machine building and OEM equipment.
- Motor starters and compact controllers.
- HVAC control equipment.
- Pumps, compressors and conveyor systems.
- Industrial automation electronics.
